 Please, notice the Cam Lock has a "C" -Shaped back. Insert
the Cam Lock so the opening of the "C" fits over the head
of the Cam Bolt
 Use a flat screwdriver to turn the Cam Lock clockwise on
half a turn so it locks onto the head of the Cam Bolt
Caution:
 Turn only until it is snug - over-tightening could cause the
Cam to bend or break.
Instructions:

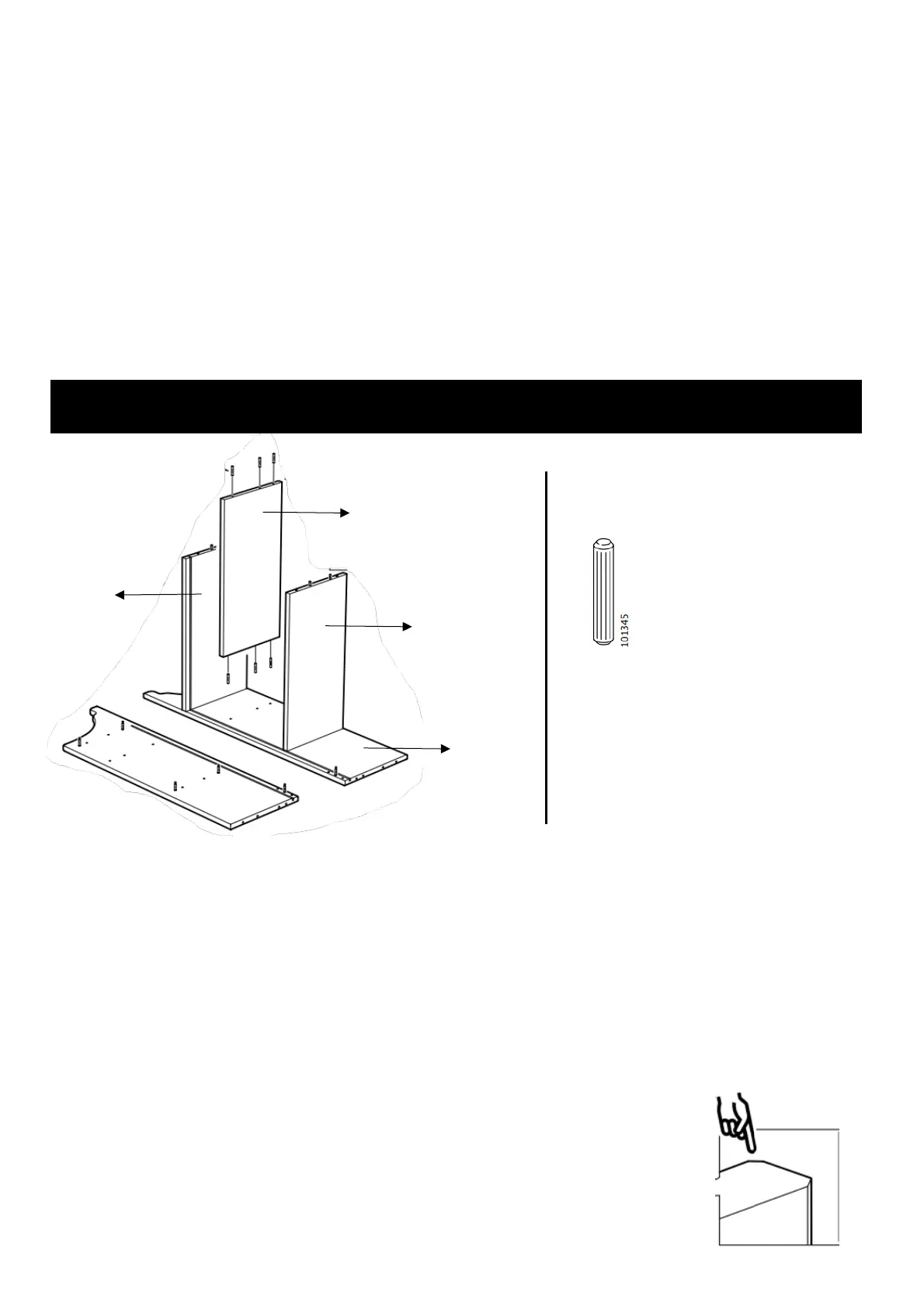

 Insert 3 wood dowels into the Left Side Panel (A) holes
(middle of the panel)
 Carefully push the Second Inner Panel (E) onto the dowels
 Insert 3 wood dowels into the Second Inner Panel (E) holes
Caution:
 Make sure the bevelled edges of the Second Inner
Panel (E) will ultimately face the room and not
the inside of the furniture.
Step 5
You will need :
6x
A
Left Side Panel
D
First Inner Panel
C
Bottom Panel
E
Second Inner Panel
