IKEA TORNVIKEN User Manual

13
Instructions:

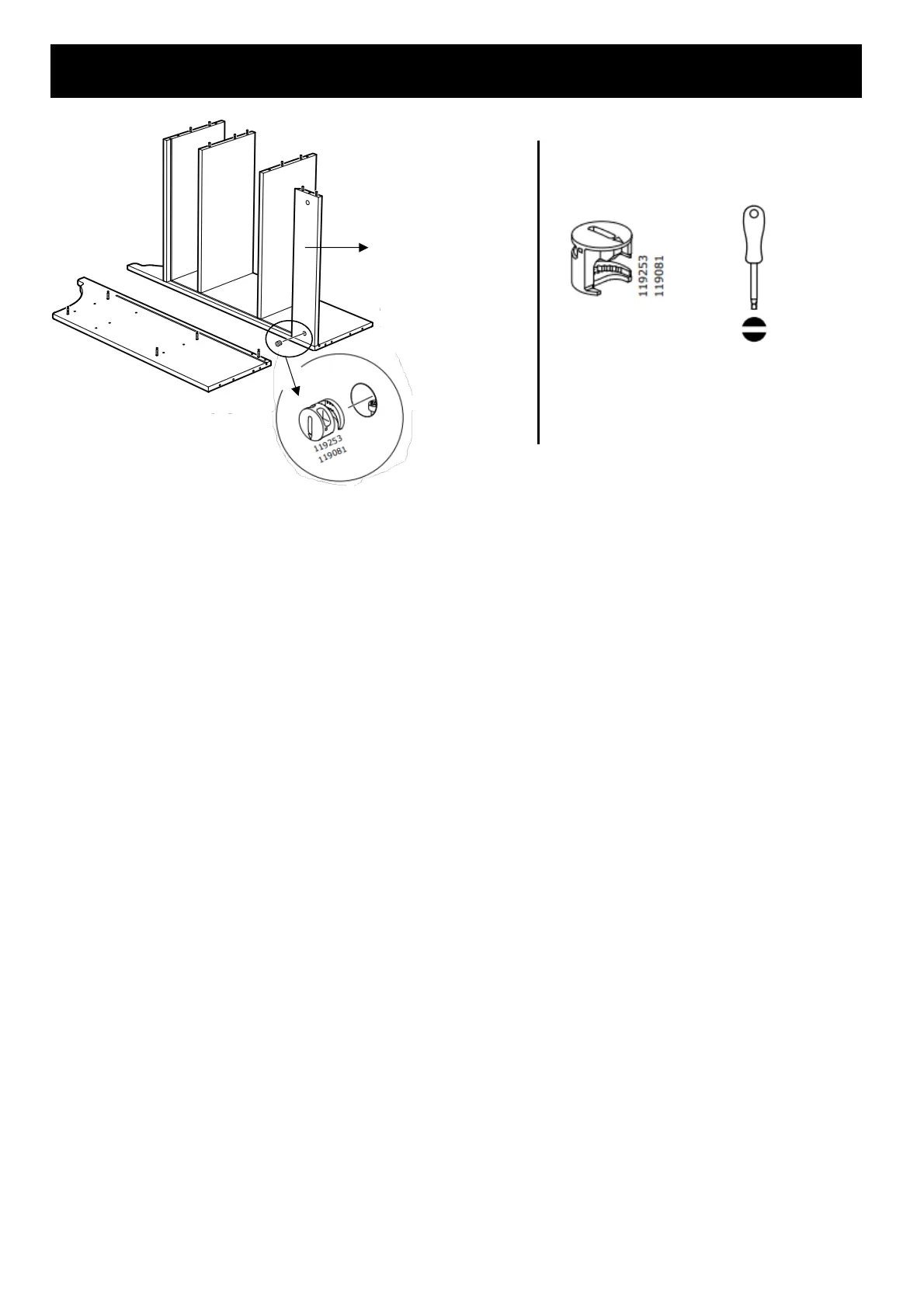

 Insert the Cam Lock into the large hole on the Support
Board (F) (the closest hole to the floor)
 Please, notice the Cam Lock has a "C"-shaped back
 Insert the Cam Lock so the opening of the "C" fits over the
head of the Cam Bolt
 Use a flat screwdriver to turn the Cam Lock clockwise on
half a turn so it locks onto the head of the Cam Bolt
Caution:
 Turn only until it is snug - over-tightening could cause the
Cam to bend or break.
Step 7
You will need :
1x
F
Support Board
