DRAWER 150L-12V
ENGLISH
DRAWER 150L-12V_rev.04_03-2014 11
WIRING SYSTEM
To operate the refrigerator on the vehicle battery , please refer to the instruction manual of the vehicle's
manufacturer.
WIRING SYSTEM: FUNCTIONS AND FEATURES (WITH AUXILIARY BATTERY)
The electronic control unit of the compressor is an electronic equipment which controls the motor of the
compressor, takes care about the system and protects the electrical components.
Its main features are the following:
Protection of the battery with automatic turning off of the compressor when the supply voltage reaches the
minimum threshold (cut out)
The compressor will start up automatically again when the voltage goes back to normal values (cut in).
TABLE FOR BATTERY SAVER TRIPPING VOLTAGES
FEEDING CUT OUT CUT IN
12 V 9,5 V 11 V

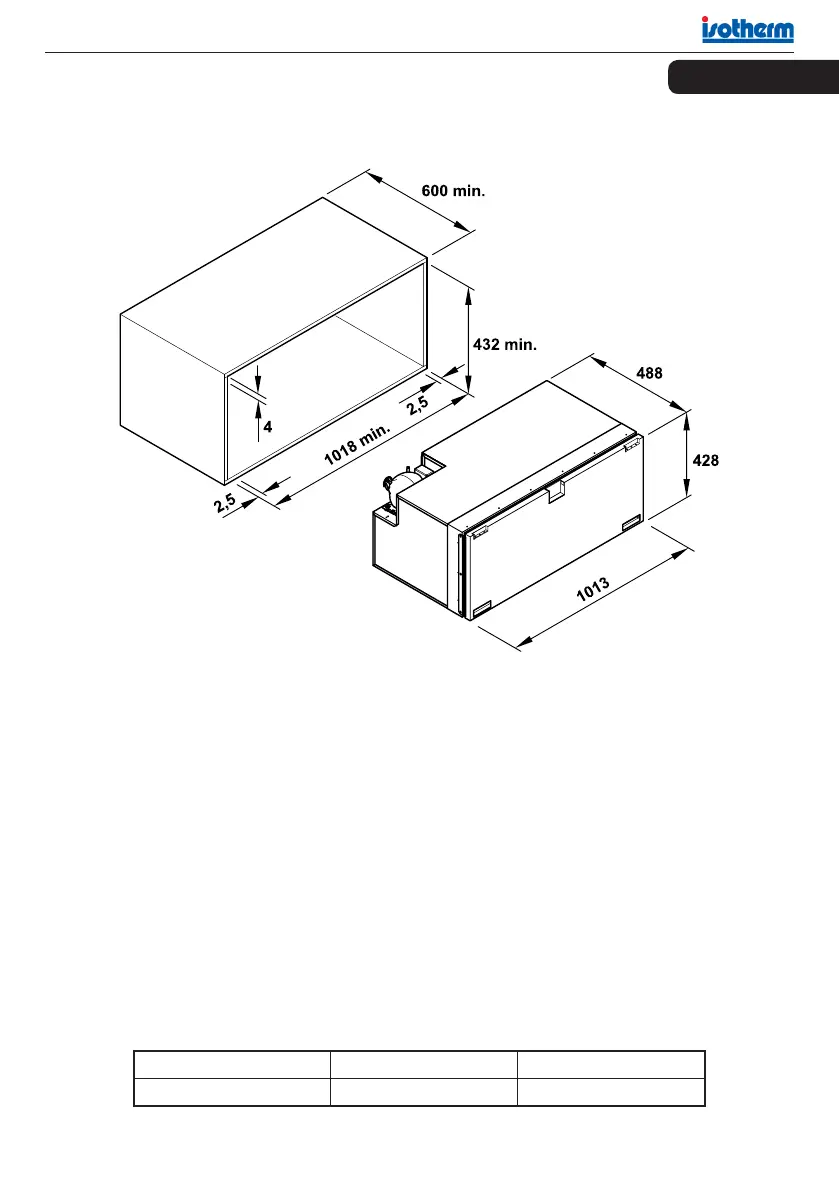

MINIMUM DIMENSION FOR RECESSED INSTALLATION
Fig. 7
