Inovance H0U Series PLC User Manual

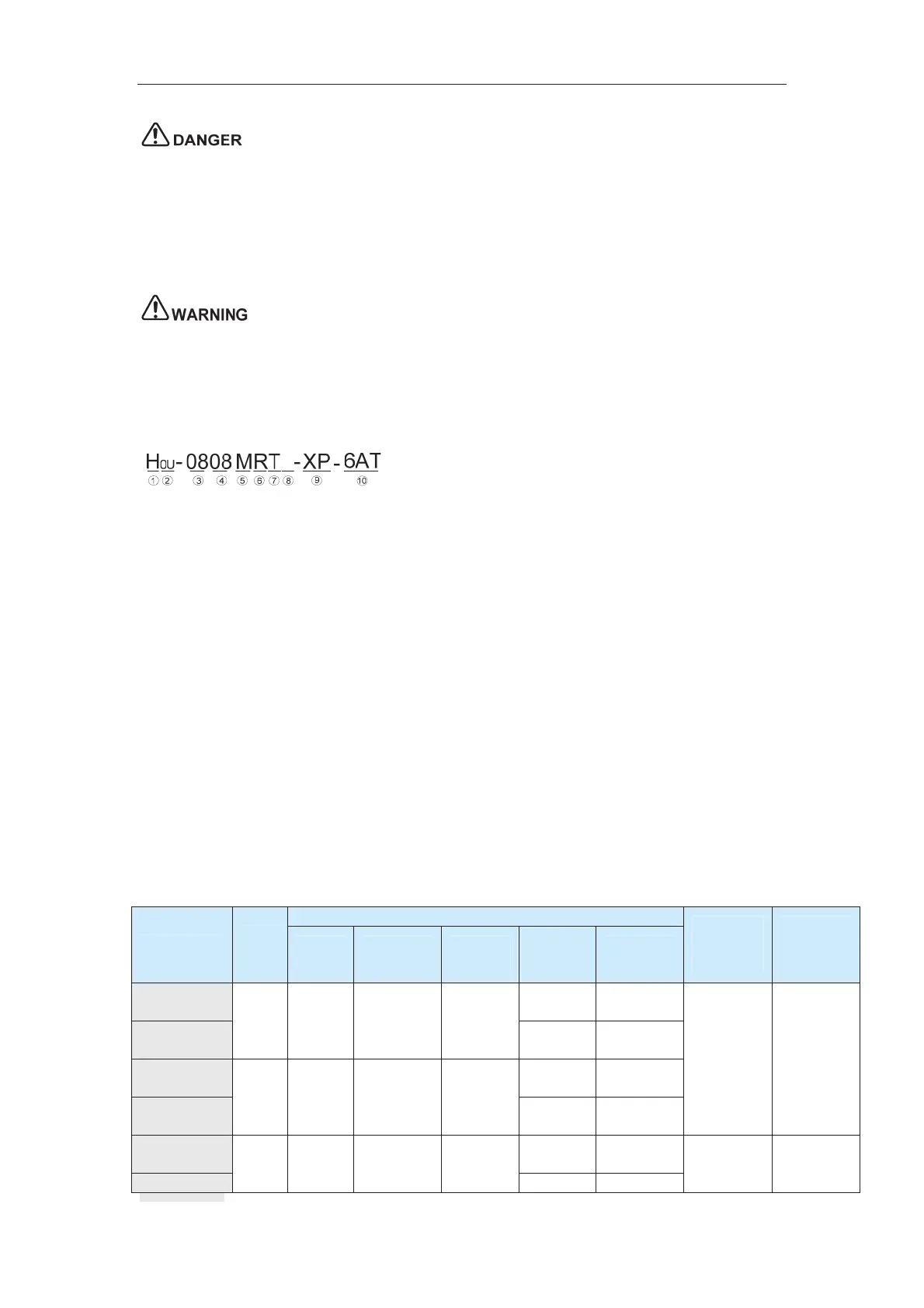

Page 3 of 14
z Connection or removal of the communication cable, cables of the extension card and
cables of the control unit can be performed only after power-off. Failure to comply
may result in damage to the equipment or malfunction.
z The operations such as online modification, forcible output, RUN and STOP can be
performed only after you read the manual and guarantee safety.
z Treat scrapped PLC as ordinary industrial waste.
Product Information
Designation Rules
ķ Product information H: Inovance controller
ĸ Series No. 0U: TOD+PLC integrated controller
Ĺ Input points 08: 8 inputs
ĺ Output points 08: 8outputs
Ļ Module classification M: Main module of general-purpose controller
ļ Output type R: Relay, T: Transistor
Ľ Output type Mixed output
ľ Reserved for future expansion
Ŀ CPU type XP: NXP-type CPU
ŀ Special function 6AT (standard): built-in analog extension card; 6ATC
(customized): built-in analog extension card and CAN card; CAN (customized): built-in
CAN card
Basic Parameters
The following table describes the basic parameters of the H0U series PLC.
Table 1 Basic parameters of the H0U series PLC
I/O Features
PLC Model
Total
I/Os
Total
Inputs
High-Spee
d Inputs
Total
Outputs
High-Sp
eed
Outputs
Output
Type
Communi
cation
interface
Built-in
Analog
Card
H0U-0808M
R-XP
- Relay
H0U-0808M
RT-XP
16 8
2 x 60 kHz
4 x 10 kHz
8
2 x 100
kHz
Transistor
H0U-1616M
R-XP
- Relay
H0U-1616M
RT-XP
32 16
2 x 60 kHz
4 x 10 kHz
16
2 x 100
kHz
Transistor
2 x RS485
1 x USB
-
H0U-0808M
R-XP-6AT
- Relay
H0U-0808M
16 8
2 x 60 kHz
4 x 10 kHz
8
2 x 100 Transistor
2 x RS485
1 x USB
6AT
