Inovance MDBUN Series User Manual

Inovance MDBUN Series Braking Unit User Manual
Chapter 2 Product Information
2.1 Product Appearance and Designation Rules

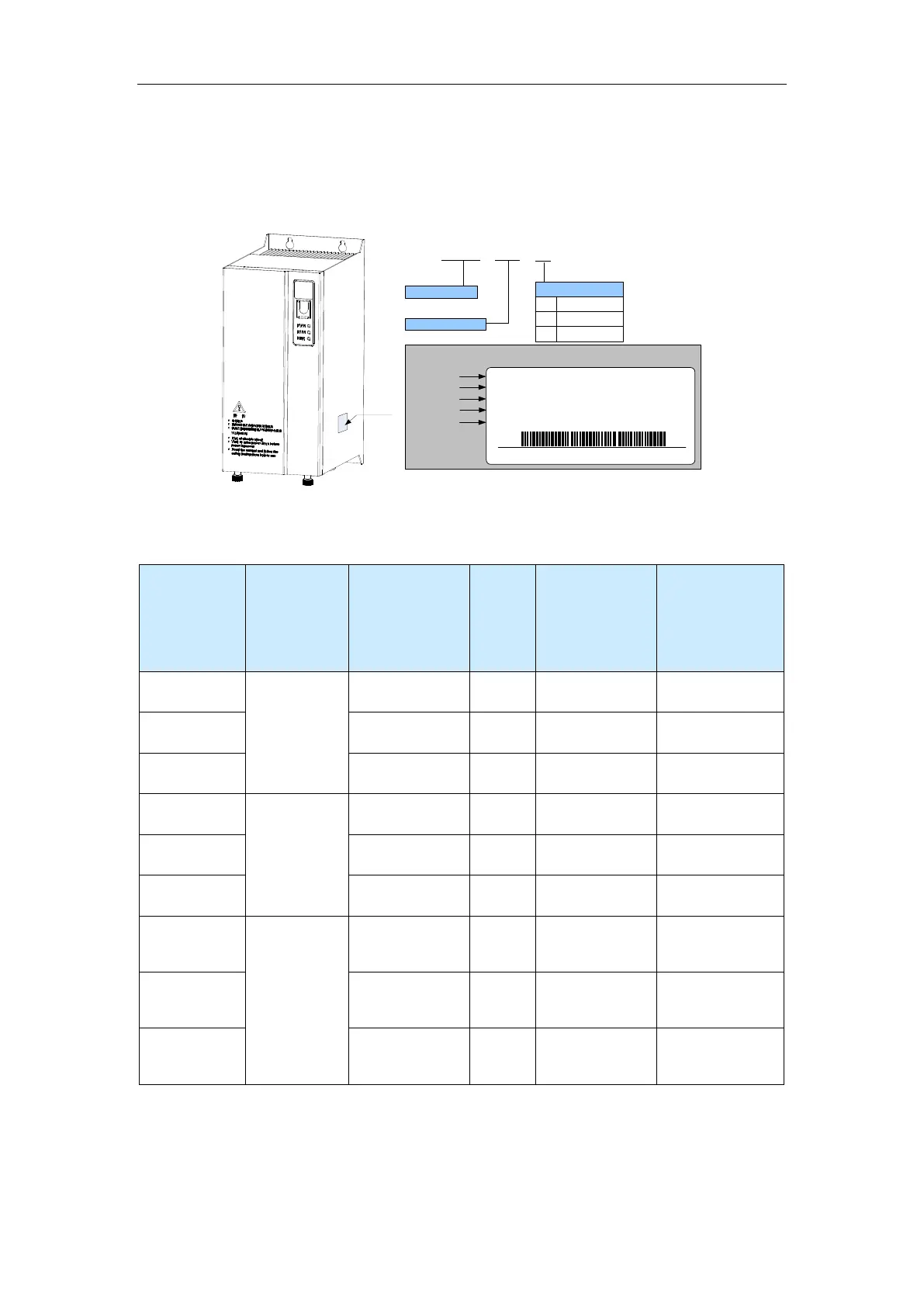

Figure 2-1 Nameplate and designation rules of the MDBUN
MODEL: MDBUN-90-T
INPUT: DC 300 - 800V
OUTPUT: 0 - 90A
Suzhou Inovance Technology Co.,Ltd.
S/N: 010131264C800109
POWER: 63kW
Model
Rated power
Rated input
Rated output
S/N
Nameplate
Voltage Class
S
220 VAC
Rated braking current
MDBUN 90 T
T
380 VAC
5T
480 VAC
Series name
Position of
nameplate
2.2 Model and Technical Specifications
Table 2-1 Model and technical specifications of MDBUN series braking unit
Braking Unit
Model
Input Voltage
of Adaptable
Drive
Rated
Continuous
Braking Current
(A)
Peak
Braking
Current
(A)
Max.
Continuous
Braking Power
(kW)
Min. Braking
Resistance (Ω)
MDBUN-45-S
220 VAC
45
54
21
8
MDBUN-60-S
60
72
27
6
MDBUN-90-S
90
108
41
4
MDBUN-45-T
380 VAC
45
54
38
15
MDBUN-60-T
60
72
51
11
MDBUN-90-T
90
108
76
8
MDBUN-45-5
T
480 VAC
45
54
43
17
MDBUN-60-5
T
60
72
58
13
MDBUN-90-5
T
90
108
86
9

Inovance MDBUN Series Specifications

General

Brand	Inovance
Model	MDBUN Series
Category	Industrial Equipment
Language	English
