6
NS-19E310A13 Insignia 19" LED TV
www.insigniaproducts.com

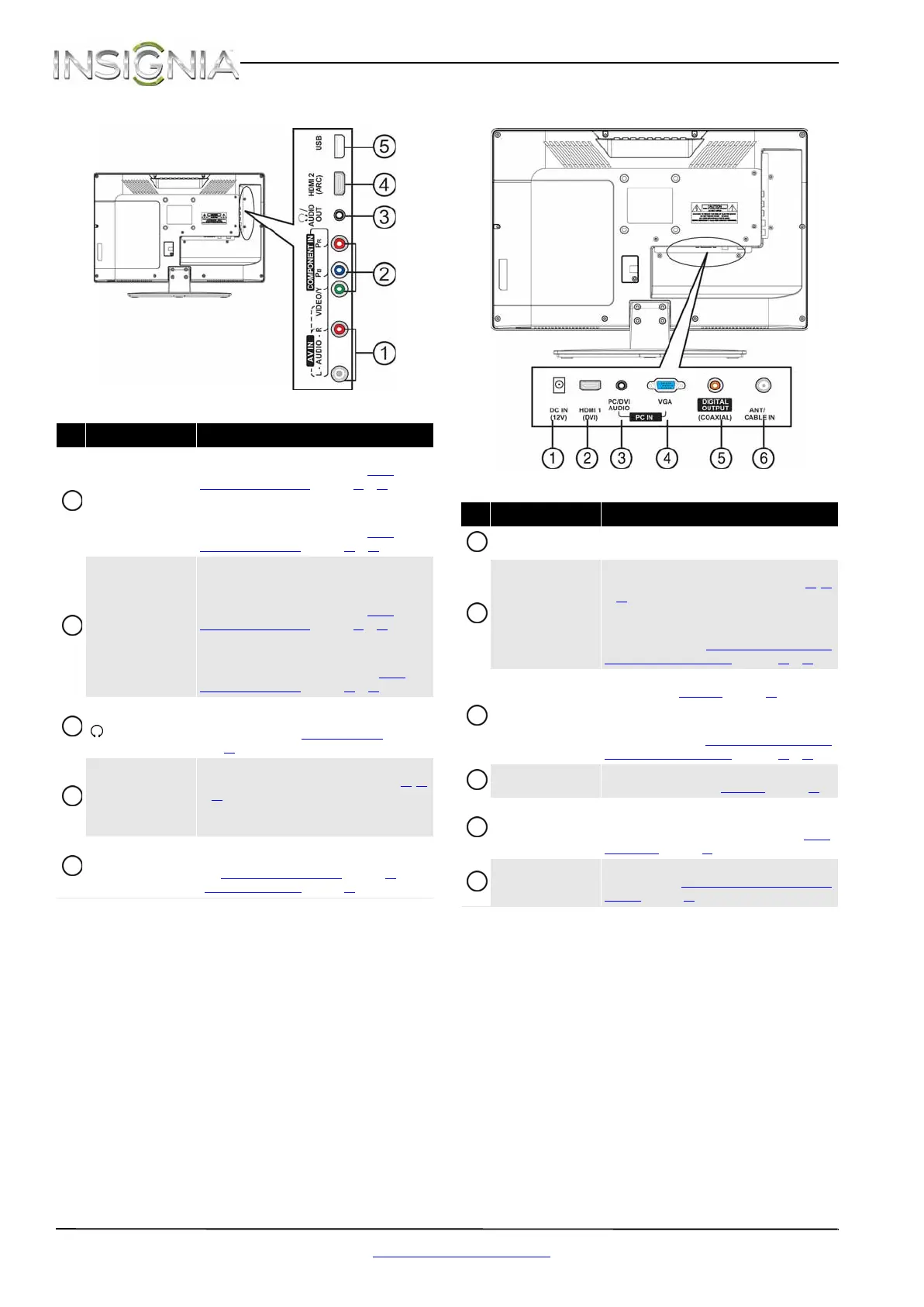

Side Back
# Item Description
AUDIO L/R
Connect the audio for a component video device to
these jacks. For more information, see “Using
component video (better)” on page 11 or 14.
OR
Connect the audio for a composite video device to
these jacks. For more information, see “Using
composite video (good)” on page 12 or 15.
COMPONENT IN
VIDEO/Y, P
B
, P
R
OR
AV IN VIDEO/Y
The VIDEO/Y jack works as one of the three
component video jacks or as a composite video jack.
Connect the video for a component video device to
these jacks. For more information, see “Using
component video (better)” on page 11 or 14.
OR
Connect the video for a composite video device to the
Y/VIDEO jack. For more information, see “Using
composite video (good)” on page 12 or 15.
/AUDIO OUT
Connect headphones, an analog audio amplifier, a
home theater system, or a sound bar to this jack. For
more information, see “Using analog audio” on
page 19.
HDMI 2/ARC
Connect an HDMI device to this jack. For more
information, see “Using HDMI (best)” on pages 10, 13,
or 17.
If you are connecting a home theater system using
HDMI, connect it to this jack.
USB
Connect a USB flash drive to this jack to view
compatible JPEG picture files. For more information,
see “Connecting a USB flash drive
” on page 17 and
“Using a USB flash drive” on page 48.
1
2
3
4
5
# Item Description
DC IN (12V)
Plug the power cord into this jack, then plug the other
end of the cord into a power outlet.
HDMI 1 (DVI)
Connect an HDMI device to this jack. For more
information, see “Using HDMI (best)” on pages 10, 13,
or 17.
OR
Connect the video for a DVI device to this jack. For
more information, see “Using DVI (same as HDMI but
requires an audio connection)” on pages 11 or 14.
PC/DVI AUDIO
Connect the audio for a computer to this jack. For more
information see “Using VGA” on page 16.
OR
Connect the audio for a DVI device to the this jack. For
more information see, “Using DVI (same as HDMI but
requires an audio connection)” on pages 11 or 14.
VGA
Connect the video (VGA) for a computer to this jack.
For more information, see “Using VGA” on page 16.
DIGITAL OUTPUT
(COAXIAL)
Connect a digital audio amplifier or home theater
system to this jack to listen to TV audio through the
amplifier speakers. For more information, see “Using
digital audio” on page 18.
ANT/CABLE IN
Connect an antenna or cable TV to this jack. For more
information, see “Connecting an antenna or cable TV
(no box)” on page 13.
1
2
3
4
5
6
