Insignia NS-19E310A13 User Manual

15
Insignia 19" LED TV
www.insigniaproducts.com

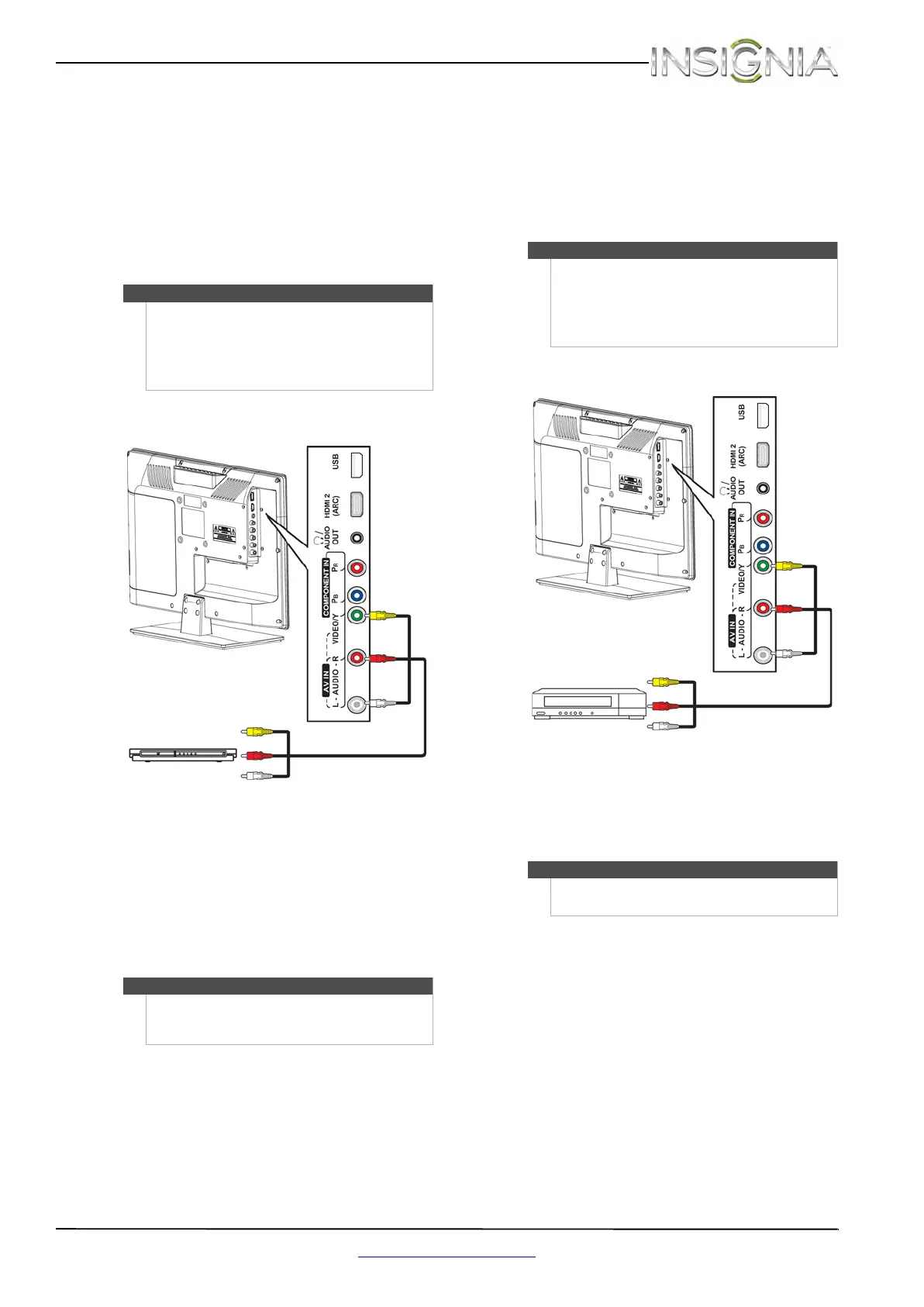

Using composite video (good)
To connect a DVD or Blu-ray player using
composite video:
1 Make sure that your TV’s power cord is
unplugged and the DVD or Blu-ray player is
turned off.
2 Connect an AV cable (not provided) to the
VIDEO/Y jack and AUDIO L/R jacks on the side
of your TV and to the AV OUT jacks on the DVD
or Blu-ray player.
3 Plug your TV’s power cord into a power outlet,
then turn on your TV.
4 Turn on the DVD or Blu-ray player, then set it to
the correct output mode. For more information,
see the documentation that came with the
player.
5 Press INPUT to open the Input Source list.
6 Press
S or T to select COMP/AV, then press
ENTER.
Connecting a VCR
To connect a VCR:
1 Make sure that your TV’s power cord is
unplugged and the VCR is turned off.
2 Connect an AV cable (not provided) to the
VIDEO/Y jack and AUDIO L/R jacks on the side
of your TV and to the AV OUT jacks on the VCR.
3 Plug your TV’s power cord into a power outlet,
then turn on your TV and the VCR.
4 Press INPUT to open the Input Source list.
5 Press
S or T to select COMP/AV, then press
ENTER.
6 Insert a videotape in the VCR, then press PLAY
on the VCR.
Note
•The VIDEO/Y, P B , and P R video jacks (used to
connect a component device) share the
AUDIO L/R jacks with the VIDEO/Y jack (used to
connect a composite device).
• When you connect the audio using the
AUDIO L/R jacks, the audio output is analog.
Notes
Remote control model NS-RC03A-13:
You can also press VIDEO to select the DVD or Blu-ray
player.
DVD or Blu-ray player
Cables are often color-coded to match color-coded jacks.
Note: The yellow video connector on the AV cable connects to
the green VIDEO/Y jack.
AV cable
Side of TV
Note
•The VIDEO/Y, P B , and P R video jacks (used to
connect a component device) share the
AUDIO L/R jacks with the VIDEO/Y jack (used to
connect a composite device).
• When you connect the audio using the
AUDIO L/R jacks, the audio output is analog.
Note
Remote control model NS-RC03A-13:
You can also press VIDEO to select the VCR.
VCR
Cables are often color-coded to match color-coded jacks.
Note: The yellow video connector on the AV cable connects to
the green VIDEO/Y jack.
AV cable
Side of TV
