7
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com

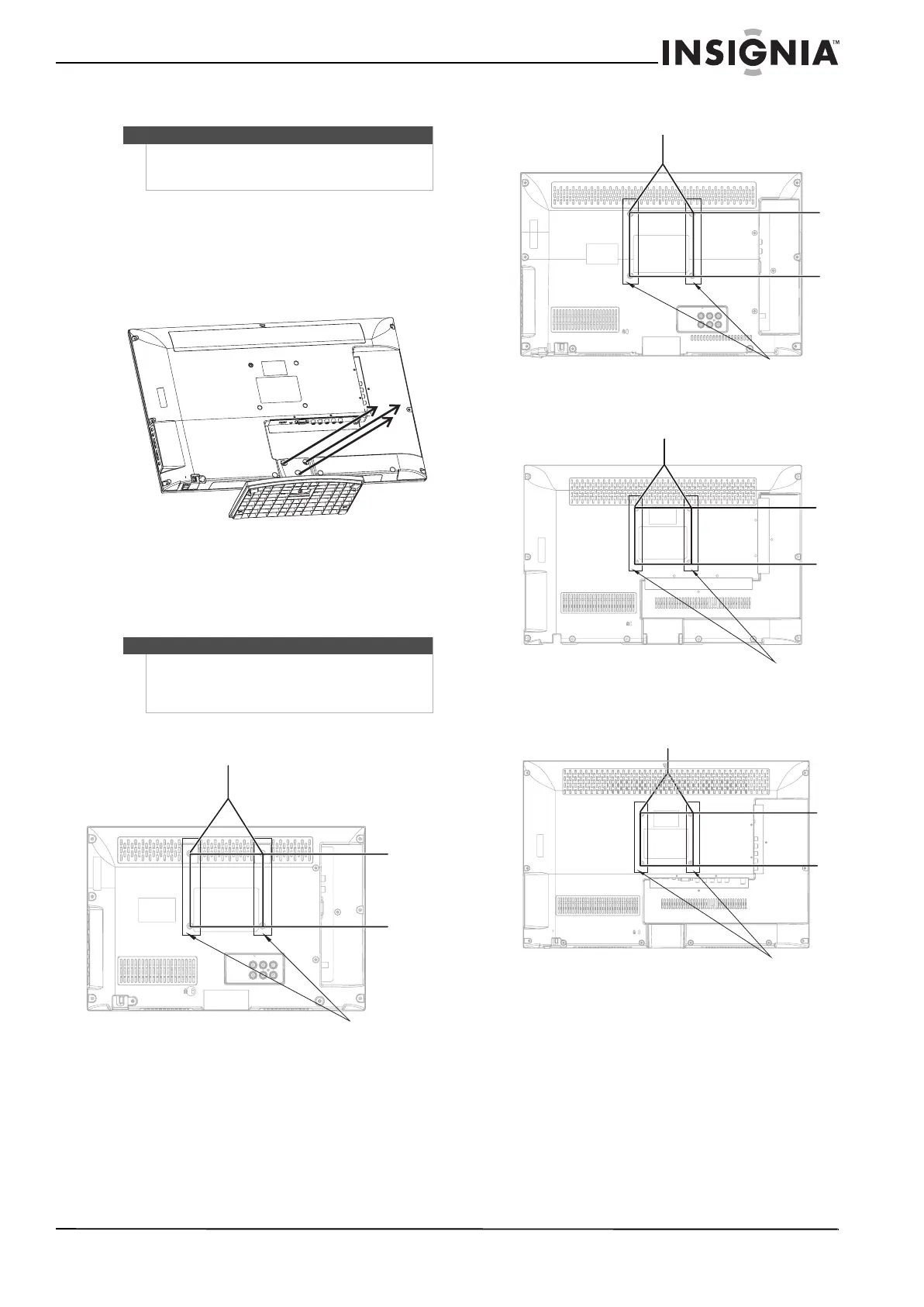

Installing a wall-mount bracket
To attach your TV to a wall-mount bracket:
1 Carefully place your TV screen face-down on a
cushioned, clean surface to protect the screen
from damages and scratches.
2 Remove the three screws that secure the stand
column to your TV, then remove the column.
3 Attach the wall-mount bracket to your TV using
the mounting holes on the back of your TV. See
the instructions that came with the wall-mount
bracket for information about how to correctly
hang your TV.
NS-15E720A12 (15-inch)
NS-19E720A12 (19-inch)
NS-22E730A12 (22-inch)
NS-24E730A12 (24-inch)
Warning
This TV is intended to be supported by a UL Listed
wall mount bracket with suitable weight/load. (See
“Miscellaneous” on page 62.)
Note
The length of the wall-mount screws vary depending
on the wall-mount bracket you purchased. See the
instructions that came with the wall-mount bracket
for screw lengths.
3.94 in. (100 mm)
3.94 in. (100 mm)
Wall mount brackets
3.94 in. (100 mm)
3.94 in. (100 mm)
Wall mount brackets
3.94 in. (100 mm)
3.94 in. (100 mm)
Wall mount brackets
3.94 in. (100 mm)
3.94 in. (100 mm)
Wall mount brackets
