Component video (better)
1 Make sure that your TV’s power cord is unplugged and the DVD or Blu-ray player is turned off.
2 Connect a component video cable (not provided) to the VIDEO/Y, P
B, and PR jacks on the side of your TV and to
the COMPONENT OUT jacks on the DVD or Blu-ray player.
3 Connect an audio cable (not provided) to the L and R AUDIO jacks on the side of your TV and to the L/R AUDIO
OUT jacks on the DVD or Blu-ray player.
4 Plug your TV’s power cord into a power outlet, then turn on your TV and the DVD or Blu-ray player.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
S or T to select Component/AV, then press ENTER.
Note
Cables are often color-coded to match color-coded jacks.
Notes
•The VIDEO/Y, P
B, and PR video jacks (used to connect a component
device) share the L and R AUDIO jacks with the VIDEO/Y jack (used to
connect an AV (composite video) device).
• When you connect the audio using the L and R AUDIO jacks, the audio
output is analog.

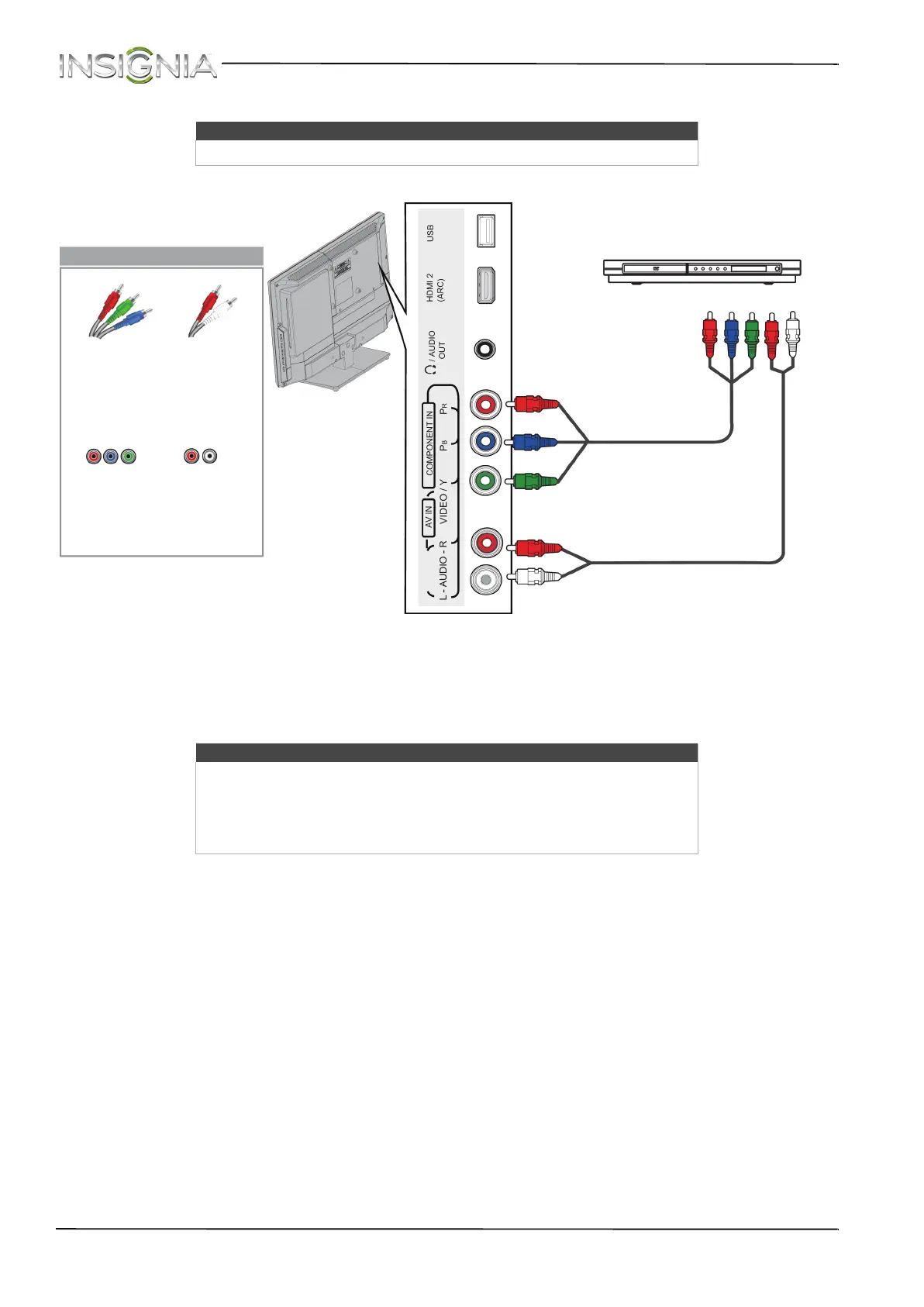

Side of TV
Audio cable
Component video
cable
DVD or Blu-ray player
Component
video cable
connectors
Audio cable
connectors
Component
video jacks
Analog
audio jacks
On your TV
