Insignia NS-24ED310NA15 User Manual

24
NS-24ED310NA15 Insignia 24" LED TV/DVD Combo
www.insigniaproducts.com

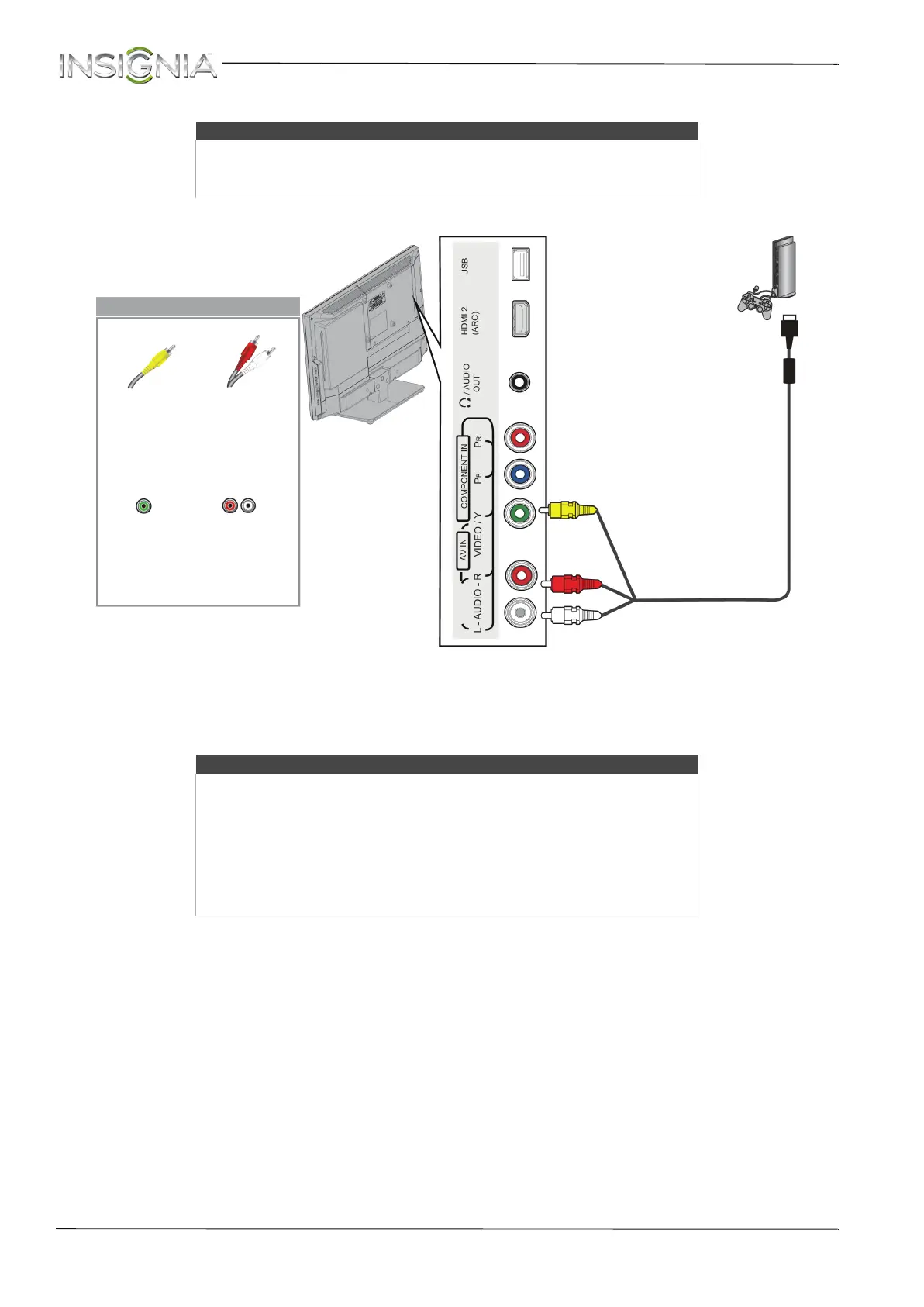

AV (composite video) (good)
1 Make sure that your TV’s power cord is unplugged and the game console is turned off.
2 Connect the video and audio connectors on the game console’s AV cable (not provided) to the green VIDEO/Y
jack and L and R AUDIO jacks on the side of your TV and to the AV (composite video) jack(s) on the game
console.
3 Plug your TV’s power cord into a power outlet, then turn on your TV.
4 Turn on the game console, then set it to the correct output mode. For more information, see the documentation
that came with the console.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
S or T to select Component/AV, then press ENTER.
Notes
• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green
VIDEO/Y jack.
Notes
• Most game consoles come with a special AV (composite video) cable.
See the documentation that came with your game console or check the
manufacturer’s Web site.
•The VIDEO/Y, P
B, and PR video jacks (used to connect a component
device) share the L and R AUDIO jacks with the VIDEO/Y jack (used to
connect an AV (composite video) device).
• When you connect the audio using the L and R AUDIO jacks, the audio
output is analog.
Game
console
Console-specific AV
cable
(composite video
cable)
Side of TV
AV
(composite
video) cable
connector
Audio cable
connectors
AV
(composite
video) video
jack
Analog
audio jacks
On your TV
