16
Insignia 32" LED TV
www.insigniaproducts.com

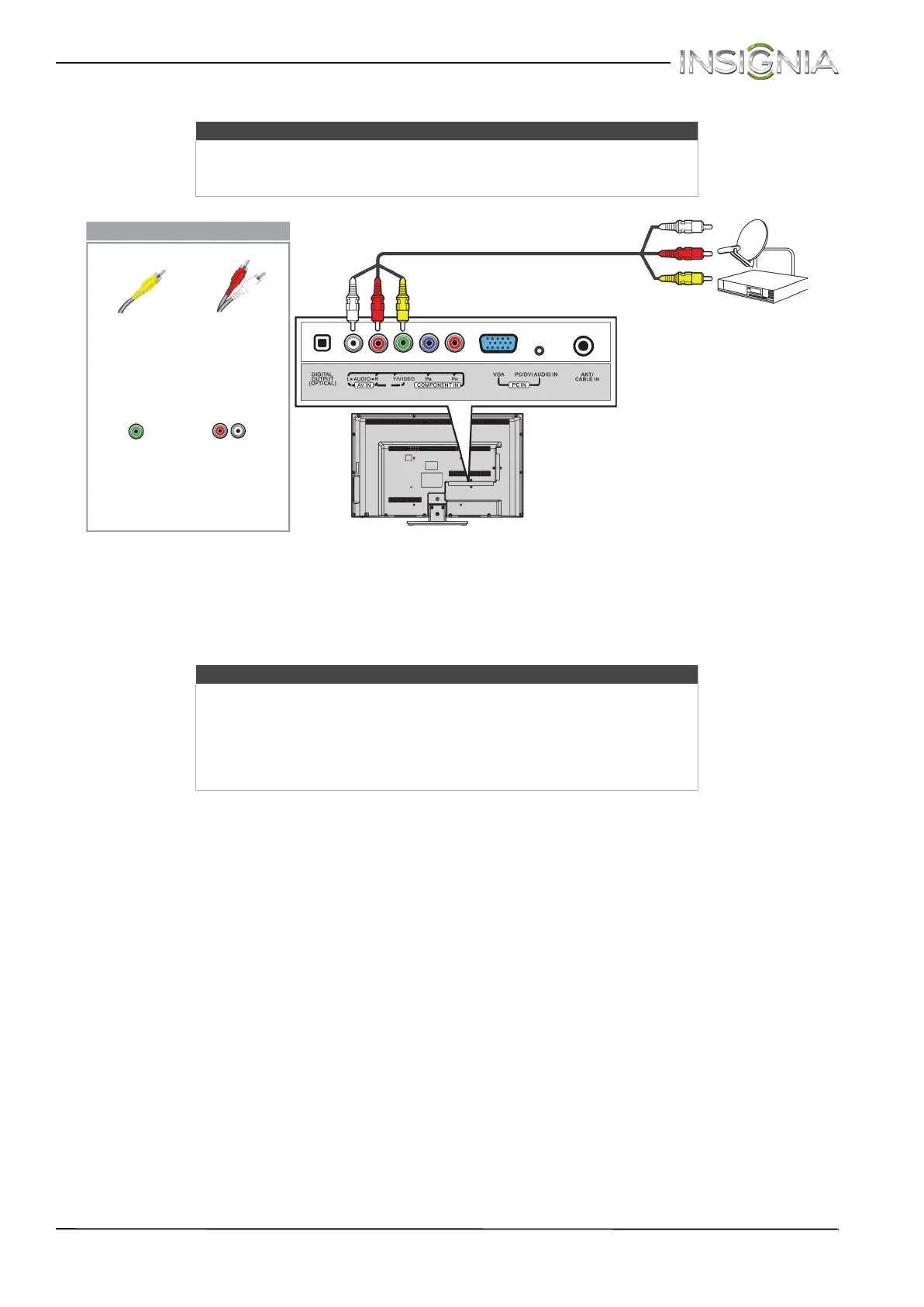

Using composite video (good)
To connect a cable or satellite box using composite video:
1 Make sure that your TV’s power cord is unplugged and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect an AV cable (not provided) to the COMPONENT IN/AV IN Y/VIDEO jack and L and R AUDIO jacks on
the back of your TV and to the composite video and audio out jacks on the cable or satellite box.
4 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
S or T to select Component/AV, then press ENTER.
Notes
• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green
COMPONENT IN/AV IN Y/VIDEO jack.
Notes
•The COMPONENT IN/AV IN Y/VIDEO, P
B, and PR video jacks (used to
connect a component device) share the L and R AUDIO jacks with the
COMPONENT IN/AV IN Y/VIDEO jack (used to connect a composite
device).
• When you connect the audio using the L and R AUDIO jacks, the audio
output is analog.
Cable or
satellite box
AV cable
(composite video cable)
Back of TV
Composite
video cable
connector
Composite
video jack
Analog audio
cable
connectors
Analog
audio
jacks
On your TV
