17
NS-32D311NA15 Insignia 32" LED TV
www.insigniaproducts.com

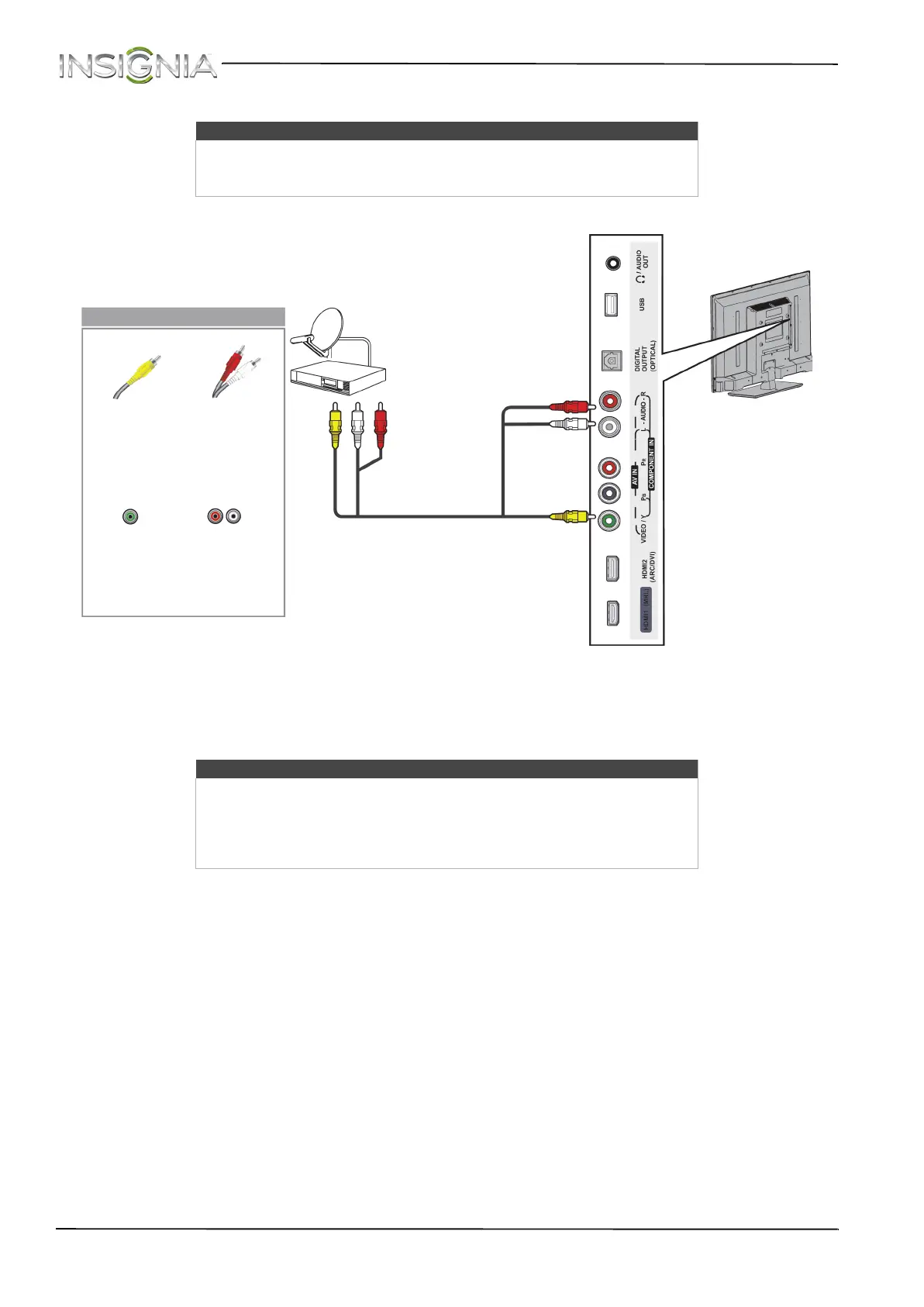

AV (composite video) (good)
1 Make sure that your TV’s AC power adapter is unplugged and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect an AV cable (not provided) to the green VIDEO/Y jack and AUDIO L and R jacks on the side of your TV
and to the AV (composite video) and audio out jacks on the cable or satellite box.
4 Plug your TV’s AC power adapter into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
S or T to highlight Component/AV, then press ENTER.
Notes
• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green
VIDEO/Y jack.
Notes
•The VIDEO/Y, P
B, and PR video jacks (used to connect a component
device) share the AUDIO L and R jacks with the VIDEO/Y jack (used to
connect an AV (composite video) device).
• When you connect the audio using the AUDIO L and R jacks, the audio
output is analog.
Cable or
satellite box
AV cable (composite video cable)
Side of TV
AV
(composite
video)
cable
connector
AV
(composite
video) jack
Audio cable
connectors
Analog
audio jacks
On your TV
