3.7 Cu. Ft. Free-Standing Gas Range for RVs
Connecting to gas
You can connect the gas using a flexible connector or a rigid pipe.
Flexible connector method
1 Install a male 1/2" flare adapter at the 1/2" NPT internal thread in the range inlet. Use a backup wrench on the elbow
fitting to avoid damage.
2 Install a male 1/2" or 3/4" flare union adapter in the NPT internal thread on the manual shut-off valve.
3 Connect the flexible metal appliance connector.
4 Make sure that the circuit breaker is off, then plug the power cord into the electrical outlet. Do not turn the circuit
breaker back on.
5 Push the range back into position making sure that the rear legs slide under the anti-tip brackets. The range sits
3/4" (19 mm) away from the wall when correctly installed.
6 Carefully tip the range forward to make sure that the front legs are under the anti-tip brackets.
Rigid pipe method
The configuration of the rigid pipe connection varies depending on the location of the gas pipe stub.
1 Make sure that the circuit breaker is off, then plug the power cord into the electrical outlet. Do not turn the circuit
breaker back on.
2 Push the range back into position making sure that the rear legs slide under the anti-tip brackets. The range sits
3/4" (19 mm) away from the wall when correctly installed.
3 Carefully tip the range forward to make sure that the front legs are under the anti-tip brackets.
4 Connect the pipe to the range at the union. Access the connection through the access panel behind the storage
drawer.
WARNING: If your range is not installed correctly, gas leaks can cause a fire or explosion which can lead to death or injury.
We recommend that a professional installer connect the gas.
CAUTION: Your range can use only LP gas. Do not connect it to any other type gas.
CAUTION: Be careful not to crimp the flexible connector.

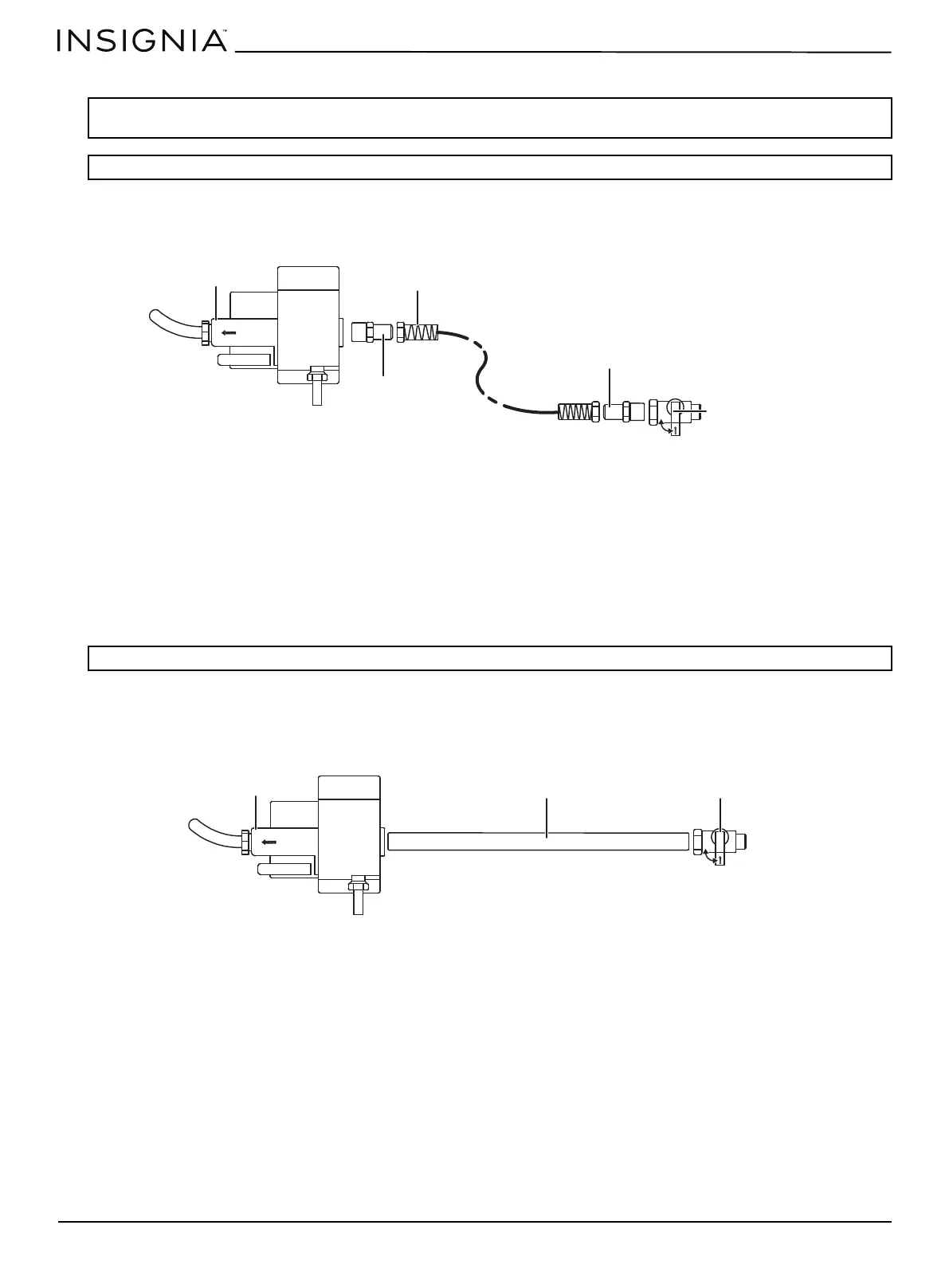

ON
OFF
Pressure
regulator
Flare union
adapter on the
range
Flexible appliance
conduit
Flare union adapter on
the shut-off valve
Manual
shut-off valve
ON
OFF
Pressure
regulator
Pipe
Manual shut-off
valve
