Providing a proper power supply
Check your local power source. This refrigerator requires a 110V–120V, 60Hz
power supply.
Use a receptacle that accepts the grounding prong. The power cord is equipped
with a 3-prong (grounding) plug which mates with a standard 3-prong
(grounding) wall outlet to minimize the possibility of electric shock hazard from
this refrigerator.
Installing the door handle
You will need a Phillips screwdriver and these parts from the accessory bag:
1 With a Phillips screwdriver, insert two bolts through the bolt holes inside the
refrigerator door.
2 Align the refrigerator handle with the bolts then tighten, making sure that the
handle is secure against the door.
3 Tighten the two hex screws on the side of the handle.
4 Push the bolt caps onto the bolts.
Notes:
• The refrigerator should always be plugged into its own individual electrical outlet
which has a voltage rating that matches the rating plate.
• Never unplug your refrigerator by pulling on the power cord. Always grip the plug
firmly and pull straight out from the outlet.

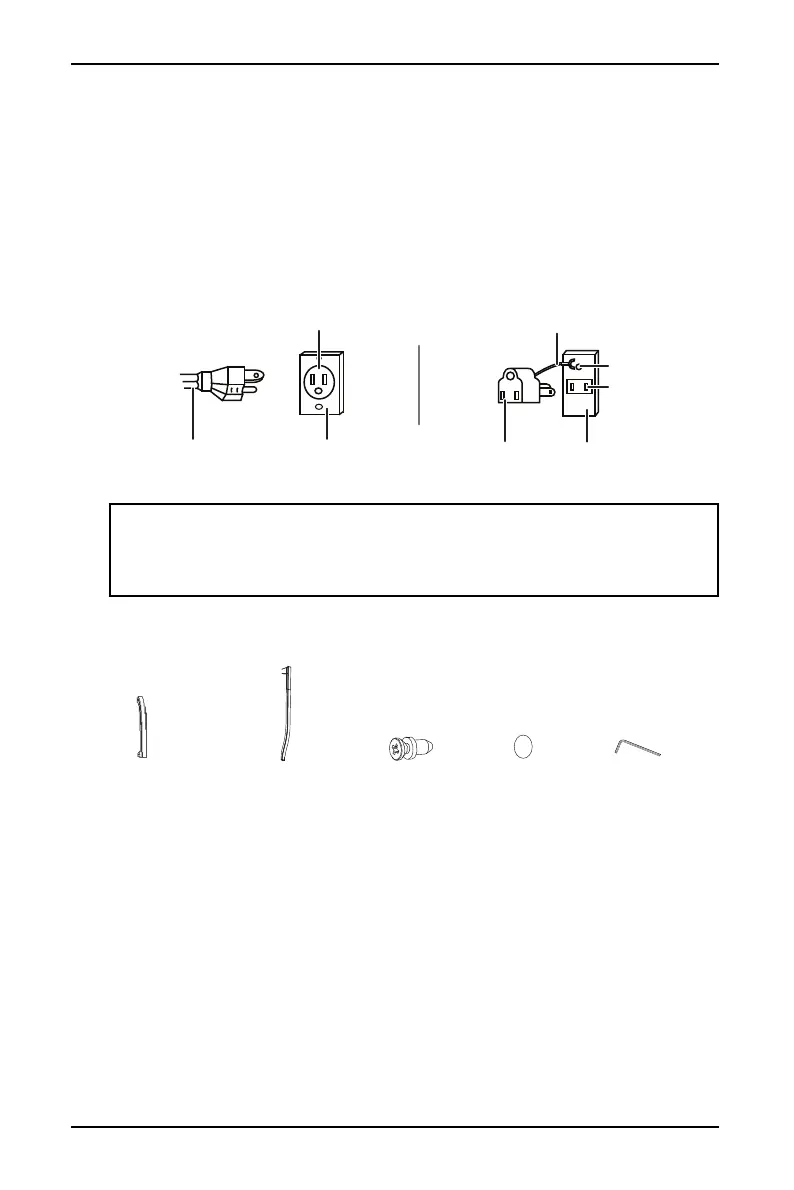

3-prong receptacle
Receptacle box cover
3-prong plug
Grounding lead
Grounding adapter Receptacle box cover
Screw
Receptacle
Using a 3-prong plug and
outlet
Using a grounding
adapter
Bolts (4)
Freezer handle
Bolt caps (4)
Refrigerator handle
Hex wrench
To Next Page
