2-2 Connectors and Headers
2-2-1 Connectors

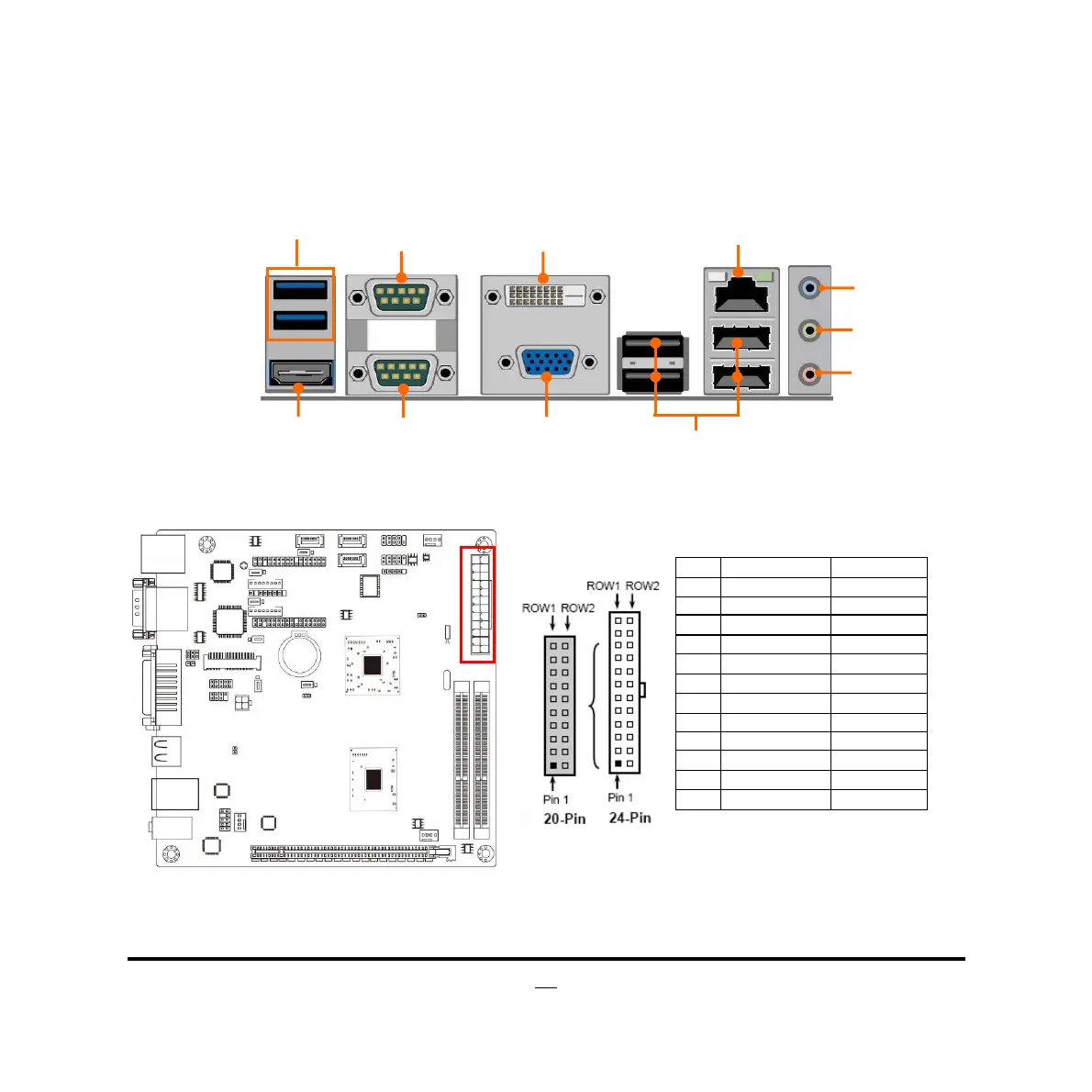

(1) Rear Panel Connectors
(2) ATXPWR (24-pin block): Power Connector
PIN ROW1 ROW2
1 +3.3V +3.3V
2 +3.3V -12V
3 GND GND
4 +5V PS_ON
5 GND GND
6 +5V GND
7 GND GND
8 Power OK -5V
9 +5V Stand by +5V
10 +12V +5V
11 +12V +5V
12 +3.3V GND
24-
p
in Main Power Connector
MIC-IN
VGA Port
Line-OUT
HDMI Port
RJ-45 LAN Port
DVI-D Port
USB 2.0 Ports
Serial Port
USB 3.0 Ports
Serial Port
Line-IN/SPDIF-OUT
