Installing and Replacing Desktop Board Components
39
Connecting the Serial ATA Cable
The SATA cable (4-conductor) supports the Serial ATA protocol and connects a single drive to the
desktop board. Either end of the cable can be connected to the SATA drive or the connector on the
board (see Figure 12).
For correct cable function:
1. Observe the precaution in Before You Begin on page 23.
2. Attach either cable end to the connector (A) on the board.
3. Attach either cable end to the connector (B) on the drive.
OM15467
A
B

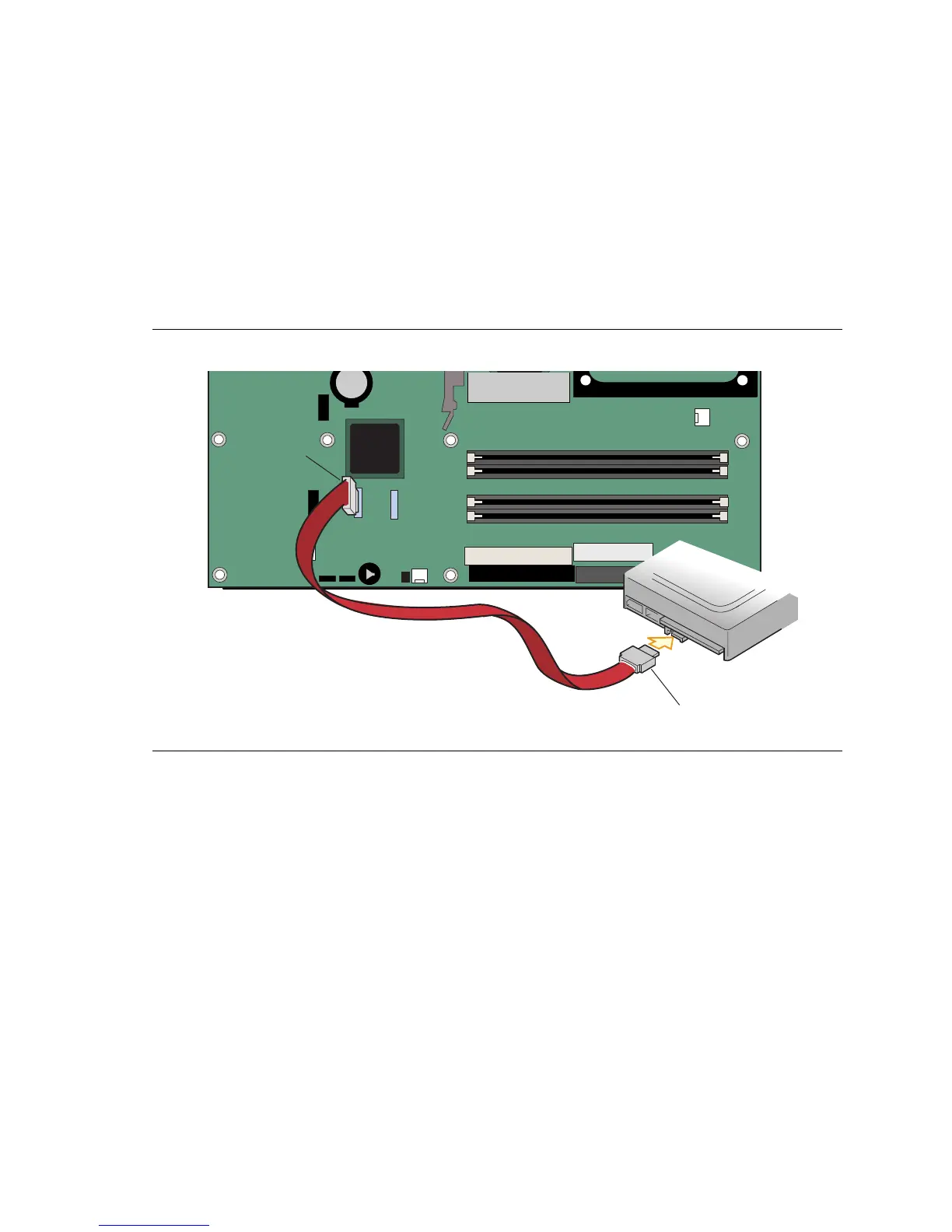

Figure 12. Connecting the Serial ATA Cable
