Intel Desktop Board D945GCPE Product Guide
30
7. Pressing down on the load plate (Figure 11, A) close and engage the socket lever
(Figure 11, B).

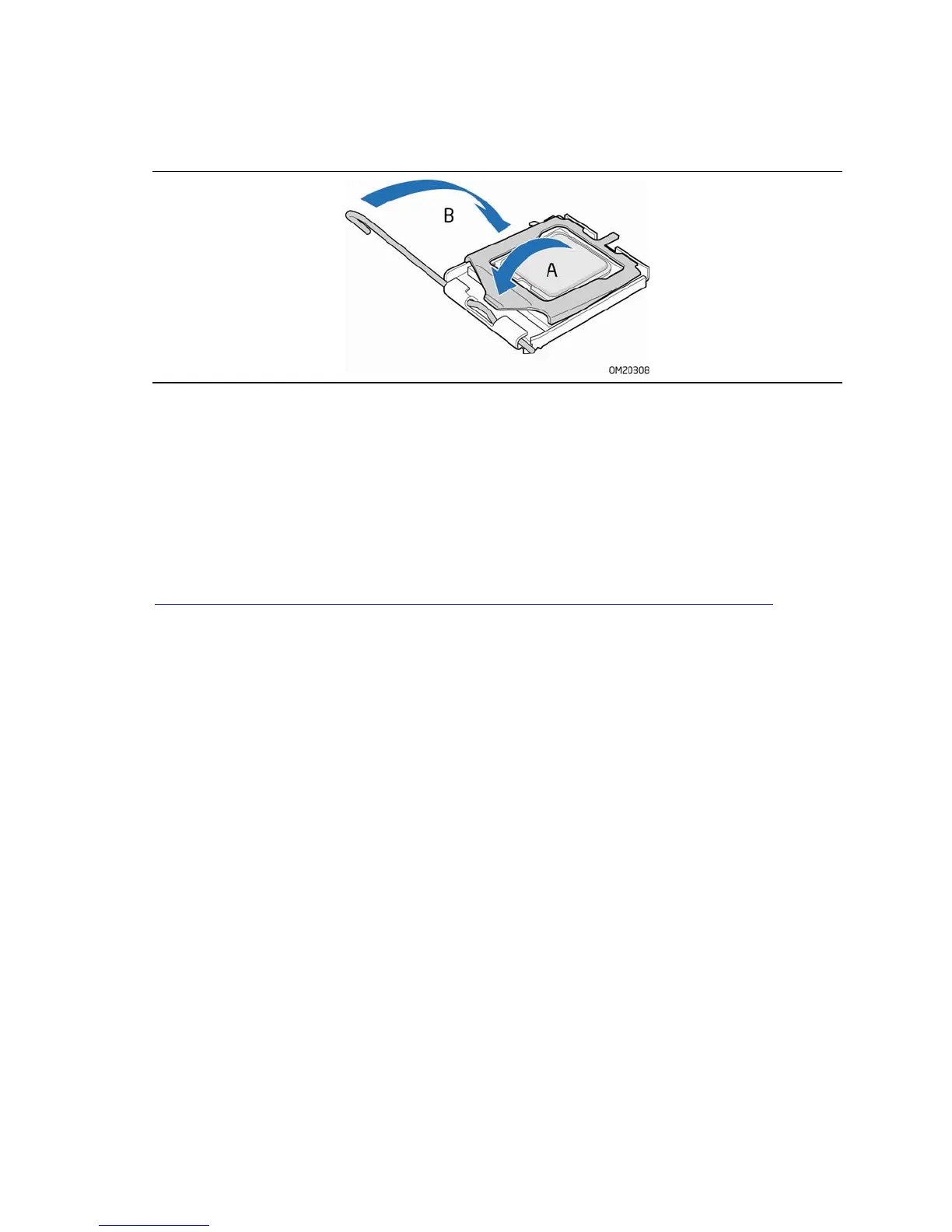

Figure 11. Close the Load Plate
Installing the Processor Fan Heat Sink
Desktop Board D945GCPE has an integrated processor fan heat sink retention
mechanism (RM). For instructions on how to attach the processor fan heat sink to the
integrated processor fan heat sink RM, refer to the boxed processor manual or the
Intel World Wide Web site at:
Integration of the Boxed Intel
®
Pentium
®
4 Processor in the 775-Land Package
