Installing and Replacing Desktop Board Components
39
Connecting to Internal Headers

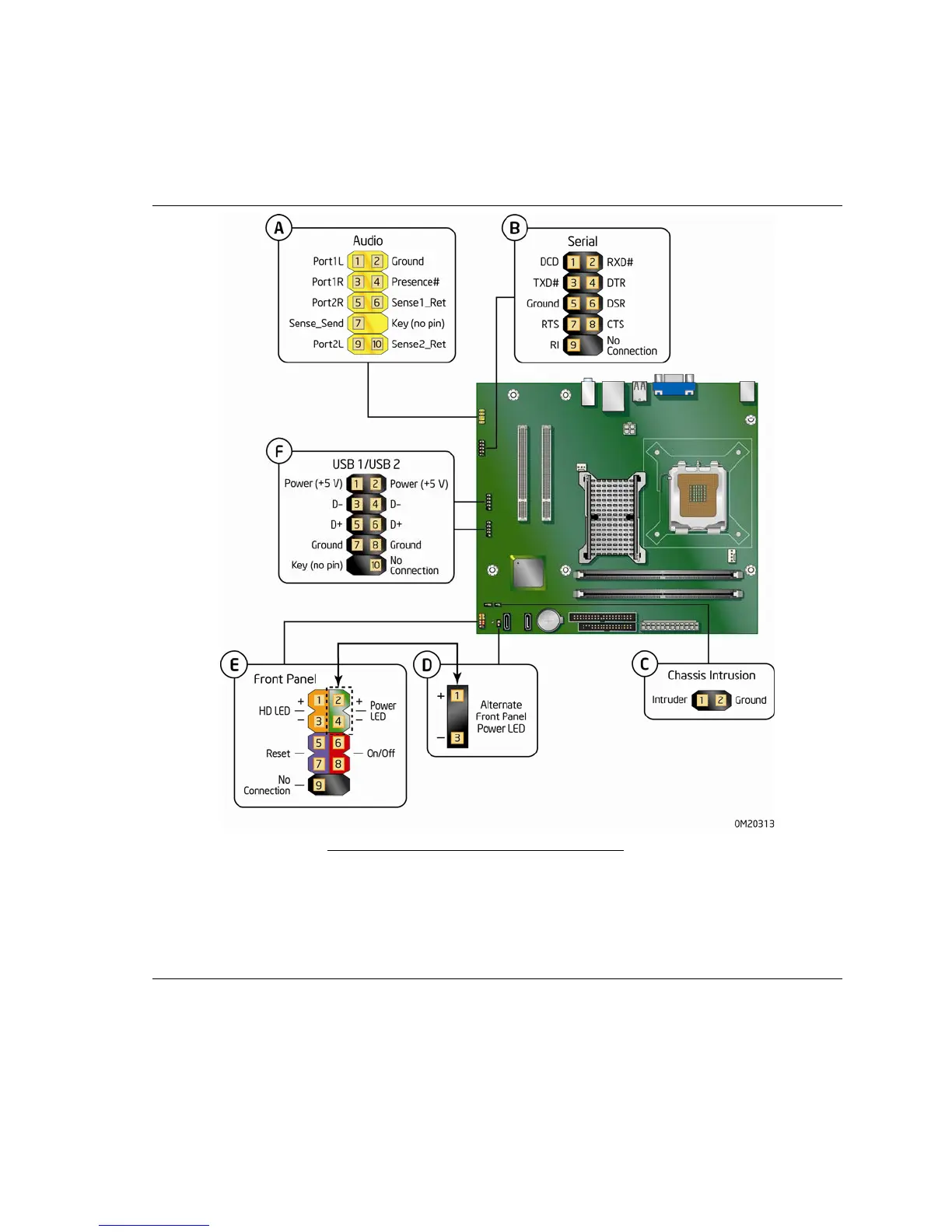

Before connecting cables to the internal headers, observe the precautions in "Before
You Begin" on page 23. Figure 19 shows the location of the internal headers.
Item Description
A Front panel audio
B Serial port
C Chassis intrusion
D Alternate front panel power LED
E Front panel
F USB 2.0
Figure 19. Internal Headers
