Intel DG41TY User Manual

Product Description
11
1.1.2 Board Layout

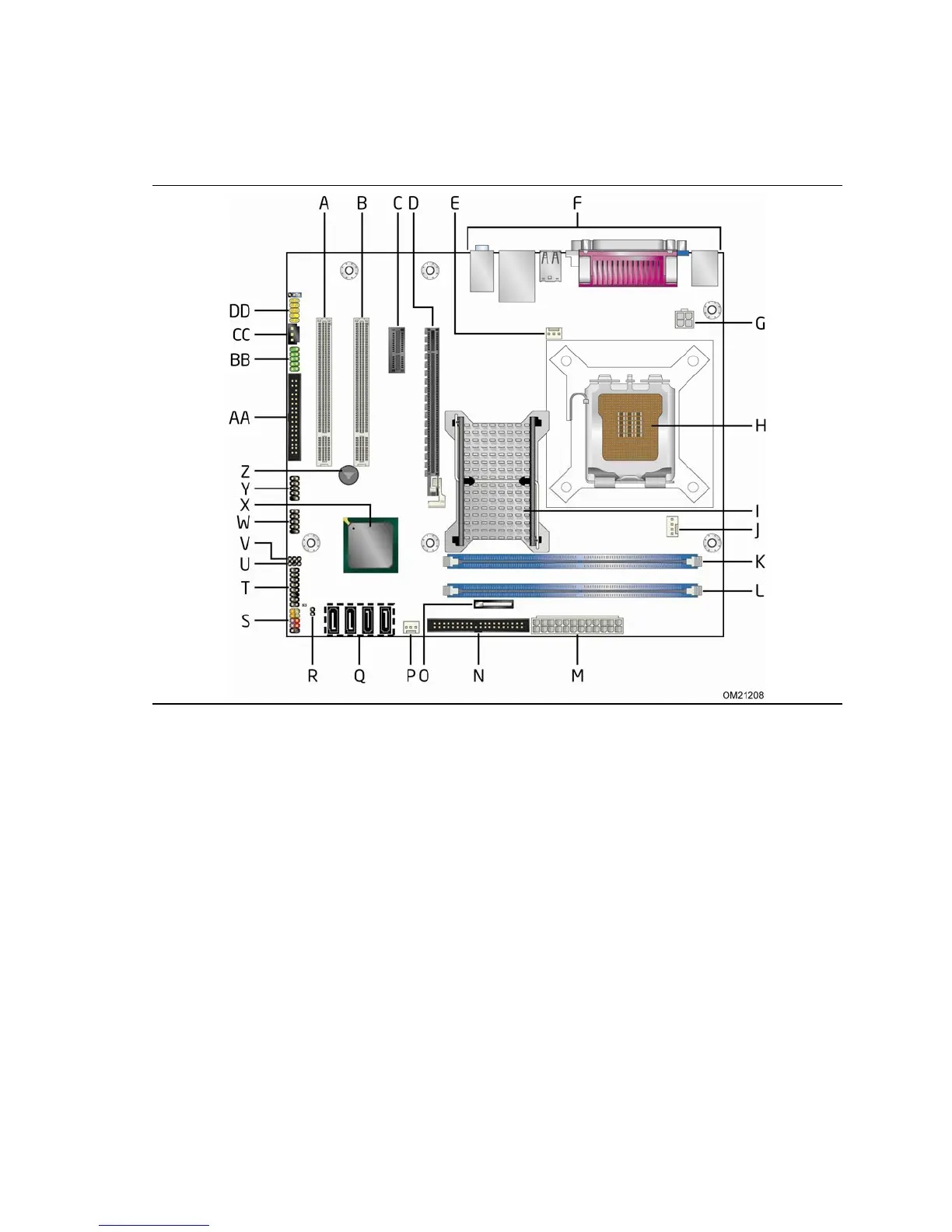

Figure 1 shows the location of the major components.
Figure 1. Major Board Components
Table 2 lists the components identified in Figure 1.

Intel DG41TY Specifications

General

Form Factor	MicroATX
Socket	LGA 775
Memory Type	DDR2
Memory Slots	2
Maximum Memory	8 GB
Graphics	Intel Graphics Media Accelerator X4500
LAN	10/100/1000 Mbps
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 1 x PCI
Storage Interface	4 x SATA 3.0 Gb/s
USB Ports	8 x USB 2.0
Video Outputs	VGA
RAID Support	No
IDE Ports	1 x IDE
Chipset	Intel G41 Express
