Intel DH55PJ User Manual

Product Description
11
1.1.2 Board Layout

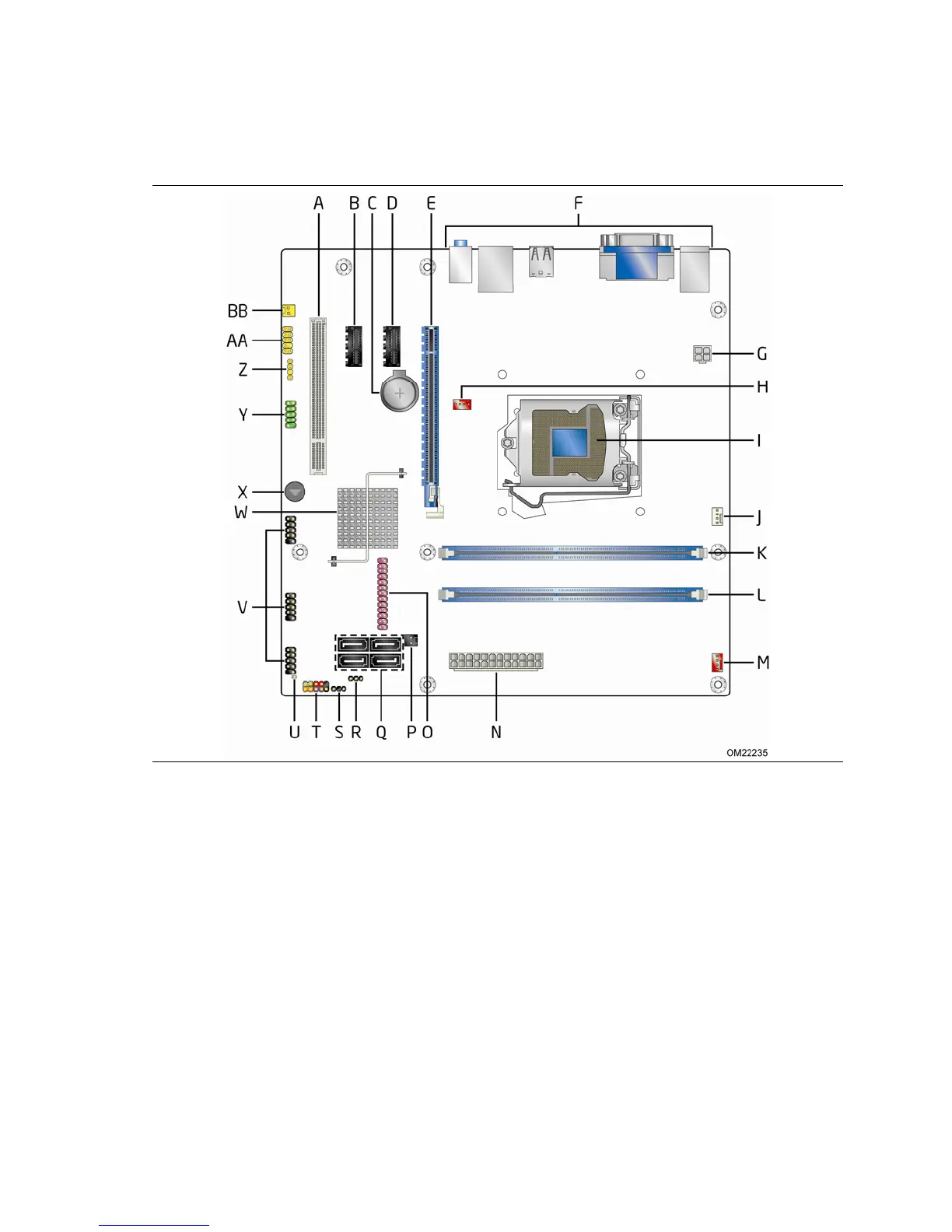

Figure 1 shows the location of the major components on Intel Desktop Board DH55PJ.
Figure 1. Major Board Components
Table 2 lists the components identified in Figure 1.

Intel DH55PJ Specifications

General

Form Factor	Micro ATX
Socket	LGA 1156
Memory Type	DDR3
Maximum Memory	8 GB
Memory Slots	2
PCI Express x16	1
PCI Express x1	2
PCI Slots	1
Chipset	Intel H55 Express
USB Ports	12
Video Outputs	VGA
SATA Ports	6
