Intel Desktop Board DH61ZE Product Guide
50
Connecting Power Supply Cables
CAUTION
Failure to use an appropriate power supply and/or not connecting the 12 V power
connector (Figure 22, A) to the Desktop Board may result in damage
to the board or
the system may not function properly.
Figure 22 shows the location of the power connectors.
The 2 x 12 pin main powe
r
connector (Figure 22, B) is backwards compatible with ATX12V power supplies with
2 x 10 connectors.
NOTE
If your power supply has a 2 x 10 main power connector, it is recommended that you
do not install a PCI Express x16 graphics card unless it has a direct connection to the
power supply.

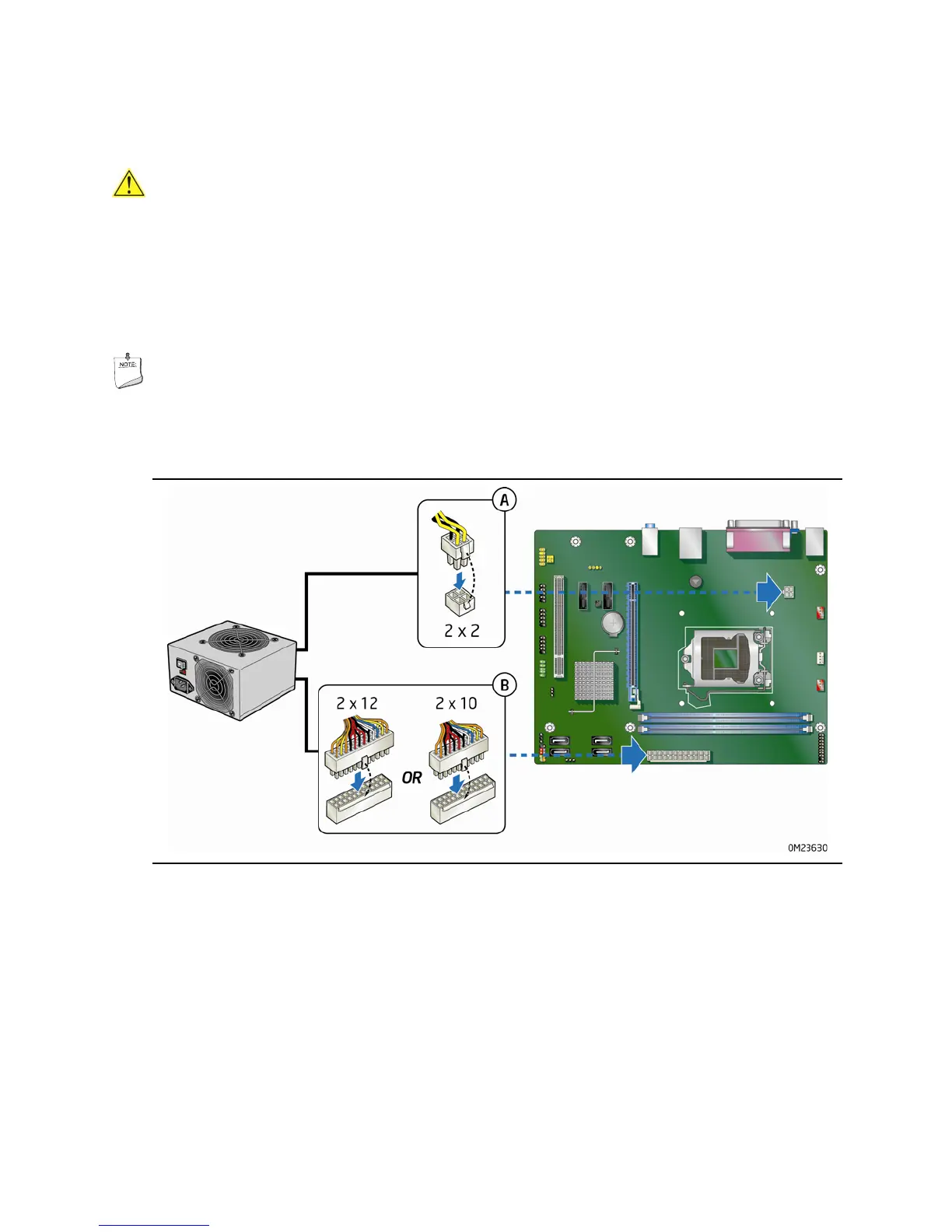

Figure 22. Connecting Power Supply Cables
1. Observe the precautions in "Before You Begin" on page 27.
2. Connect the 12 V processor core voltage power supply cable to the 2 x 2 pin
connector (Figure 22, A).
3. Con
n
ect the main power supply cable to the 2 x 12 pin connector (Figure 22, B).

Intel DH61ZE Specifications

General

Form Factor	Micro ATX
Socket Type	LGA 1155
Chipset	Intel H61
Memory Type	DDR3
Memory Slots	2
Maximum Memory	16 GB
Memory Standard	DDR3 1066/1333
Storage Interface	4 x SATA 3Gb/s
Video Outputs	VGA, DVI-D, HDMI
Power Connector	24-pin ATX power connector 4-pin ATX 12V power connector
Expansion Slots	1 x PCIe x16, 2 x PCIe x1
USB Ports	8 x USB 2.0 (4 on back panel, 4 via headers)
