Intel® RAID Expander Card RES2SV240 Hardware User’s Guide 9

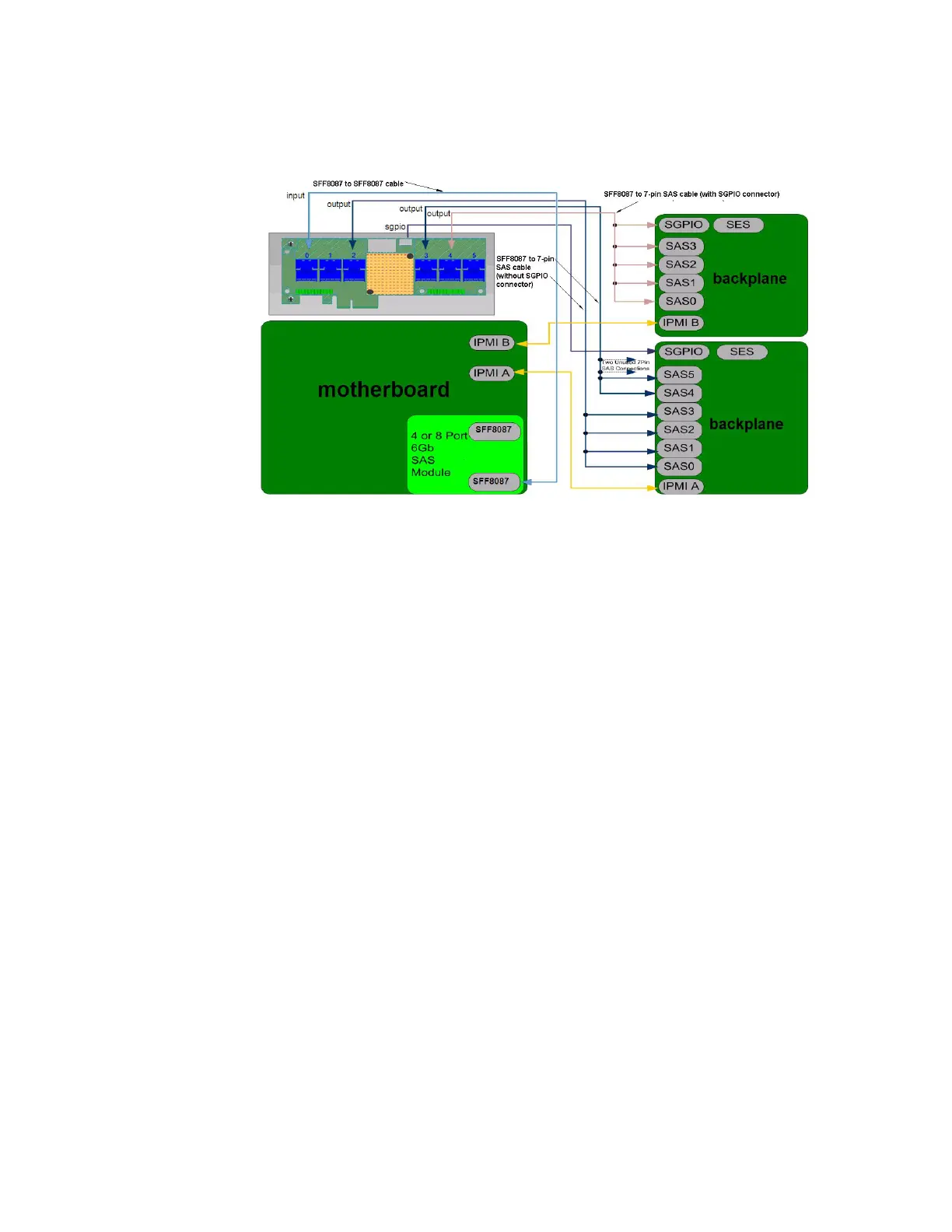

Figure 4. Cabling among the Expander Card, RAID Module/Controller and
Drives/Backplane
7. Install the server system cover and connect the powe
r cords. See your server system
documentation for instructions.
Configuring the Expander Card
After physically installed into a server system, the Intel
®
RAID Expander Card
RES2SV240 is transparent to users in RAID configurations. Refer to the technical
specification or user guide of the RAID controller connected to this expander card to
know how to configure a RAID system.
Replacing the Expander Card
To replace the RAID module, see your server system documentation for instructions to
remove and then install an add-in adapter.
