Page 11

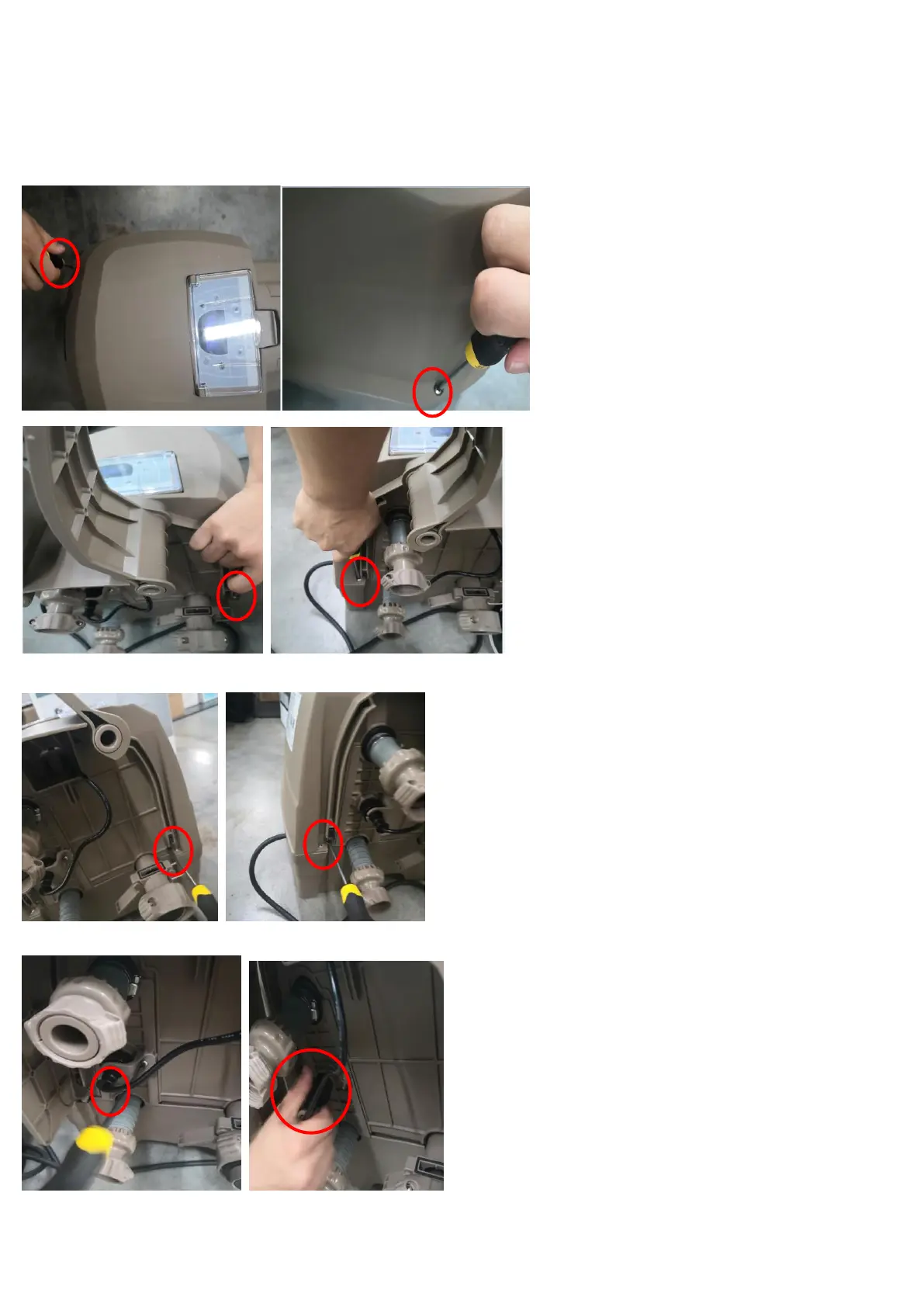

Opening the Control Base
Begin by removing 6 screws around the enclosure. Then take strength to pull out the connector. Open the
deflation outlet cap with the included bolt wrench and unscrew the one screw that link the outlet cap to
release it from the wire.
Removing 4 screws around the cover that hold enclosure
Removing 2 screws near on side, remove the panel from control bas
Release the screw and disconnect the black cord
To Next Page
