Intex 52" User Manual

(92IO) 52" 2-SECTIONS POOL LADDER ENGLISH 7.5” X 10.3” PANTONE 295U 05/28/2012
92A
SAVE THESE INSTRUCTIONS
Page 5
English

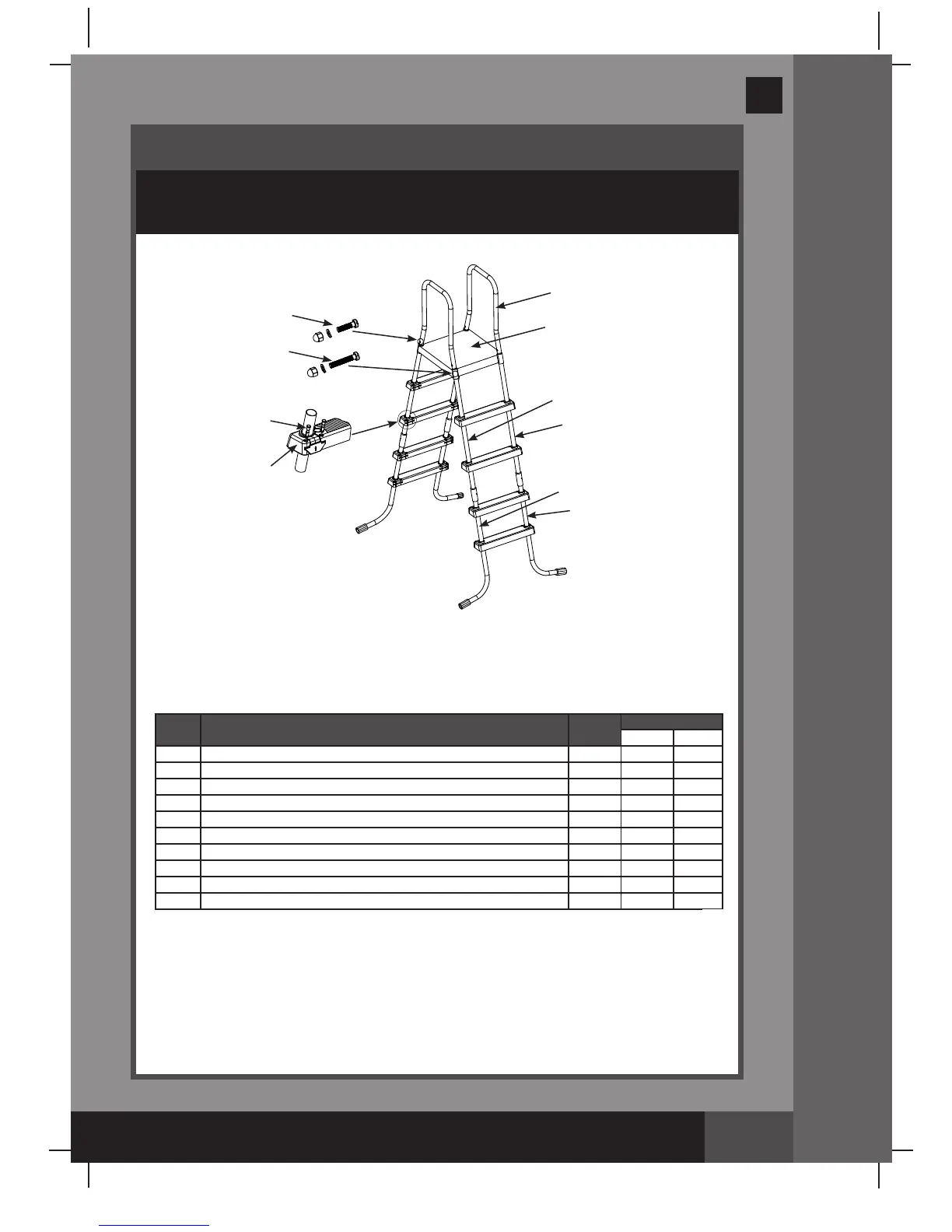

PARTS REFERENCE
PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
52" (132 cm) model
NOTE: Drawings for illustration purpose only. Actual product may vary. Not
to scale.
REF.
NO.
DESCRIPTION QUANTITY
SPARE PART NO.
#58975 #10904
1 U-SHAPED TOP RAIL 2 10815 10911
2 TOP PLATFORM 1 11145 11146
3 SHORT FASTENER FOR U-SHAPED TOP RAIL (WITH 1 EXTRA) 5 10810 10810
4 LONG FASTENER FOR TOP PLATFORM (WITH 1 EXTRA) 5 10227 10227
5 STEP MOUNTING PIN (WITH 2 EXTRA) 34 10349 10913
6 STEP 8 10348 10914
7 UPPER SIDE LEG (MARKED “A”) 2 11557A 11559A
8 UPPER SIDE LEG (MARKED “B”) 2 11557B 11559B
9 LOWER J-SHAPED SIDE LEG ( MARKED “A”) 2 11558A 11560A
10 LOWER J-SHAPED SIDE LEG ( MARKED “B”) 2 11558B 11560B
2
1
3
4
5
9
7
8
6
10
