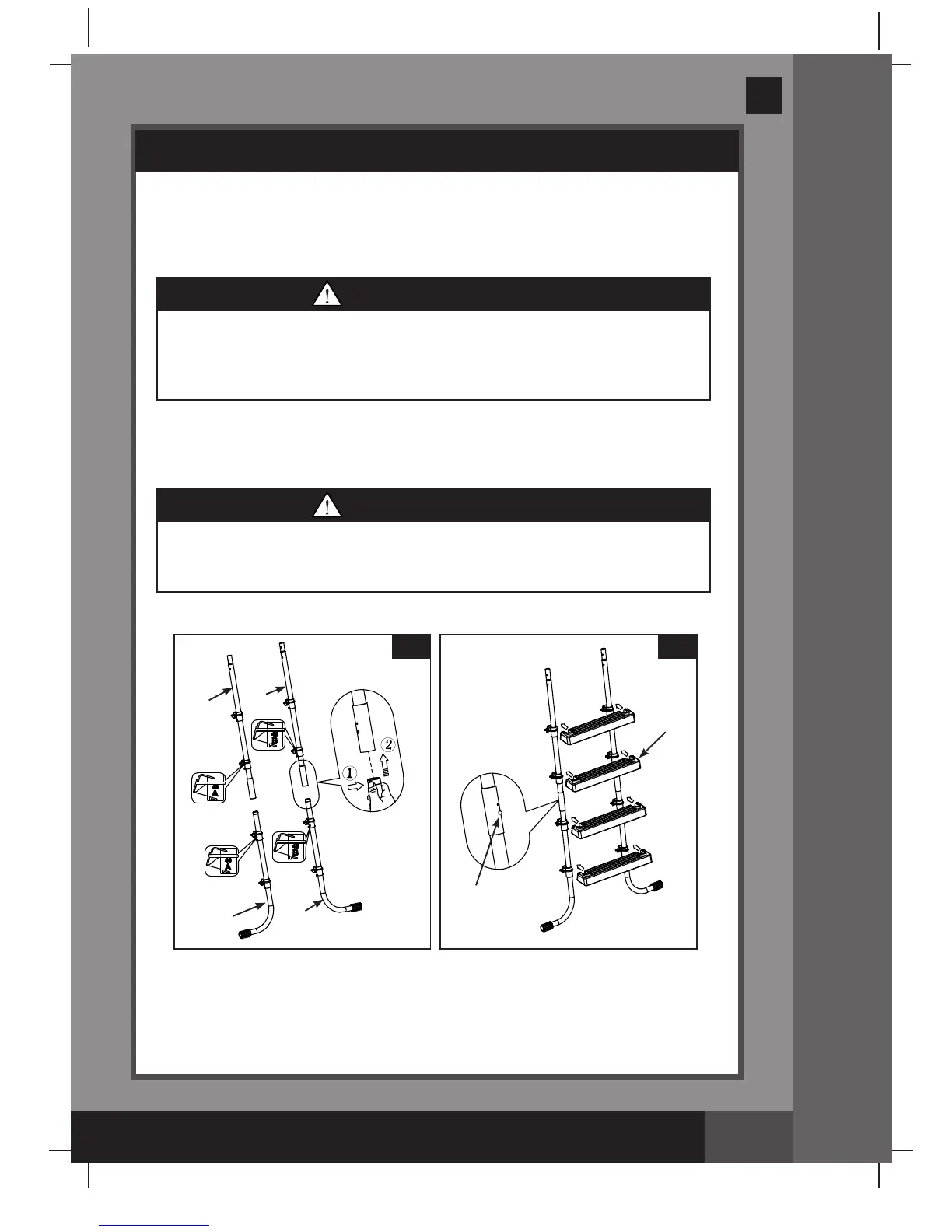

(92IO) 52" 2-SECTIONS POOL LADDER ENGLISH 7.5” X 10.3” PANTONE 295U 05/28/2012
92A
SAVE THESE INSTRUCTIONS
Page 6
English
SETUP INSTRUCTIONS
LADDER SETUP
TOOLS REQUIRED: One (1) Phillips screwdriver
One (1) pair of pliers or a small adjustable wrench
IMPORTANT: Do not fully tighten fasterners until last assembly operation.
A
B
1.1
9
10
WARNING
ASSEMBLE THE LEGS BEFORE INSTALLING THE LADDER STEPS.
FAILURE TO ASSEMBLE THE LEGS BEFORE INSTALLING THE STEPS
MAY ALLOW THE LEGS TO SEPARATE FROM THE LADDER DURING
USE, POSSIBLY RESULTING IN SERIOUS INJURY OR DEATH.
WARNING
INCORRECTLY CONNECTED PARTS MAY RESULT IN AN UNSTABLE
LADDER OR LADDER FAILURE WHICH CAN CAUSE FALLING AND
PERSONAL INJURY OR DEATH.
1. IDENTIFY PARTS: It is very important to lay out the parts correctly and
identify which parts connect together before starting the assembly.
Although some parts look alike, they are not always interchangeable.
Refer to the parts list.
2. LEG ASSEMBLY (refer to figures 1.1 through 1.2):
1.2
A
B
Spring pin
6
IMPORTANT: Make sure the legs are securely connected and locked. Check
the spring pins have snapped out before proceeding to the next step. Ensure
the J-shaped legs are pointing outwards before installing the steps.
8
7
Press,
hold and
insert
To Next Page
