Intex CS7111 User Manual

SAVE THESE INSTRUCTIONS
Page 2
(189PO) MODEL CS7111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/28/2013
English
189
PO
S AVE THESE INSTRUCTIONS
English
Page 8
The strainer grid prevents large objects from jamming and/or damaging the filter pump. If
your pool has an inflatable top ring, install the strainer, nozzle and plunger valve before
inflating the pool liner top ring. The part numbers here onward refer to the parts depicted in
the Parts List section of this manual. To install, do the following:

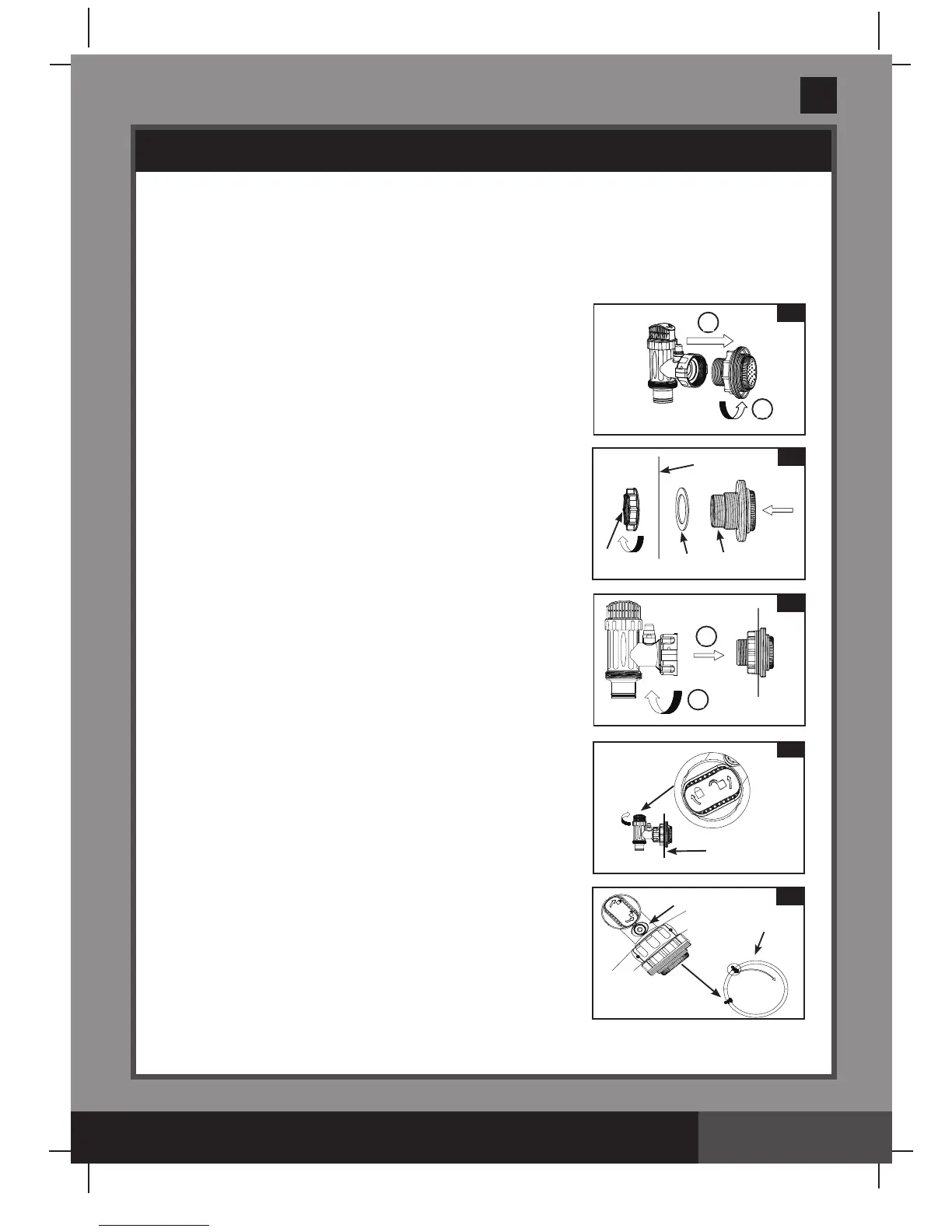

POOL OUTLET - STRAINER & PLUNGER VALVE SETUP (OPTIONAL)
1. In a counter-clockwise motion unscrew plunger valve union
from the threaded strainer connector (24) (see drawing 1).
Be careful not to lose the step rubber washer (21). Place the
plunger valve on the ground in a safe place.
2. In a counter-clockwise motion unscrew the strainer nut (22)
from the threaded connector (24). Leave the flat washer (23)
on the connector (24).
3. Install the strainer and plunger valve at the lower position of
pool outlet (marked "+"). From the inside of the pool liner
insert the connector (24) into one of the pre-cut holes with
the washer remaining on the connector to be placed against
the inside of the liner wall.
4. Before assembly, lubricate the threads with a petroleum
jelly. Then, with the flat side of the strainer nut (22) facing
the outside wall of the liner in a clockwise motion screw the
strainer nut (22) back onto the threaded connector (24) (see
drawing 2).
5. Finger tighten the strainer nut (22) onto the threaded
connector (24).
6. Grasptheplungervalveassembly.Makesurethestep 
washer (21) is in place.
7. In a clockwise motion screw the plunger valve union back
onto the threaded connector (24) (see drawing 3).
8. In a clockwise motion turn the plunger valve handle to close
position. Ensure the plunger valve is securely closed.
This will prevent water from flowing out during filling of
the pool (see drawing 4.1).
9. NOTE: Nevercoverthevacuumreleasevalve(35) unless it
is damaged or leaking. Replace the vacuum release valve
immediately.
2
23
24
INSIDE
LINER WALL
22
1
2
1
3
1
2
4.2
WATER
FLOW
POOL
35
4.1
INSIDE
LINER WALL
