Part No. 1090132 Rev F 41 Invacare Scooters

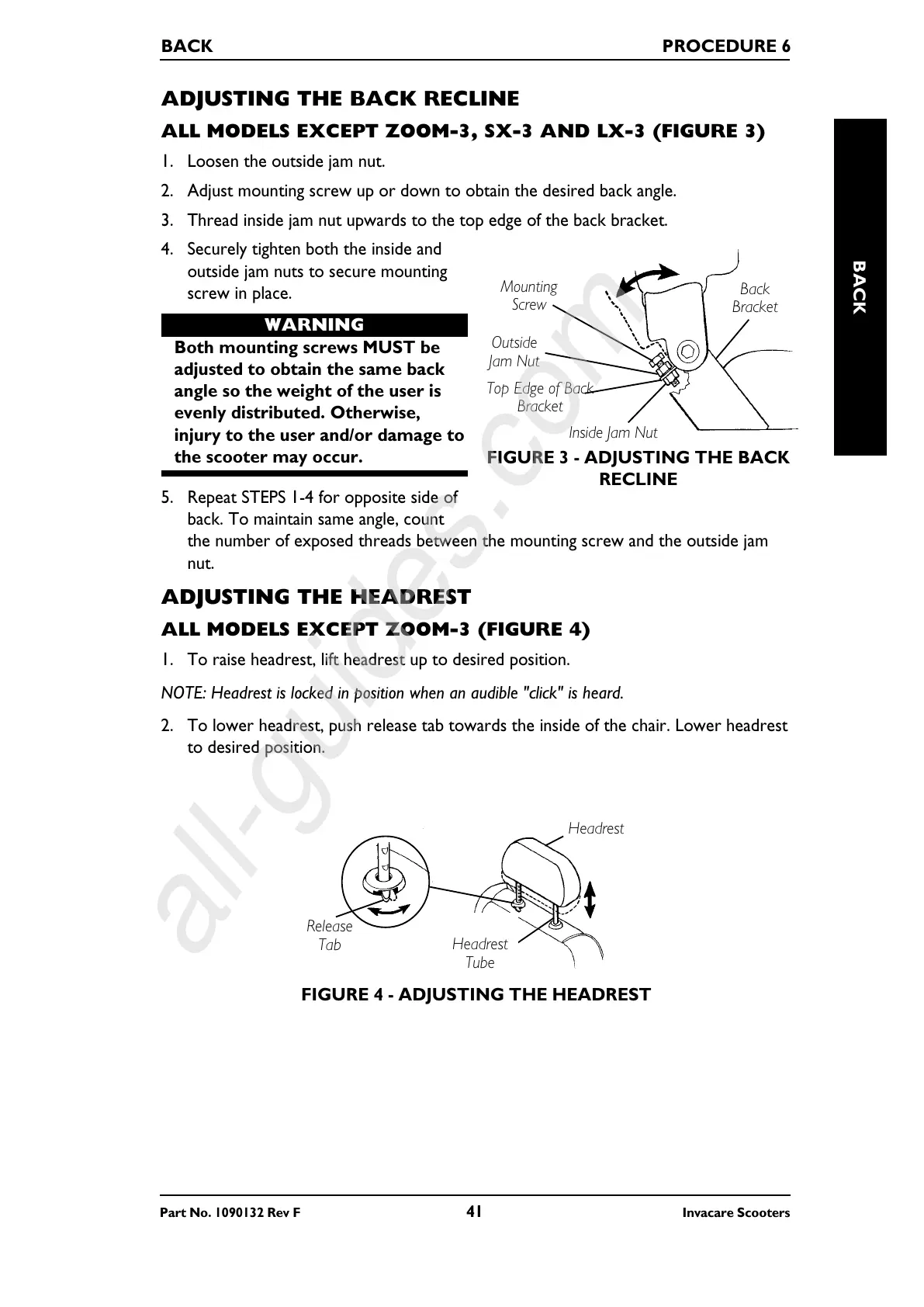

ADJUSTING THE BACK RECLINE
ALL MODELS EXCEPT ZOOM-3, SX-3 AND LX-3 (FIGURE 3)
1. Loosen the outside jam nut.
2. Adjust mounting screw up or down to obtain the desired back angle.
3. Thread inside jam nut upwards to the top edge of the back bracket.
4. Securely tighten both the inside and
outside jam nuts to secure mounting
screw in place.
WARNING
Both mounting screws MUST be
adjusted to obtain the same back
angle so the weight of the user is
evenly distributed. Otherwise,
injury to the user and/or damage to
the scooter may occur.
5. Repeat STEPS 1-4 for opposite side of
back. To maintain same angle, count
the number of exposed threads between the mounting screw and the outside jam
nut.
ADJUSTING THE HEADREST
ALL MODELS EXCEPT ZOOM-3 (FIGURE 4)
1. To raise headrest, lift headrest up to desired position.
NOTE: Headrest is locked in position when an audible "click" is heard.
2. To lower headrest, push release tab towards the inside of the chair. Lower headrest
to desired position.
BACK PROCEDURE 6
BACK
Outside
Jam Nut
Mounting
Screw
FIGURE 3 - ADJUSTING THE BACK
RECLINE
Inside Jam Nut
Top Edge of Back
Bracket
Back
Bracket
FIGURE 4 - ADJUSTING THE HEADREST
Release
Tab
Headrest
Headrest
Tube
