Invacare Scooters 48 Part No. 1090132 Rev F
NOTE: Use a rubber hammer if necessary to help position rear wheel completely onto the drive
shaft.
7. Install the hex screw through the MIDDLE mounting hole in the locking tab washer,
large washer and wheel hub. Securely tighten.
8. Visually inspect the hex screw and the NEW locking tab washer. Ensure one (1) of
the tabs on the NEW locking tab washer is parallel with one (1) of the flats on the
head of the hex screw (DETAIL B, FIGURE 2).
9. If one (1) of the tabs on the NEW locking tab washer is NOT parallel with one (1)
of the flats on the head of the hex screw, TIGHTEN the hex screw until the closest
flat and locking tab are parallel.
NOTE: TIGHTEN hex screw only. DO NOT loosen hex screw to make one of the tabs on the
NEW locking washer parallel.
10. Bend the parallel tab of NEW locking tab washer up tight against the hex screw
(FIGURE 2, DETAIL "B").
11. If necessary, repeat STEPS 1 - 10 for opposite rear wheel.
12. Install the rear shroud. Refer to REMOVING/INSTALLING THE REAR SHROUD in
this procedure of manual.
13. Install the seat. Refer to REMOVING/INSTALLING THE SEAT in PROCEDURE 5 of
PROCEDURE 9 SHROUD/WHEELS
SHROUD/WHEELS

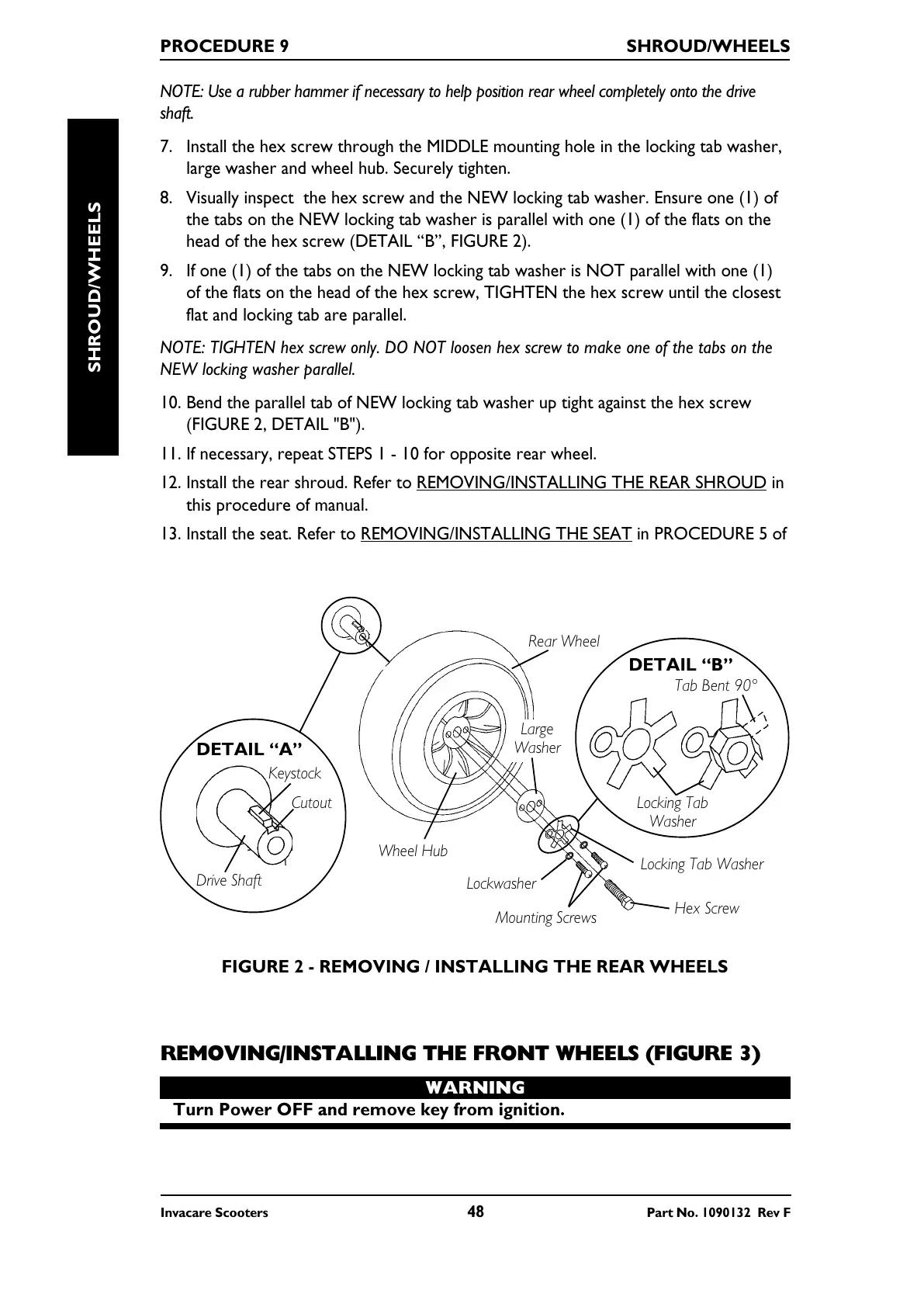

FIGURE 2 - REMOVING / INSTALLING THE REAR WHEELS
DETAIL A
Mounting Screws
DETAIL B
Locking Tab Washer
Wheel Hub
Tab Bent 90°
Hex Screw
Rear Wheel
Drive Shaft
Keystock
Cutout Locking Tab
Washer
Large
Washer
Lockwasher
REMOVING/INSTALLING THE FRONT WHEELS (FIGURE 3)
WARNING
Turn Power OFF and remove key from ignition.
