www.123filter.com
- Page 6 of 12 -

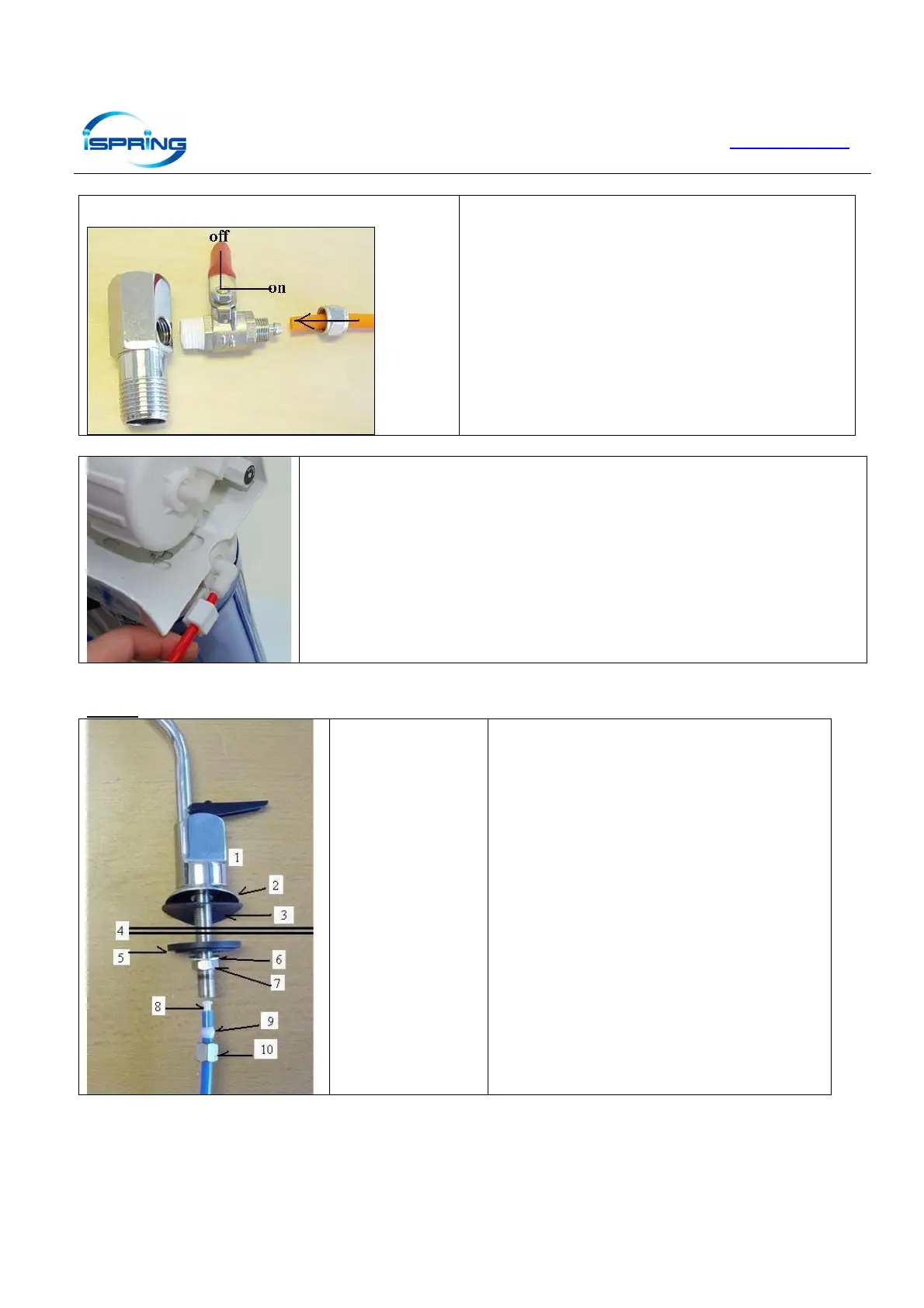

Feed water adapter with Ball valve
1. put Teflon tape on the thread, put only 3 turns
2. push tubing through the nut,
3. push tubing all the way into the connection,
4. screw on the nut tight using a wrench
NOTE:
For systems using compression fitting connections: When connecting tubing to the system, first,
you must unscrew the compression nut off the fitting, then pass the tubing through the compression
nut about 1”, then screw on to the fitting, then use a 5/8” wrench to tighten the nut until the thread is
not visible. Don’t over-tighten it.
For systems using quick-connect fitting connections:
Insert the tubing into the fitting until it stops. Make sure the blue C-shape saddle piece is on the
fitting. This piece locks the tubing and prevents it from slipping off.
To remove the tubing off the quick fitting, remove the blue C-shape saddle first, push in the fitting to
release the spider lock, then remove the tubing at the same time.
STEP 2
: INSTALLING THE DISPENSING FAUCET
1. faucet base
2. small washer
+ chrome plate
3. large washer
4. kitchen sink
5. bottom plate
6. lock washer
7. lock nut
8. tube insert
9. sleeve
10. faucet nut
drill 5/8” hole on
the sink
The faucet should be positioned with aesthetics, function
and convenience in mind. An ample flat surface is required
for the faucet base so that it can be drawn down tight. Also
check the under sink area of the desired location to see if
there is ample space to complete the faucet installation.
If the space is not available on the upper sink area, the
faucet could be positioned on the counter top at the edge of
the sink. Be sure to watch for obstructions below, i.e.,
drawers, cabinet walls, support braces, etc. If the counter
top is ceramic tile, the method for drilling the hole should
be the same as for porcelain sink.
NOTE: The sink drilling process, although not
complicated, requires a certain amount of caution and
forethought. Porcelain sink can chip if care is not exercised.
