Isuzu 3LD2 User Manual

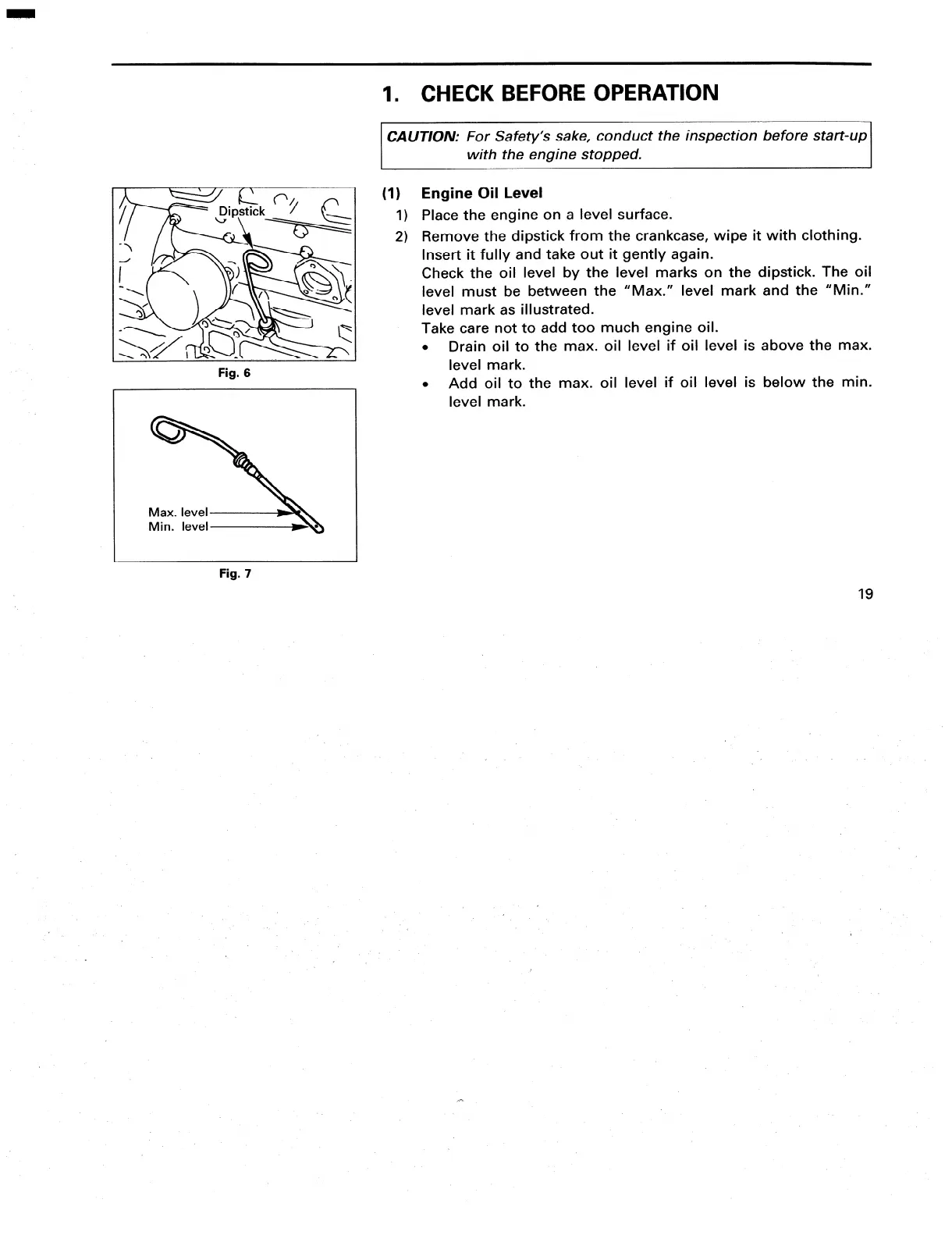

1. CHECK BEFORE OPERATION
Fig. 6
(1) Engine Oil Level
1) Place the engine on a level surface.
2) Remove the dipstick from the crankcase, wipe it with clothing.
Insert it fully and take out it gently again.
Check the oil level by the level marks on the dipstick. The oil
level must be between the “Max.” level mark and the “Min.”
level mark as illustrated.
Take care not to add too much engine oil.
l Drain oil to the max. oil level if oil level is above the max.
level mark.
l Add oil to the max. oil level if oil level is below the min.
level mark.
Fig. 7
CAUTION: For Safety’s sake, conduct the inspection before start-up
with the engine stopped.
19
