ITL SERVICE MANUAL

E-8

D.1.2 Assembly

Some of the following pictures may not show exactly

your machine, but the process

Clean with care the housing (15).

Check the wear condition of the bearings seats.

Insert the seal ring (25) into the housing (15) with the special tool

CA715619 and a hammer.

Lubricate the seal ring (25).

See: sec. C.4 and sec E.1. (4WD mechanical drop box).

Respect indicated assembly position.

Note: the springs (35) and (29) are not equal.

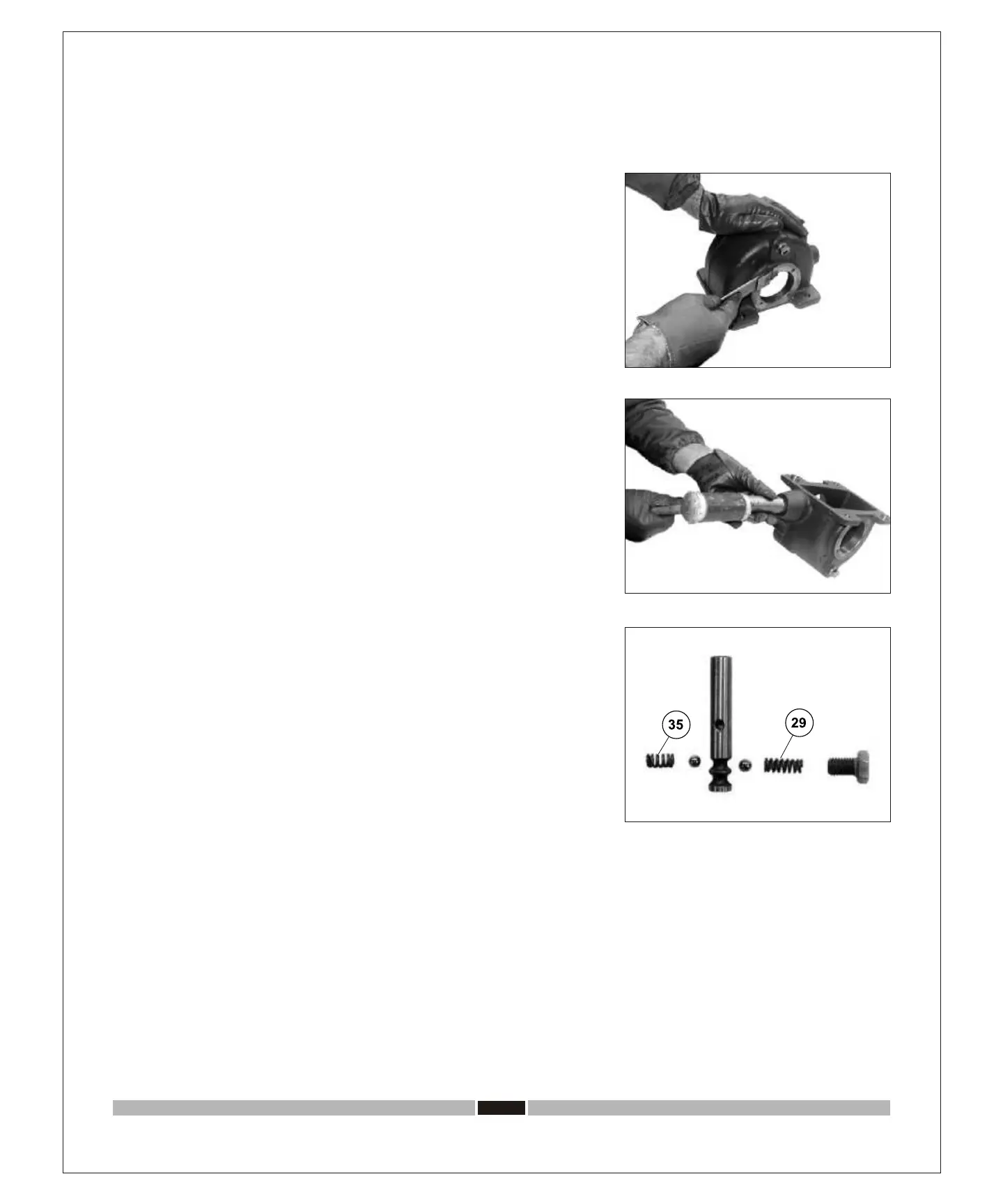

FIG. 1

FIG. 2

FIG. 3
