3. SEAT ATTACHMENT
a) Spring suspension seat
– Make sure the seat is bolted securely to the
suspension spring.
– Bolt the suspension spring securely to the center
of the seat plate using hardware provided in the
tractor loose parts bag.
– Locate the two plastic clips and attachment
hardware in the tractor loose parts bag. Attach
the clips to the bottom of the seat plate and
secure with the throttle cable passing through the
clips as shown.
b) Deluxe suspension seat
– Drop the four bolts at the base of the seat
suspension into the corresponding holes in the
seat plate.
– Locate the two plastic clips in the tractor loose
parts bag. Place these two clips on the front two
seat bolts protruding through the seat plate,
guiding the throttle cable through them as shown.
Secure all four seat bolts with the nuts provided.
c) Seat Switch (either seat) - Route the seat switch
cable up through the hole in the seat plate and
attach to the connector at the base of the seat.
4. Tractor and deck tire pressures should be 14 p.s.i. (1 kg/cm
2
). Adjust if necessary.
5. Check battery electrolyte level and charge. Use protective equipment such as, but not limited to, goggles,
face shield, rubber gloves, and apron.
6. Before starting the machine:
– Fill the fuel tank with diesel fuel.
– Top up the engine sump with lubricating oil if low.
– Top up the radiator with a 50% antifreeze solution if low.
– Top up the hydraulic system with oil if low.
– Lubricate at designated points (refer to the lubrication section in this manual).
– Read and understand the Operation & Safety manual, paying particular attention to the safety, control and
operation information.

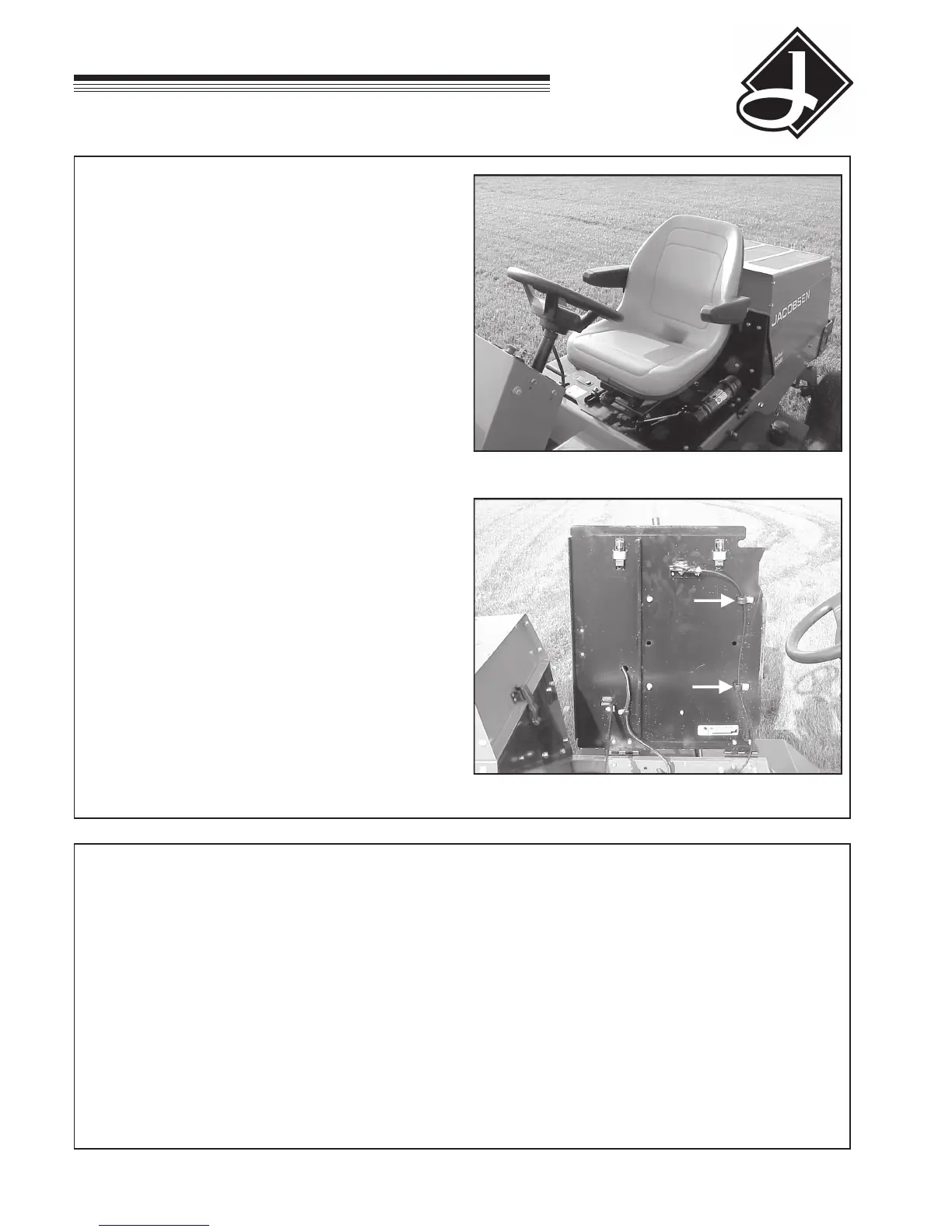

Bottom side of seat plate
Deluxe Suspension Seat
ASSEMBLY AND SETUP
To Next Page
