Jacuzzi J-315 Manual

56
• Flow Switch (LED Models)
To remove a sensor/switch wire from the either J2 or J3 connectors,
insert the end of a paper clip into the slot corresponding with the
wire to be removed. This will depress the tine on the pin allowing
the wire to be pulled from the harness.
IMPORTANT!
When reinstalling the sensor/switch, make sure the tine on the pin
is lifted so the sensor wire will lock into the connector body.

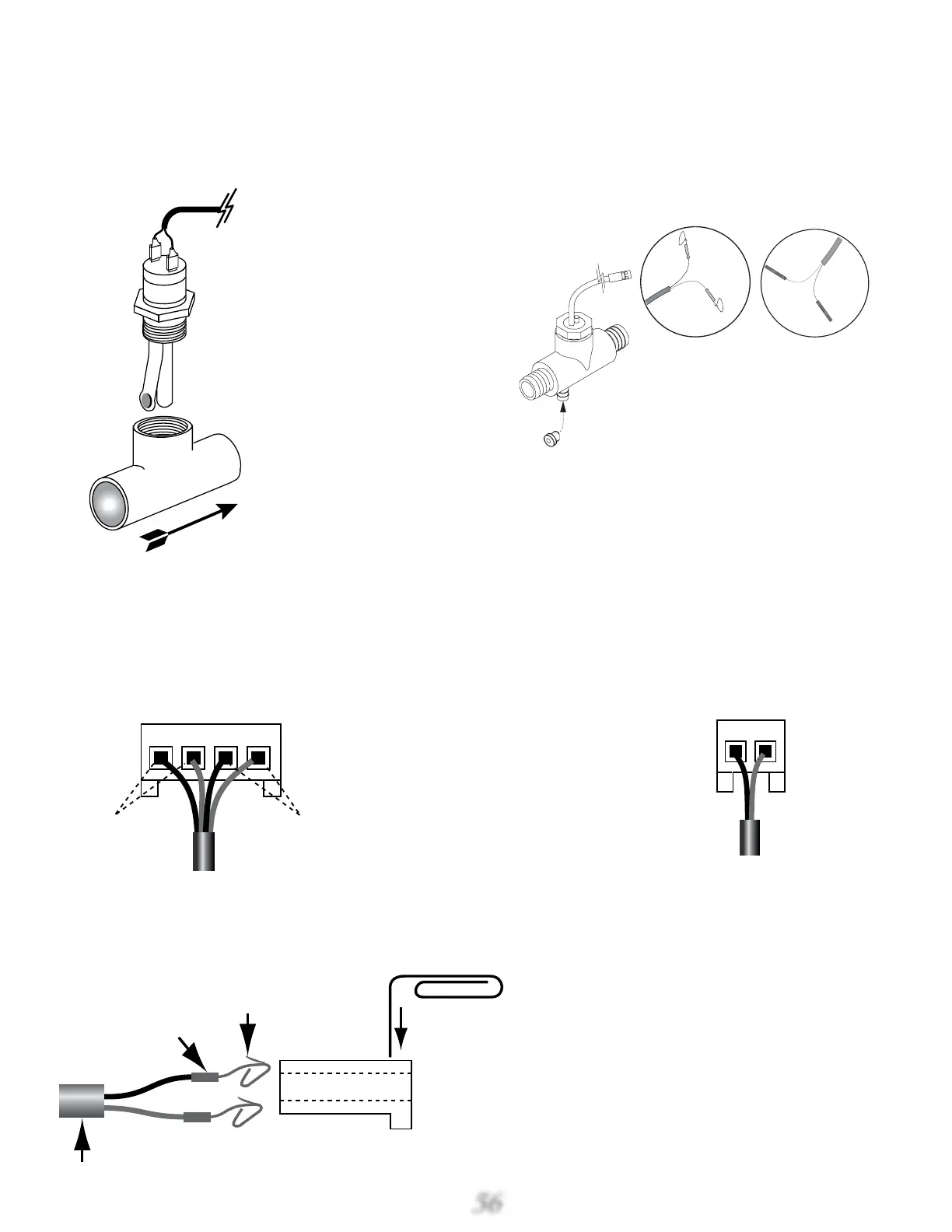

A13 Flow Switch Illustration (All LED Models)
Flow Switch #6560-852
Compatibility: All 2006+ LED Models
Connection: This flow switch style has spade connectors at top for easy cable removal for electronic troubleshooting.
A14 LED Sensor Harness Diagram
Hi-limit
Sensor wires
Temperature
Sensor wires
J3 Connector (Cable Side)
Shown while Plugged into Circuit Board
J2 Connector (Cable Side)
Shown while Plugged into Circuit Board
Connector
(Side View)
TINE
Hi-limit Sensor, Temperature Sensor,
Flow Switch Wires
PIN
Paper Clip
Hi-limit
Sensor wires
Temperature
Sensor wires
J3 Connector (Cable Side)
Shown while Plugged into Circuit Board
J2 Connector (Cable Side)
Shown while Plugged into Circuit Board
Connector
(Side View)
TINE
Hi-limit Sensor, Temperature Sensor,
Flow Switch Wires
PIN
Paper Clip
Hi-limit
Sensor wires
Temperature
Sensor wires
J3 Connector (Cable Side)
Shown while Plugged into Circuit Board
J2 Connector (Cable Side)
Shown while Plugged into Circuit Board
Connector
(Side View)
TINE
Hi-limit Sensor, Temperature Sensor,
Flow Switch Wires
PIN
Paper Clip
*6540-101 Plug Drilled with 3/32"
Hole Required for All 2002+
2-Pump/3-Pump Spas.
Cable Has
Curled Finger
Connectors
Cable Has
Box End
Connectors
6560-860
J-325, J-335 & J-345 Models
FLOW
6560-852
J-315 Models Only
