Page 15
3.4 Heater Connection
The heater connection section applies to all
heaters or heat pumps with thermostatic circuitry
of 24 VAC or less (see pages 15 thru 17 for brand
specific installation).
NOTE If you are connecting a heater with thermostatic
circuitry of 120 VAC or greater, do not connect
to the green, 10-pin Terminal Bar. Instead,
connect the heater to a high voltage relay in
the Power Center and plug the spare relay into
the Electric Heater relay socket located on the
upper right hand corner of the Power Center
PCB.
3.4.1 JandyBrandHeaterConnections
1. Connect two #14 gauge wires, designed for
use in hot environments, to the #1 and #2
terminals on the green, 10-pin Terminal Bar.
2. Connect the other ends of the #14 gauge
wires from Step 1 to the Fireman's Switch
terminal bar in place of the factory installed
wire loop.
3. Do not disconnect high limit or pressure
switches.
4. Turn the heater thermostat(s) to maximum
setting.
5. Turn the heater switch to the ON position.
For dual thermostat heaters turn switch to
Spa position.

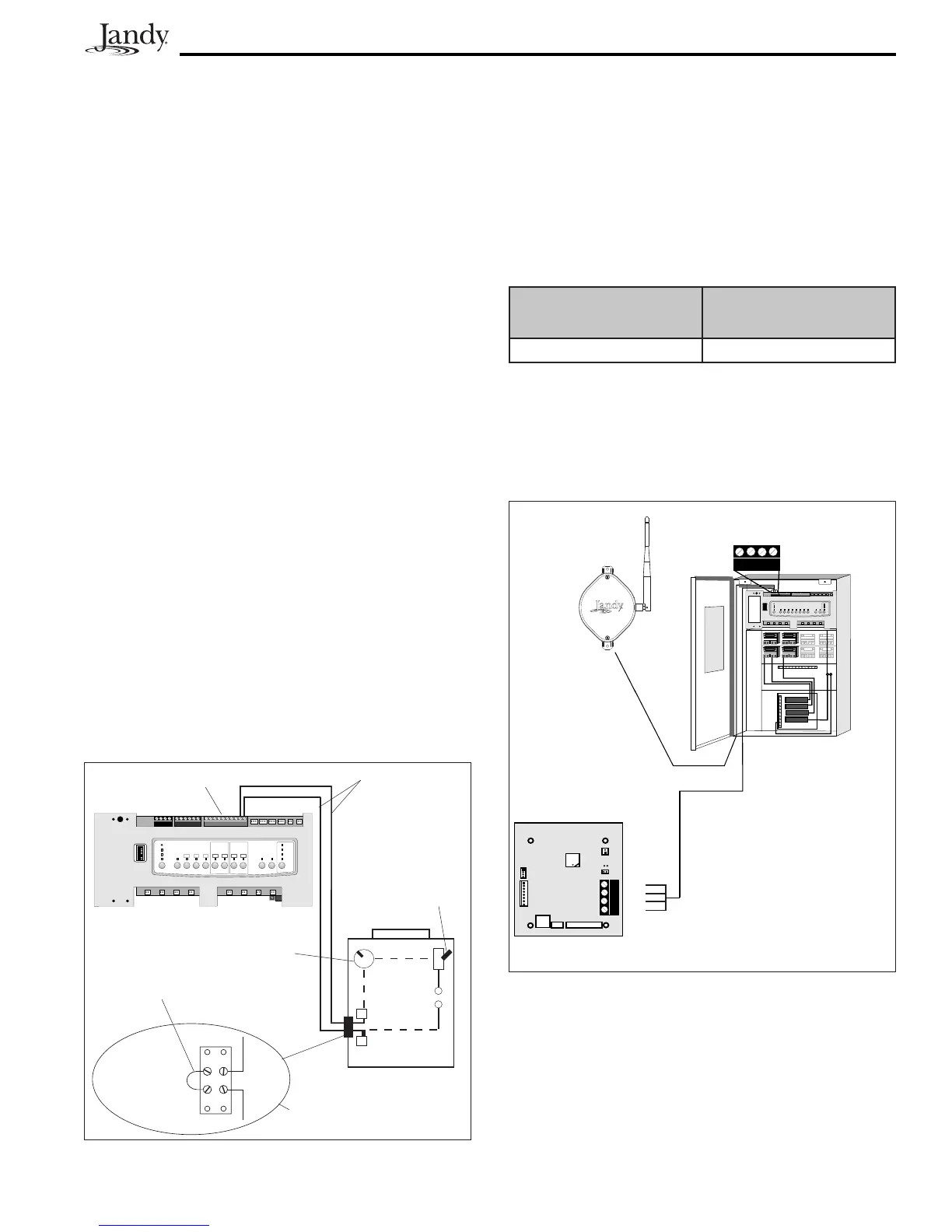

Figure 9. Lite2 Heater Connection
Power Center PCB/Bezel
Heater
Wiring
#14
Gauge
Wire
Green 10-pin
Terminal Bar
Heater
Thermostat To
Max.
Heater Toggle
Switch To On
Terminal 1
Terminal 2
Heater Fireman's Switch
Connection
Factory
Installed
Wire Loop
3.4.2 GuidelinesforSophisticatedDiagnostic
CommunicationtoLXHeaters
1. Remove the LX GUI from the heater.
2. ConrmtheLXandAquaLinkRSsoftware
revisions are compatible (see table).
3. Run a 4-conductor cable from the LX GUI
red, 4-pin connector to the RS power Center
red, 4-pin connector (see Figure 10).
LX Software Revision AquaLink RS Software
Revision
C10, C11 or later PDA 1.0 or later
NOTE If connecting more than two (2) items to the RS
Power Center red, 4-pin connector, a Multiplex
PCB is required.
OPTIONAL
4 3 2 1
4 3 2 1
RED
BLK
YEL
GRN
RED
BLK
YEL
GRN
4-Conductor
Wire
LX GUI
RS Power
Center
Figure 10. LX Heater Connection to Power Center
PDA
J-box
To Next Page
