JBL 4344 MKII User Manual

Ideally the systems should be placed at least three feet from any walls. The
height, at the bottom of the Lens assembly, should be at ear level. The two
speakers should be equidistant from your primary listening position; the
distance should be determined by the distance between the speakers. We
recommend that the angle between the speakers, at the listening position,
be between 45° to 60°. For example, if the speakers are 8' apart, your
listening position should be 8'–12' from each speaker. To widen the area in
which the best stereo image will be perceived, turn the speaker to face the
primary listening position (Figure 2).
It is normally recommended that the
4344MkII loudspeakers be
positioned so that the ultrahigh-frequency transducers are towards the out-
side. In some listening environments, however, the imaging characteristics
may be improved by positioning the ultrahigh-frequency transducers
towards the inside. We suggest you experiment with the positioning of
your loudspeakers to determine the ideal placement in your listening room.
Placement
No.
8
3'
10 – 15
3'3' 3'3'
10 – 15
3'3'3'3'
Ear level when
seated in
listening position

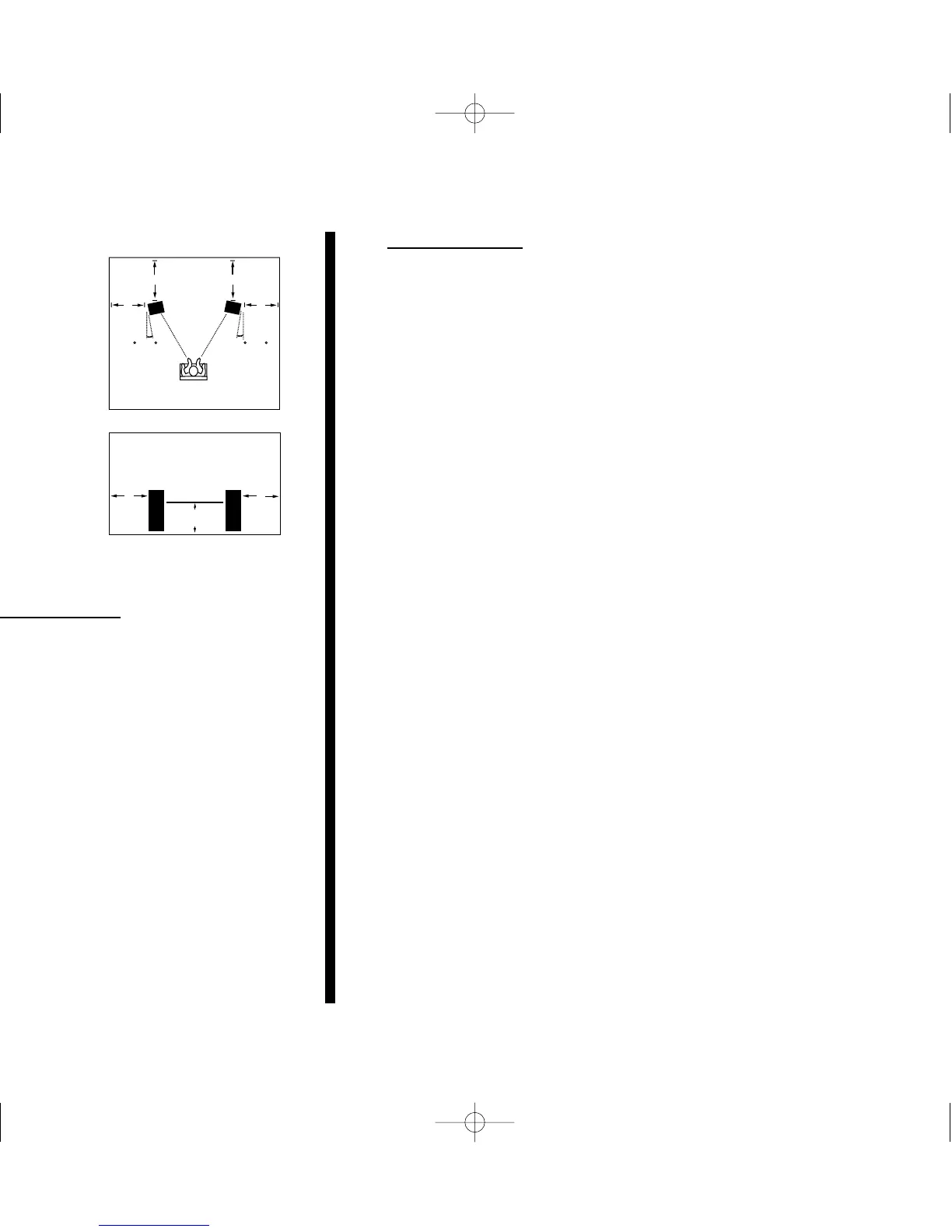

Figure 2 Placement
Position Top View
Position Front View
3'
4344 MK 11 Manual 7/21/98 3:18 PM Page 7

JBL 4344 MKII Specifications

General

Frequency Response	30 Hz - 20 kHz
Impedance	8 ohms
Enclosure	Bass-reflex
Sensitivity	93dB
Woofer	15-inch
Midrange	10-inch
High Frequency Driver	1-inch
Ultra High Frequency Driver	1" (2.5 cm)
Crossover Frequencies	10kHz
Dimensions (H x W x D)	635 x 381 x 356 mm

Summary

System Components

Low-Frequency Transducer

Details the 15" woofer, voice coil, cone, and cooling system for clarity and speed.

Mid-Frequency Transducer

Describes the 10" midrange driver, its voice coil, and role in the vocal range.

High-Frequency Transducer

Explains the 2" titanium dome compression driver and horn/lens assembly.

Ultrahigh-Frequency Transducer

Covers the 1-3/4" compression driver for ultra-high frequencies above 8000Hz.

Dividing Networks

Battery Replacement

Speaker Placement

Speaker Connections

Bi-Wiring

Reduction of Intermodulation

Explains how separate cables reduce unwanted high-frequency modulation.

Frequency-Optimized Cables

Suggests using cables suited to specific frequency ranges for optimal performance.

Amplifier Flexibility

Highlights the flexibility in amplifier choice offered by bi-wiring.

Bi-Wiring Connections

Bi-Amping Connections

Maintenance and Service

System Specifications
