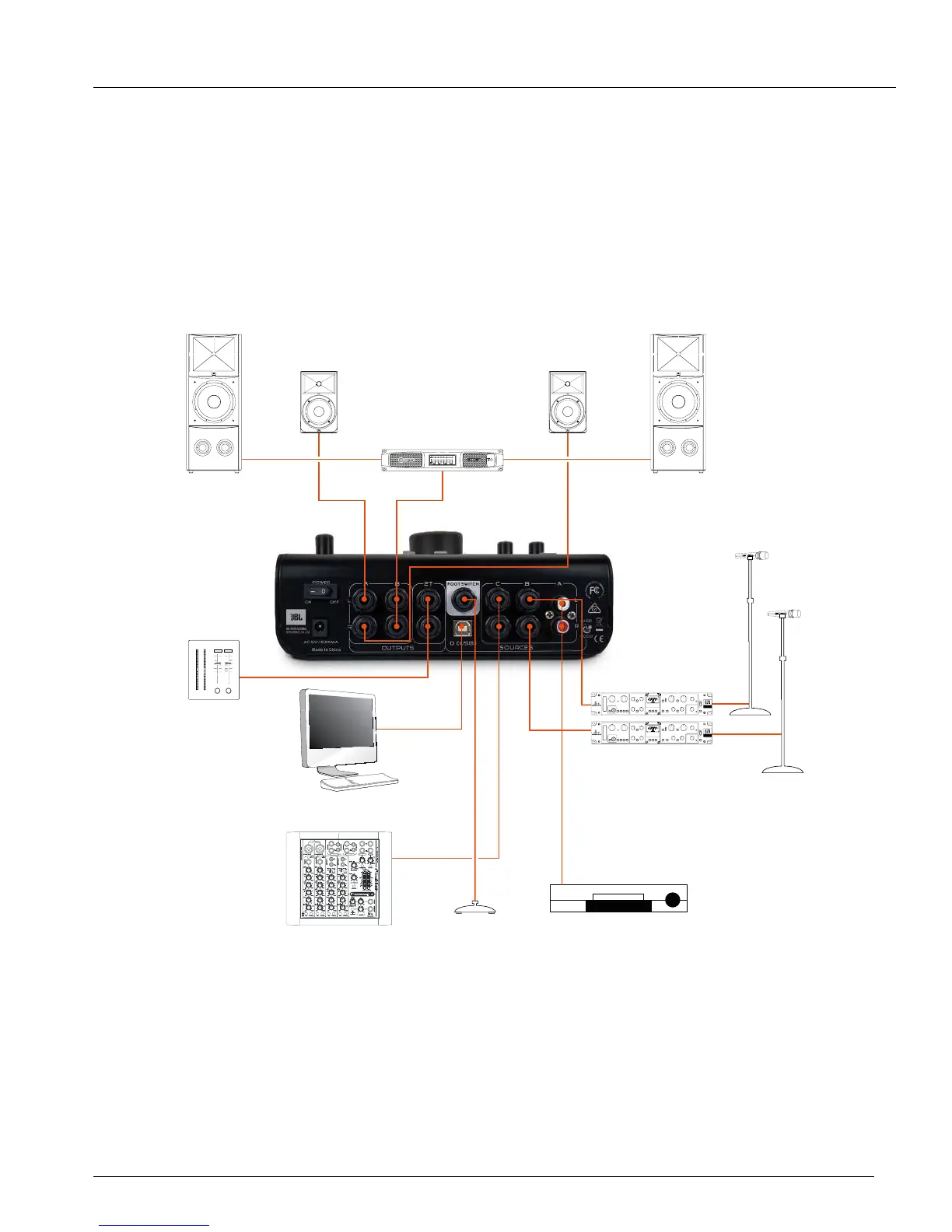

Applications
The ACTIVE-1 provides essential monitor controls in a professional control room. In this
application, ACTIVE-1 allows monitoring using both large and near-eld studio monitors. A
mixer, 2 microphone preampliers and a DVD player can be recorded by a computer audio
recording system. The computer recording system is connected using the USP I/O that also
allows monitoring of the computer. An additional two-channel recorder is connected to the 2T
outputs allowing stereo recording.
When connecting PASSIVE speakers, you must rst connect the output of the ACTIVE-1 to a power amplier and
then connect the amplier to the speakers.
Do not connect the OUTPUT of a power amplifier to the ACTIVE-1 INPUTS!
