JBL Active-1 User Manual

7

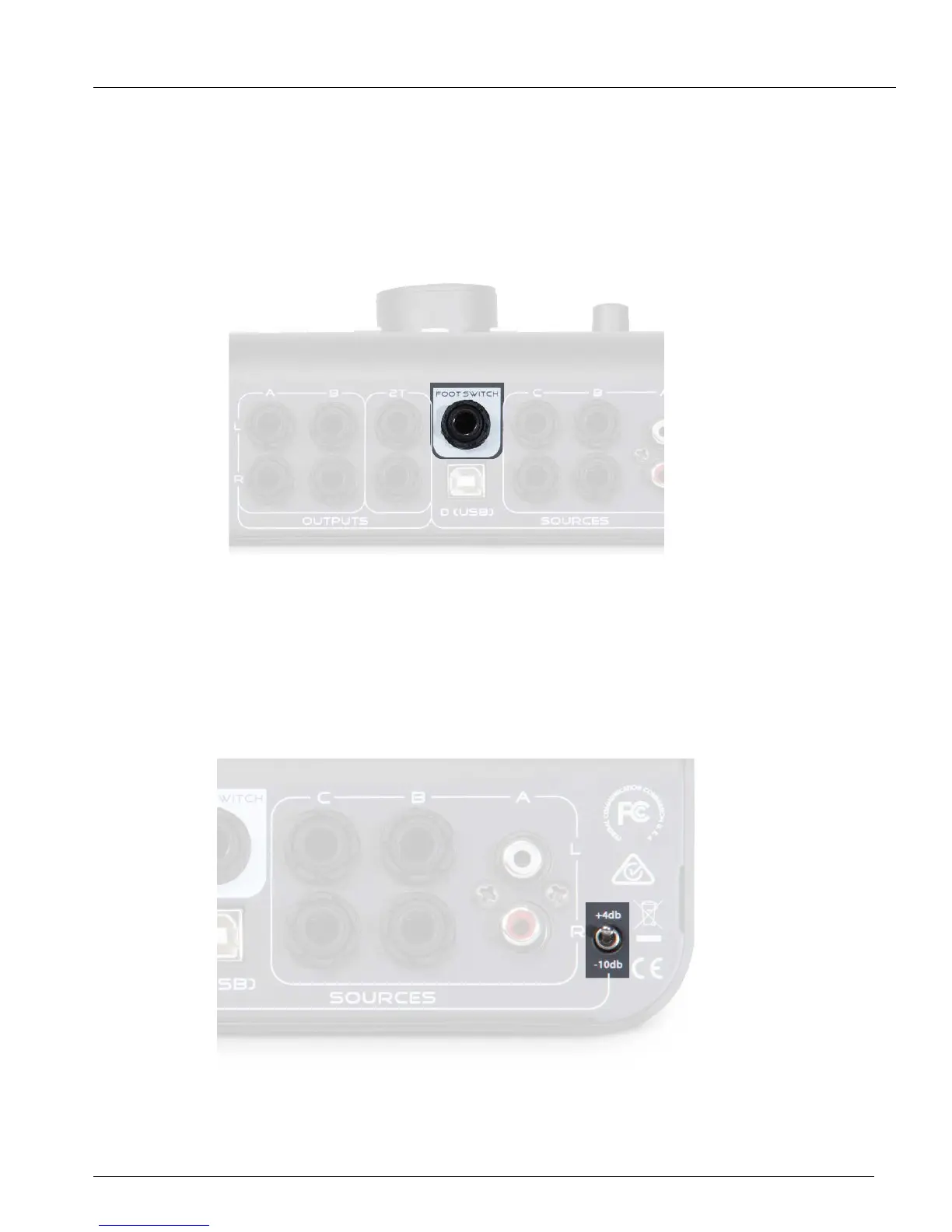

TALK BACK Foot Switch Jack
You can connect a foot switch with two-conductor (Tip/Sleeve) plug to this 1/4-inch (6.5mm) jack. (optional and not
included with ACTIVE-1*) Depressing the foot switch will activate the Talk Back system.
* A momentary PRESS-AND-HOLD type of foot pedal is commonly used with electronic musical keyboards.
Alternately, if you prefer a PRESS-ON, PRESS-OFF (latching-type) foot switch, these are commonly used to
activate effects processing in guitar ampliers. Consult with your dealer for options.
+4/-10dB Output Level Switch
This switch is used to select the output level to allow compatibility with professional and consumer products with
varied input sensitivities.
