JBL Balboa SUB10 User Manual

5

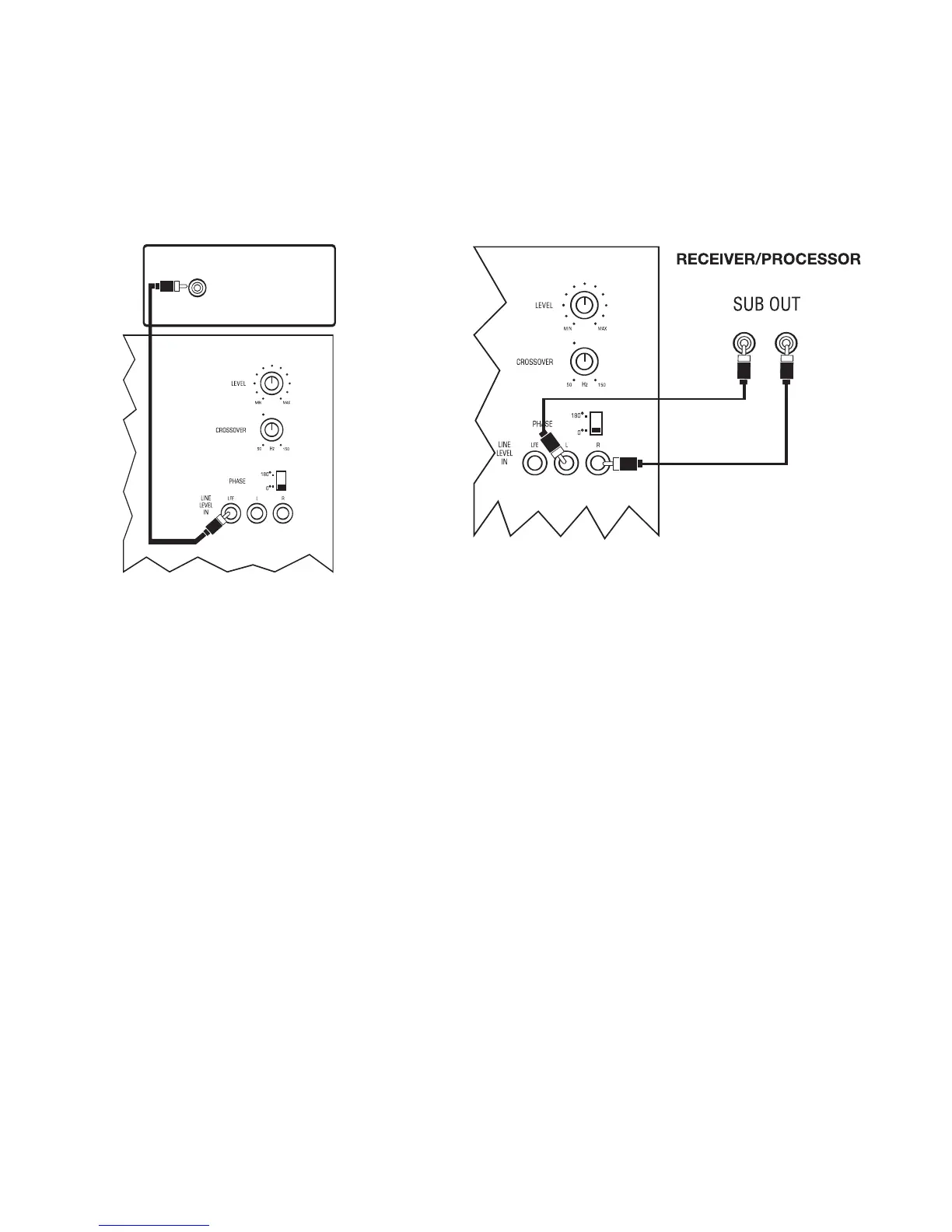

SUBWOOFER CONNECTIONS
C
hoose the Subwoofer Connection
That Is Most Suitable for Your
Receiver/Processor
If you have a Dolby
®
Digital or DTS
®
receiver/processor with a
low-frequency-effects (LFE) or subwoofer output:
If your receiver/processor does not contain a Dolby Digital or DTS
processor but has a subwoofer output:
SUBWOOFER OR
LFE OUTPUT
L R
NOTE: Some receivers have one subwoofer output.
In that case, it is recommended that you use a Y connector
(not included) to maximize performance.
BALBOA Sub10.OM.qxd 8/2/06 3:22 PM Page 6

JBL Balboa SUB10 Specifications

Audio Specifications

frequency response	30Hz – 150Hz
amplifier output	100 watts RMS
peak dynamic power	225 watts
crossover frequency	50Hz – 150Hz
driver size	10" (250mm)

Weight and Dimensions

dimensions	20-1/4" x 14-1/16" x 15-13/16" (514mm x 357mm x 402mm)
weight	35 lb (16kg)
