Control
®

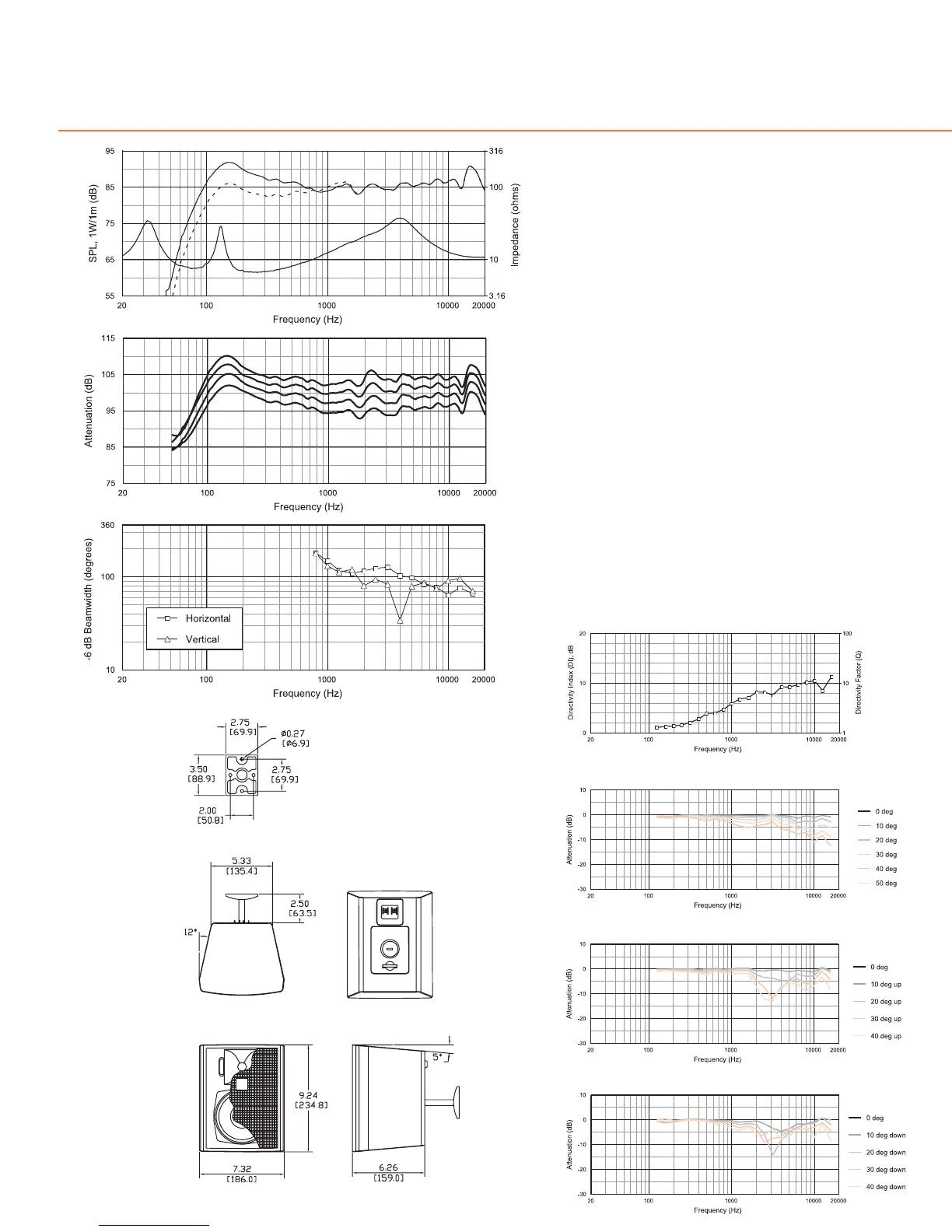

25AV Shielded Indoor/Outdoor Monitor
Frequency Response, on axis in
half-space (2, solid line) and
full-space (4, dotted line), in
thru (8 ohm), with Input
Impedance
Frequency Response, in half-
space with 70.7V input, taps #1
through #4. For 100V input, raise
each curve 3 dB.
Beamwidth
Directivity Index, Q
Horizontal Off Axis Frequency Response
Vertical Off Axis Frequency Response (up)
Vertical Off Axis Frequency Response (down)
