7
GAIN
LIMITSIGNAL SIGNAL
GAIN
MAIN
IN 1
MONITOR
SUB
BLUETOOTH
MASTER
VOLUME
MIC
LINE
IN 2
THRU
EQ +
EQ
PRESETS
BOOT
SPEECH
SYNC
FRONT LED
POWER
ON OFF
MIC
LINE
EON 615
CH1 CH2
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
FUSE TYPE: T3.15L250V
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING.
430W Max
100-120VAC 50/60Hz
230-240VAC 50/60Hz
MODEL: EON615
SERIAL NO:
JBL PROFESSIONAL
NORTHRIDGE, CA. USA
A HARMAN I NTERNATIONAL COMPAN Y
DESIGNED AND ENGINEERED IN THE USA
Made in
Mexico
H
A
B
C
D
E
F
G
I
J
K
M
L
Front LED On/Off
Bluetooth Sync
Bluetooth Boot
EQ Presets
Mic/Line Button
XLR-1/4” Combo Inputs
XLR Male Loop Thru
Power Switch
Power Button
EQ+ On/Off
CH1 & CH2 Gain
Master Volume
Limit LED
SET OUTPUT LEVEL
1. Using the EQ Preset (C) button, select the appropriate
preset to match your application
2. Set the gain level for the input using the Channel Gain
(K) controls. A good starting point is to set the pot at
12 o’clock.
3. Slowly turn Master Volume (M) to the right until the
desired volume is reached.
POWER IT ON
1. Confirm the Power Button (I) is in the OFF position.
2. Connect the supplied power cord to the power receptacle on
the rear of the speaker.
3. Connect the power cord to an available power outlet.
4. Flip on the Power Switch (G) and press the Power Button (I) to
ON position, the White Power LED (H) on back and front of the
speaker will illuminate
PLUG IN THE INPUTS
1. Turn Channel Gain Controls (K) and Master Volume
Control (M) all the way to the left before connecting
any inputs
2. Connect XLR or TRS cable from audio source to CH1
or CH2 inputs (E)
3. Select Mic or Line via the Mic/Line Button (D)

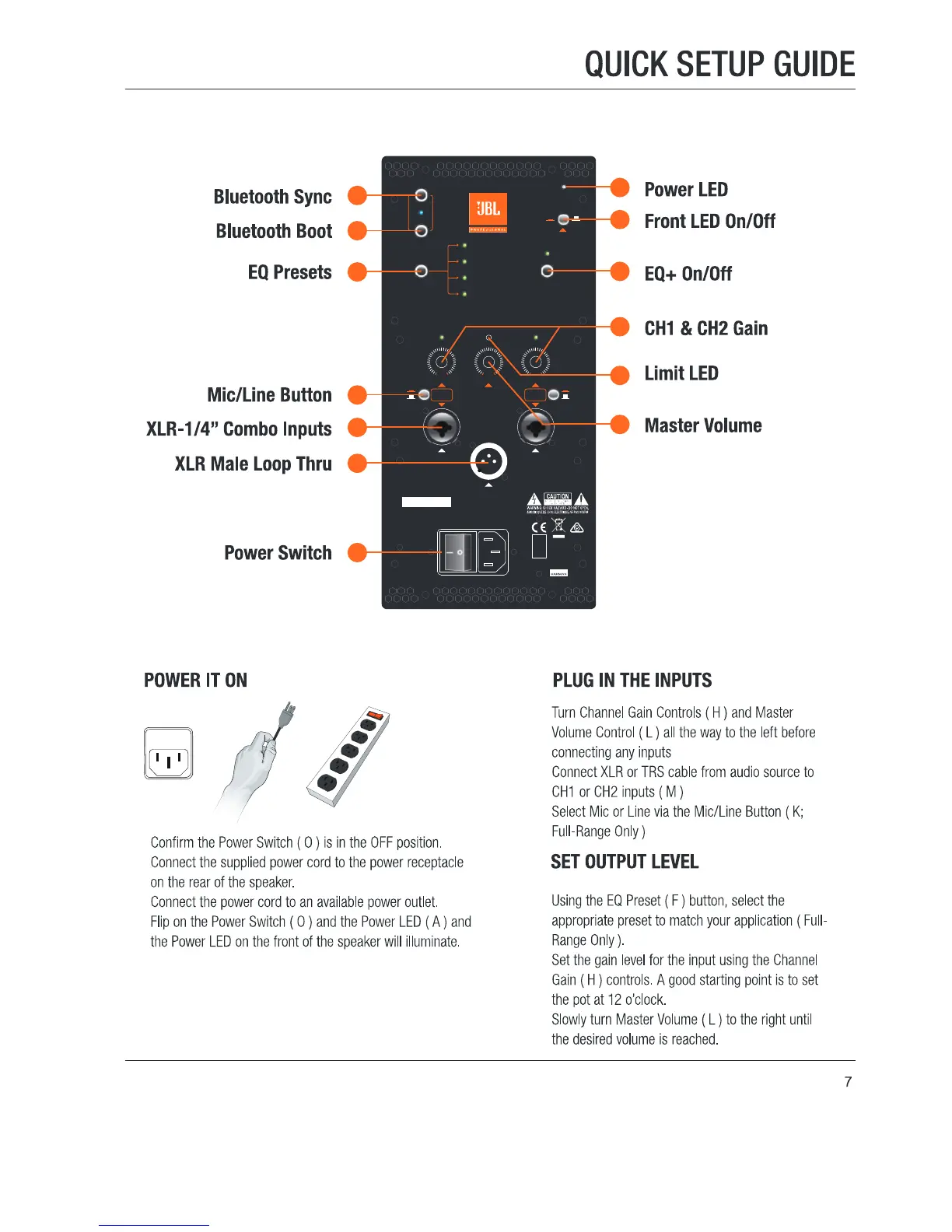

QUICK SETUP GUIDE
