JBL EON 615 User Manual

15

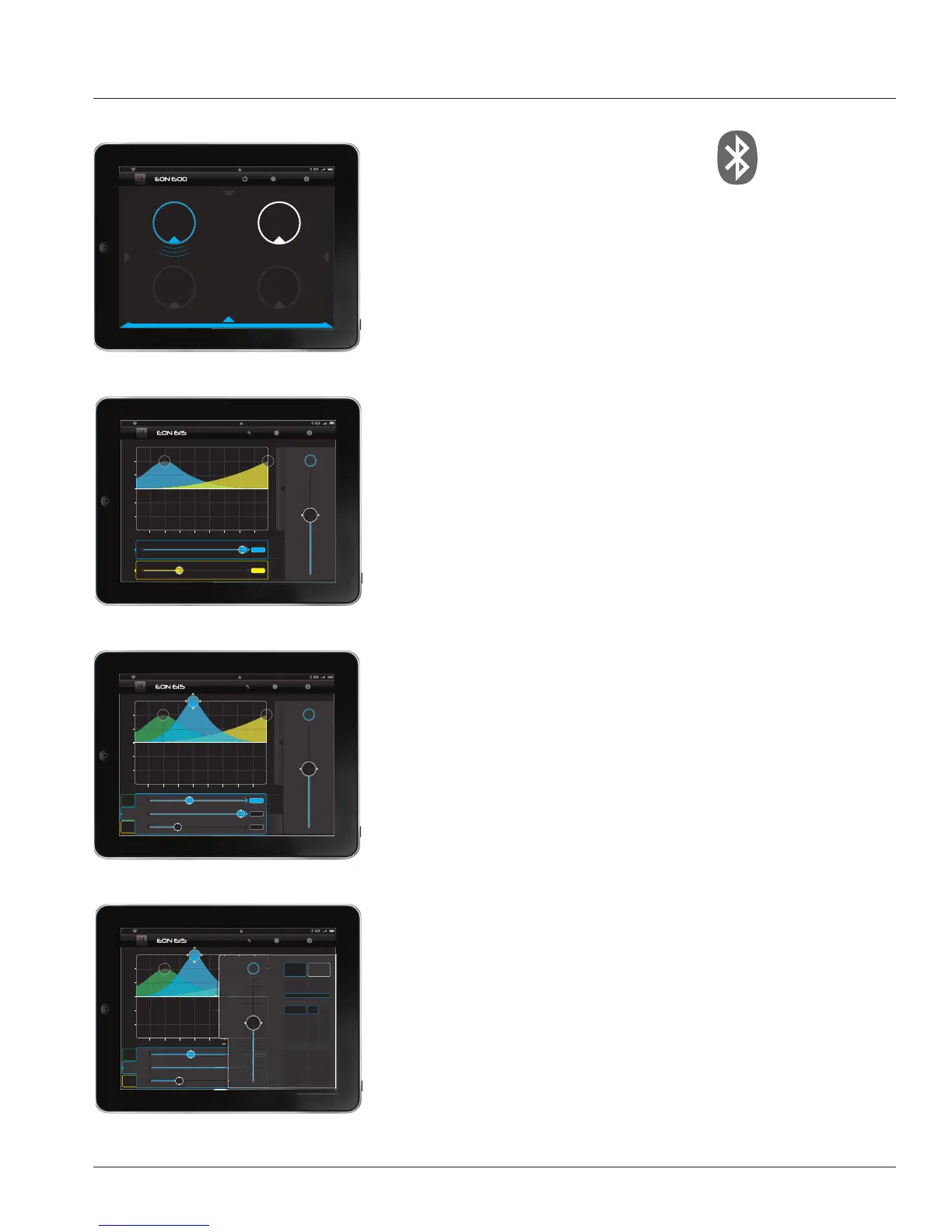

BLUETOOTH INTEGRATION
Speaker Discovery
iPad 8:35 PM
SETTINGS INFO
DEMO
FRONT
LEFT
RIGHT
BACK
GUITAR : 01
SETUP
OFFLINE
LOCATE
EON : 02
ONLINE
OFFLINE
LOCATE
Bass & Treble Controls
iPad 8:35 PM
20
12
6
0
-6
-1 2
-20
20 40 80 200 500 1K 2K 5K 10K 20K
SETTINGS INFO
ON
GUITAR : 01
TONE
BASS
100
50
BASS
HOME
100 50
TONE
20
12
6
0
-6
-1 2
-20
03
VOLUME
PRESETS MENU
PEQ
FLAT
Features
• Bluetooth speaker discovery (up to 4 at one time)
• Bass and Treble control (Low and High Shelf EQ)
• PEQ + (3 parametric EQ fi lters with control over Frequency, Gain and Q)
• Master Volume control
• Recall back panel Factory Presets (Main, Monitor, Sub and Speech)
• Save and Recall User EQ Presets
Bluetooth App Available Nov 1
st
Visit jblpro.com/EON600 to register
• Supports iOS & Android
• Bluetooth audio NOT supported
PEQ+ Controls
iPad 8:35 PM
20
12
6
0
-6
-1 2
-20
20 40 80 200 500 1K 2K 5K 10K 20K
SETTINGS INFO
ON
GUITAR : 01
LOW
MID
HIGH
FREQ
GAIN
Q
500Hz
20dB
10ct
20dB
HIGH
MID
HOME
12dB
80Hz
12dB
5K
500Hz
LOW
20
12
6
0
-6
-1 2
-20
03
VOLUME
PRESETS MENU
BASIC
EQ
FLAT
Preset Management
iPad 8:35 PM
20
12
6
0
-6
-1 2
-20
20 40 80 200 500 1K 2K 5K 10K 20K
SETTINGS INFO
LOW
MID
HIGH
FREQ
GAIN
Q
500Hz
20dB
10ct
20dB
HIGH
MID
HOME
12dB
80Hz
12dB
5K
500Hz
LOW
BASIC
EQ
FLAT
2K
5K
10K
20K
500Hz
20dB
10ct
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
12dB
BASIC
EQ
FLAT
5K
5K
ON
GUITAR : 01
20
12
6
0
-6
-1 2
-20
12dB
500Hz
20dB
10ct
10K
10K
500Hz
500Hz
20dB
10ct
500Hz
20dB
10ct
03
VOLUME
CLOSE
SPEAKER SELECTION
USER PRESETS
SPEAKER FUNCTION SELECTION
COPY SETTING
GUITAR : 01
STEVE
02
03
04
SAV E
SAV E
SAV E
SAV E
LOAD
LOAD
LOAD
LOAD
EON : 02
OFFLINE OFFLINE
MONITOR SUB
MAIN LIVE

JBL EON 615 Specifications

General

Max SPL Output	127 dB
Coverage Pattern	90° x 60°
LF Driver	15-inch
Dimensions	707 x 439 x 365 mm (27.8 x 17.3 x 14.4 in)
Weight	17.69 kg (39 lbs)
System Type	Self-powered 15", two-way, bass-reflex
Crossover Frequency	1.8 kHz
Enclosure	Polypropylene
Frequency Response	50Hz - 20kHz
Frequency Range	55Hz - 20kHz
HF Driver	1-inch
Input Impedance	10 kΩ
LF Driver Details	15" Woofer
HF Driver Details	JBL 2414H-1 1" compression driver
Suspension / Mounting	M10 suspension points
Inputs	2 x XLR-1/4" combo
Outputs	XLR
