JBL EON 615 User Manual

16

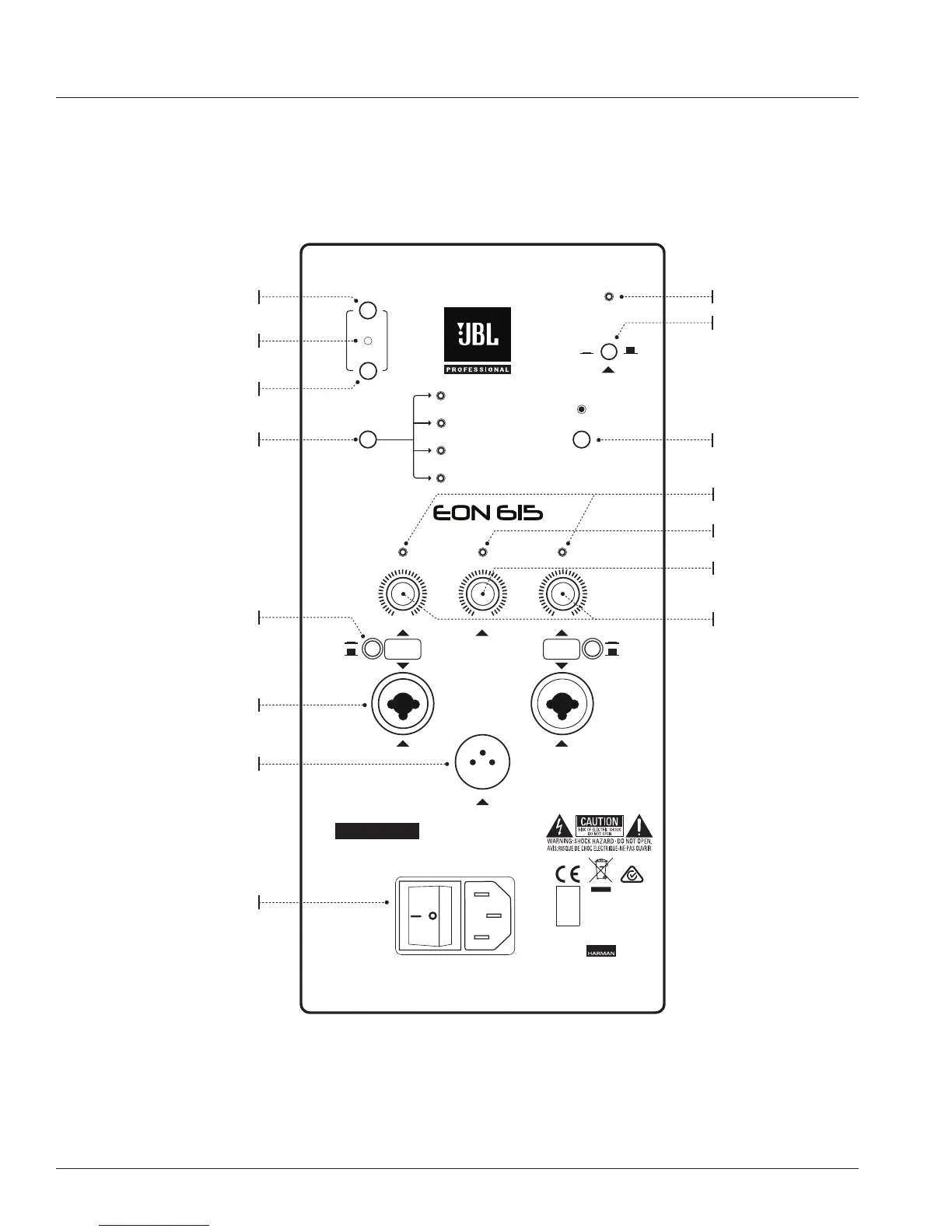

BACK PANEL
GAIN
LIMITSIGNAL SIGNAL
GAIN
MAIN
IN 1
MONITOR
SUB
BLUETOOTH
MASTER
VOLUME
MIC
LINE
IN 2
THRU
EQ +
EQ
PRESETS
BOOT
SPEECH
SYNC
FRONT LED
POWER
ON OFF
MIC
LINE
CH1 CH2
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
FUSE TYPE: T3.15L250V
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING.
430W Max
100-120VAC 50/60Hz
230-240VAC 50/60Hz
MODEL: EON615
SERIAL NO:
JBL PROFESSIONAL
NORTHRIDGE, CA. USA
A HARMAN INTERNATIONAL COMPANY
DESIGNED AND ENGINEERED IN THE USA
Made in
Mexico
Bluetooth Sync
Bluetooth Indicator
Bluetooth Boot
EQ Presets
Mic/Line Toggle
XLR-1/4" Combo Inputs
XLR Male Loop Thru
Power Switch
Master Volume
Ch1 & Ch2
Signal Indicators
Limit Indicator
Ch1 & Ch2 Gain
EQ+ Button
Front LED On/Off
Power LED

JBL EON 615 Specifications

General

Max SPL Output	127 dB
Coverage Pattern	90° x 60°
LF Driver	15-inch
Dimensions	707 x 439 x 365 mm (27.8 x 17.3 x 14.4 in)
Weight	17.69 kg (39 lbs)
System Type	Self-powered 15", two-way, bass-reflex
Crossover Frequency	1.8 kHz
Enclosure	Polypropylene
Frequency Response	50Hz - 20kHz
Frequency Range	55Hz - 20kHz
HF Driver	1-inch
Input Impedance	10 kΩ
LF Driver Details	15" Woofer
HF Driver Details	JBL 2414H-1 1" compression driver
Suspension / Mounting	M10 suspension points
Inputs	2 x XLR-1/4" combo
Outputs	XLR
