1.4 ADVANCED PINOUT CONFIGURATION

The WHAM2 pinout can be configured differently than above for certain applications. This customization can be performed at the time

of production or during product assembly.

The following two diagrams and two tables describe how to configure the WHAM2 for different operations by changing jumpers and

components on the modules themselves.

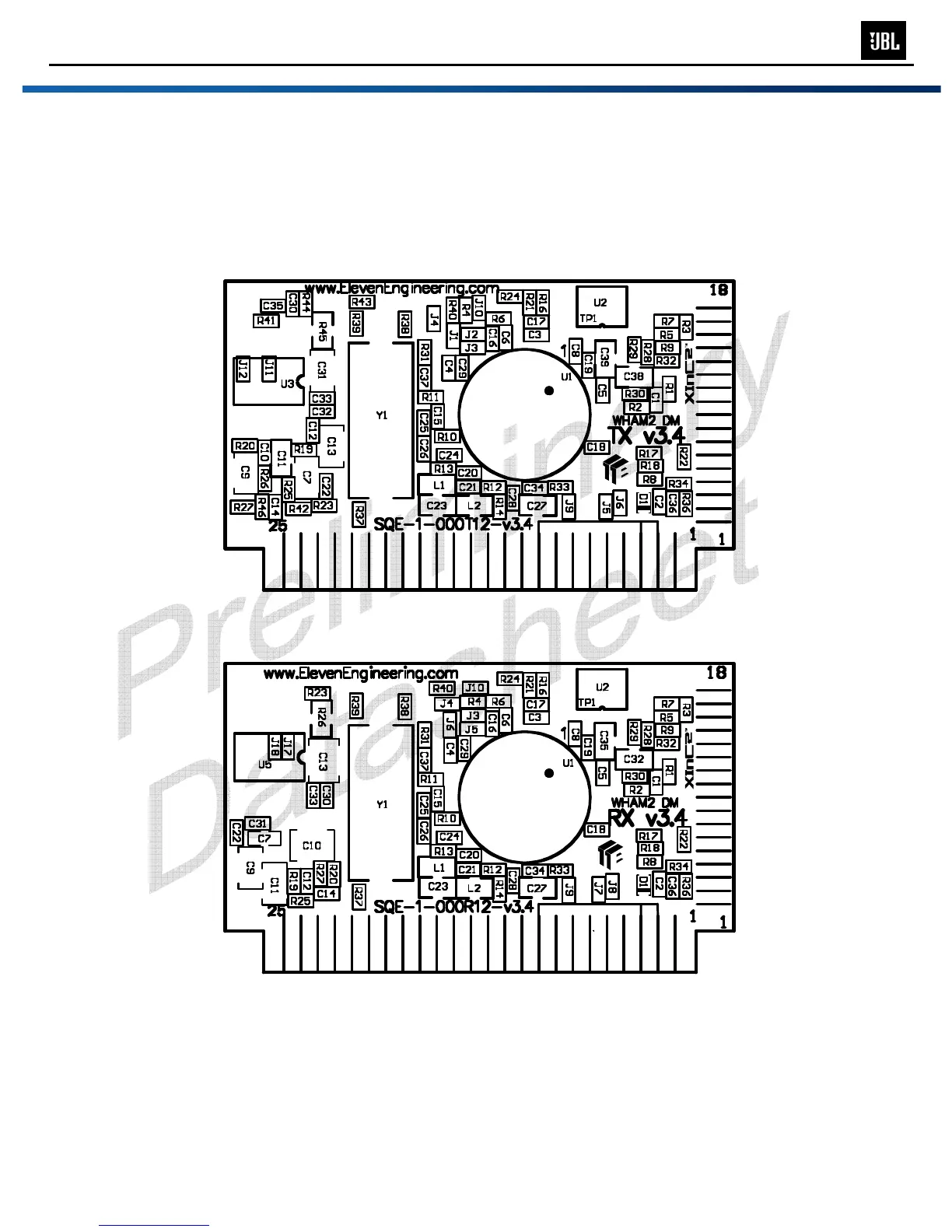

Figure 1 – WHAM2 Transmitter DM Layout

Figure 2 – WHAM2 Receiver DM Layout
