JBL EVOi.sys User Manual

CONNECTING THE POWER
5
HOOK-UP/SETUP
BALANCED UNBALANCED
BALANCED
LINE MIC
POWER
AC/DC 12-16 V
20 mA
Set: XXXX
SNR: XXXXX
For IM-free frequencies
refer to manual
BALANCED UNBALANCED
BALANCED
LINE MIC
POWER
AC/DC 12-16 V
20 mA
Set: XXXX
SNR: XXXXX
For IM-free frequencies
refer to manual

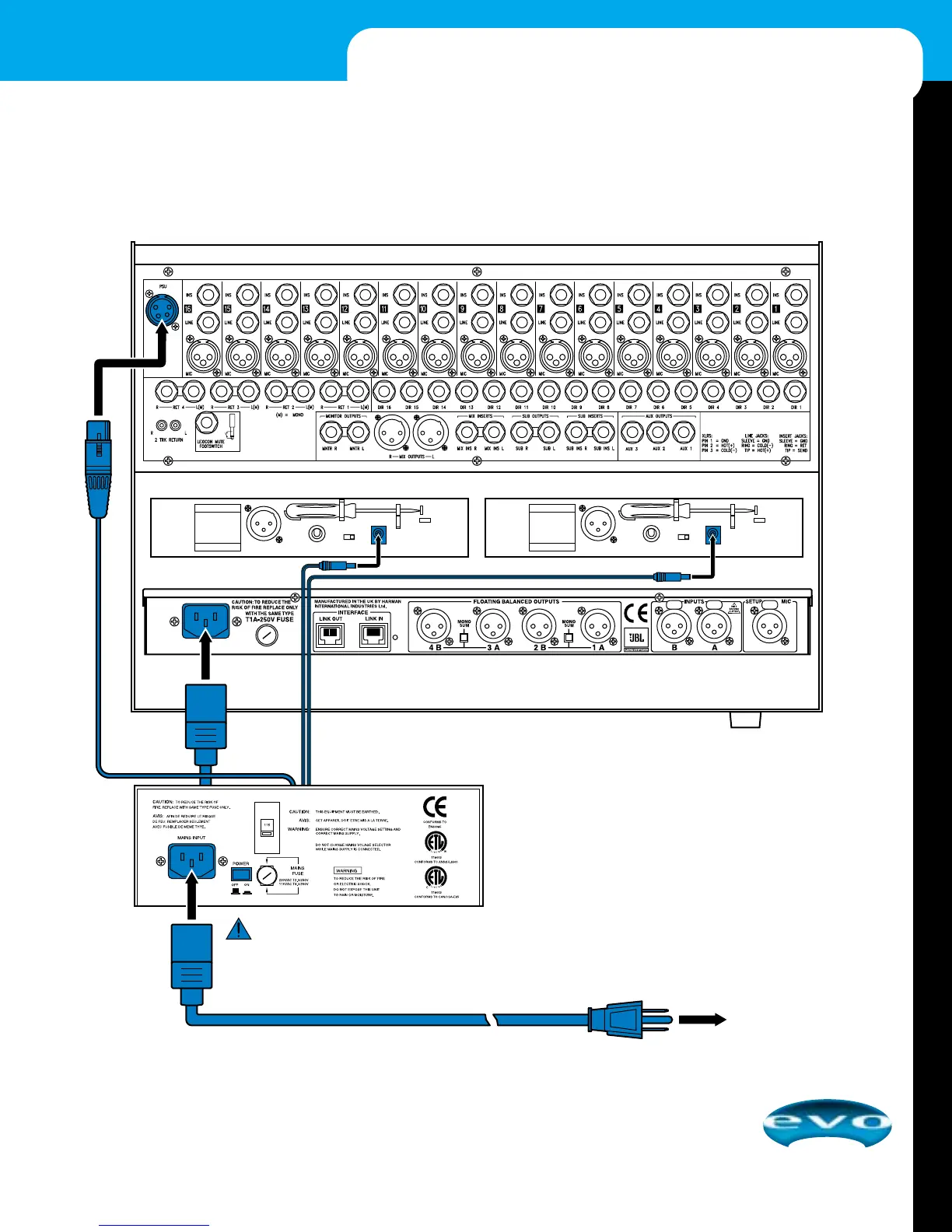

EVOi.sys Rear
(NOTE: For clarity, the Power Supply is shown outside the frame.)
Power Supply
(shown outside of frame)
NOTE: Power Cables Are
Attached Behind The
Power Supply.
IMPORTANT: Make sure POWER is off
before making connections.
To AC Outlet
Power Cord (supplied)

JBL EVOi.sys Specifications

General

Brand	JBL
Model	EVOi.sys
Category	Speaker System
Language	English
