MCU M016GA
TAS5709 AUDIO
DSP+AMPLIFIER
I2S
ADC AKM5358A
BT MODULE
BM830
FM AP420
(SI4702)
AUDIO DETECT
LM358
ANALOG MUX
HC4052
AUX IN
KEYPAD
LCD DRIVER
LCD DISPLAY
AC IN
ADAPTER
12V/3A
BUTTON BATTERY
PCF85163NC
CLOCK
LDO AS2930
DC TO DC
MP1495
5V/1A
USB CHARGER
USB CHARGER
5V/1A
LIMIT
G524
5V
MCU_3.3V
POWER_EN
P12V
LDO AD1117_5V
P5V
LDO D1117_3.3
P3.3V
HT1621 B
DC TO DC
MP1470
BT2301
LED LIGHT
BUZZ
32.768KHz
32.768KHz
8MHz
SN74LV1G04
12.288MHz
JK5
JK4
MCU UPDATE
BLUETOOTH UPDATE

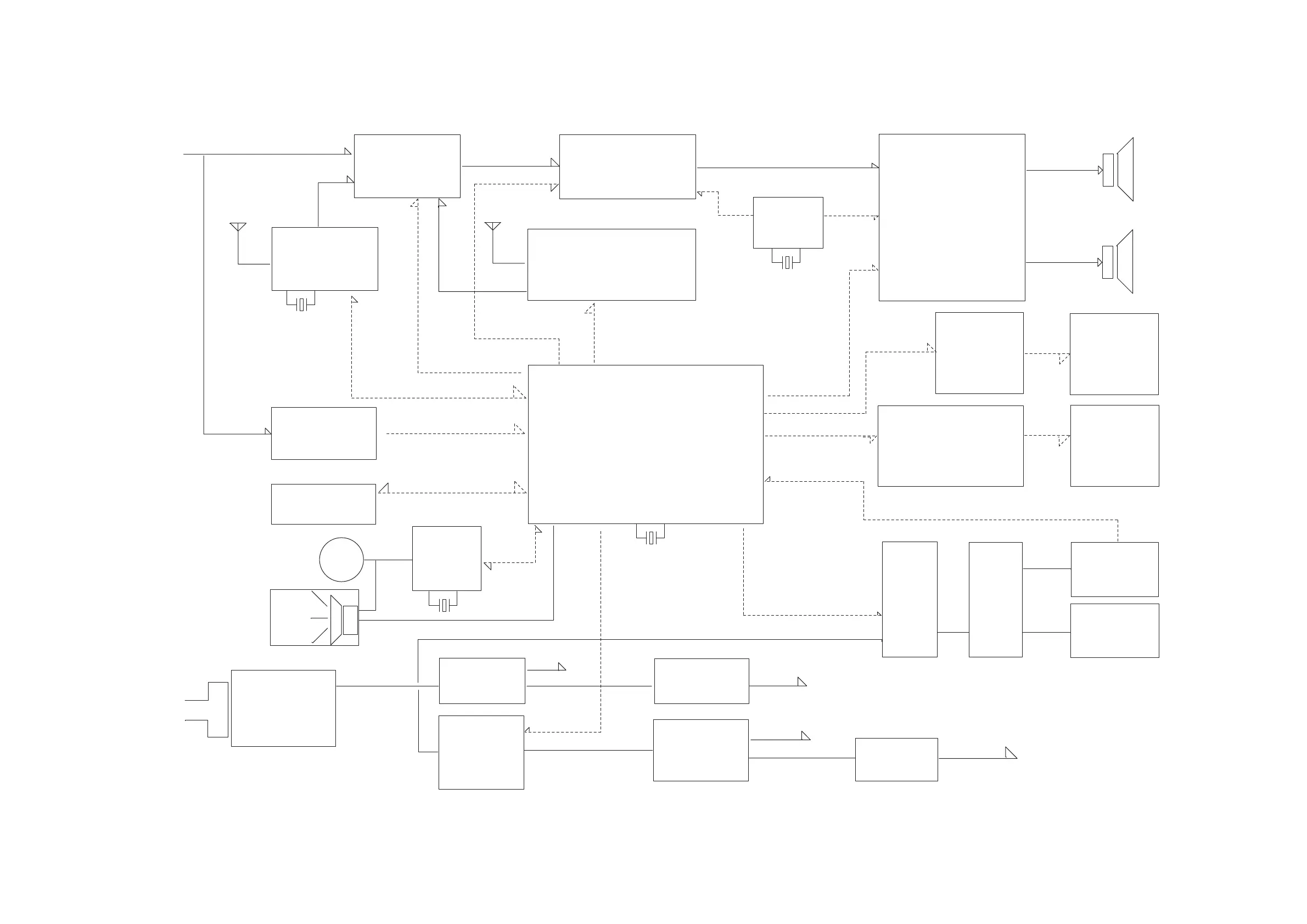

SET BLOCK DIAGRAM
