L75ms Owners Manual | Rev1.0 20220201 | Part No. 620-0595-001 | JBL.com/Specialty-Audio/
Pg 5

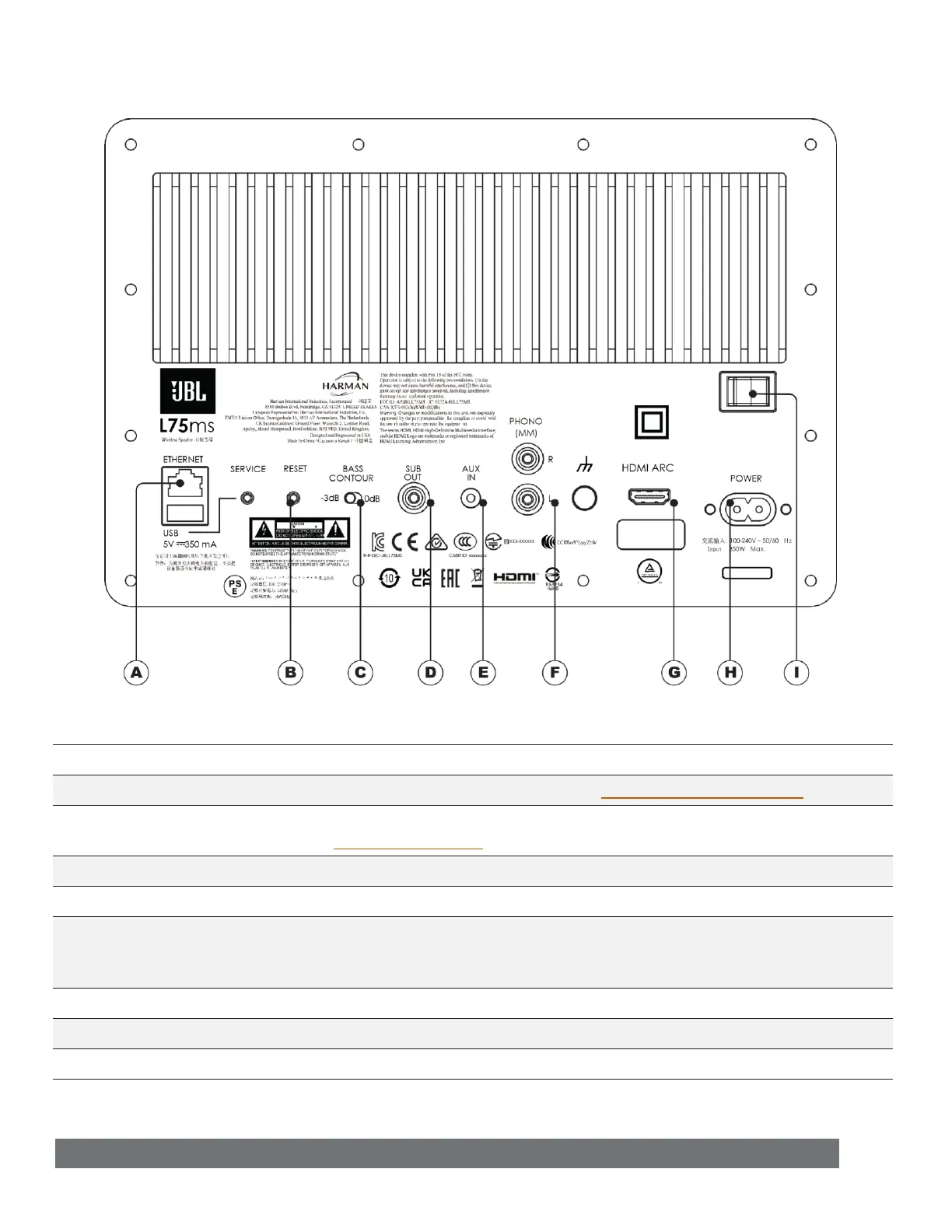

Rear Panel Connections
NOTE: Connections not noted here are for service use only and have no operation for regular use.
A
Ethernet RJ-45 10/100bit
B
Reset Resets L75ms to Factory Defaults. Refer to Restoring Factory Defaults for details.
C
Bass Contour
Use to adjust for bas compensation based on nearness to boundaries.
Refer to Speaker Placement for details.
D
Sub Out Single RCA - Connect to Powered Sub with LFE input
E
Aux In 3.5mm (1/8") TRS Stereo Analog
F
Phono In (MM)
RCA Stereo for Moving Magnet (MM) Phono Cartridge with Ground connection.
Note:
This input is congured for the gain required for a turntable and is not
intended for analog line level outputs.
G
HDMI ARC Standard HDMI with ARC for use TV ARC Input. Only accepts 2ch PCM signals
H
AC Power Connect with supplied power cord.
I
Main Power Switch Ensure switch is on O position while connecting or disconnecting sources.
