CABLES AND CONNECTORS

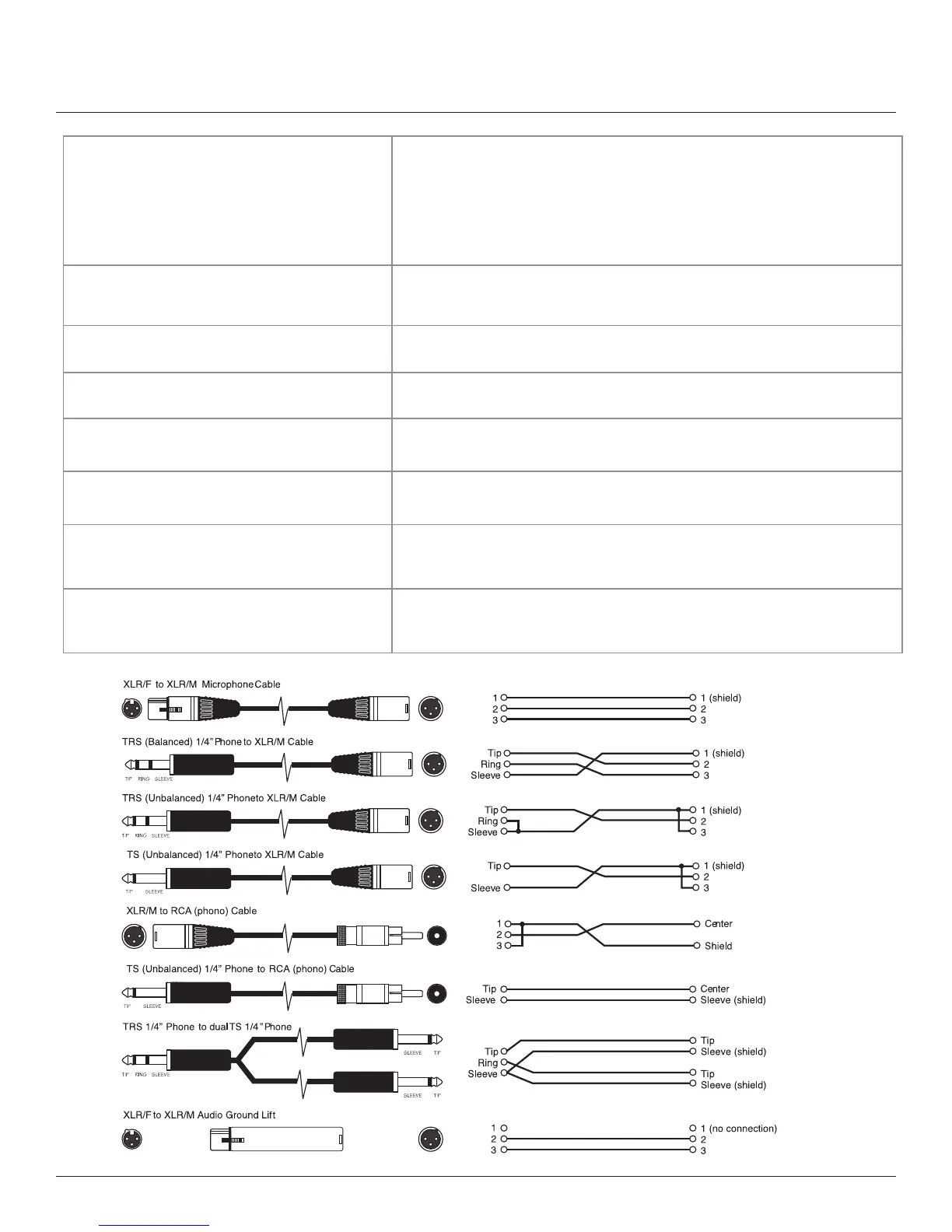

XLR/F to XLR/M Microphone Cable The standard cable for interconnection of microphone and line
level signal in professional audio systems.
• Microphone to mixer
• Microphone to PRX600 direct input
• Professional audio mixer to PRX600
• Daisy chaining PRX600 speakers
TRS (balanced) 1/4 inch phone jack
to XLR/M
For connecting balanced devices with 1/4 inch phone and maybe
used interchangeably.
TRS (unbalanced) 1/4 inch
phone jack to XLR/M
For connections of instruments with unbalanced outputs to balanced
XLR inputs.
TS (unbalanced) 1/4 inch phone jack
to XLR/M
This cable is electrically identical to TRS (unbalanced) 1/4 inch
phone and maybe used interchangeably.
XLR/M to RCA (phono) cable
Connects consumer audio products and some DJ mixer outputs to
professional audio equipment inputs.
TRS 1/4 inch phone jack to dual 1/4
inch phone jack
Splits a stereo output into separate left/right signals.
TRS 1/4 inch phone jack to dual 1/4
inch phone jack
Change to a TRS mini-phone jack to connect to the output of a portable.
MP3/CD – player and computer sound cards to a mixer or two PRX600
speakers for stereo performance.
XLR/F to XLR/M audio ground lift
Use only with balanced in and outputs
30
