JBL SIMPLY CINEMA ESC200 User Manual

Rear

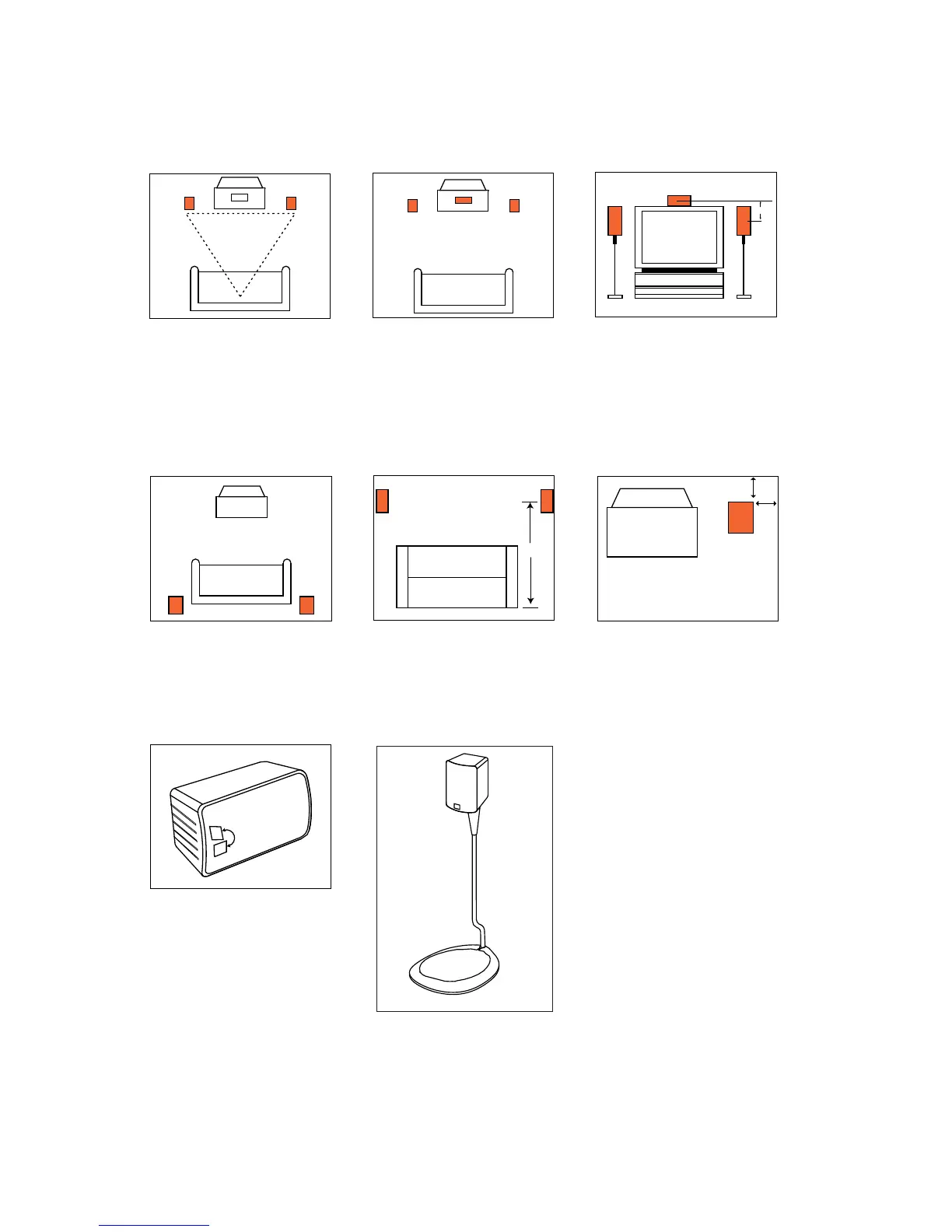

one.Speaker Placement
Front
Center
0-2 ft.
Place the center speaker
even with the left and
right speakers, or
slightly behind.
Place all three front
speakers at approximately
the same height. (Height of
ears preferable.)
5
- 6 ft.
On optional stands.
Part No. FS10/20.
6"
6"
Rotating logo. Pull out
gently and turn.
Optimum subwoofer place-
ment, positioned vertically
or horizontally.
Subwoofer

JBL SIMPLY CINEMA ESC200 Specifications

Satellite Speakers

power handling (RMS)	20 watts
frequency response	120Hz – 20kHz
sensitivity (1 watt/1 meter)	87dB
nominal impedance	8 ohms
woofer size	3 inches
tweeter size	1 inch
dimensions (HxWxD)	4-1/16 x 7-1/2 x 7-3/8 inches

Subwoofer

power handling (RMS)	60 watts
frequency response	35Hz – 200Hz
sensitivity (1 watt/1 meter)	90dB
nominal impedance	6 ohms
woofer size	6-1/2 inches
dimensions (HxWxD)	7-3/4 x 13-7/8 x 17-3/4 inches

Processor Amplifier

total maximum amplifier output	100 watts
dimensions (HxWxD)	2-11/16 x 13-1/2 x 9 inches
