JBL SIMPLY CINEMA ESC200 User Manual

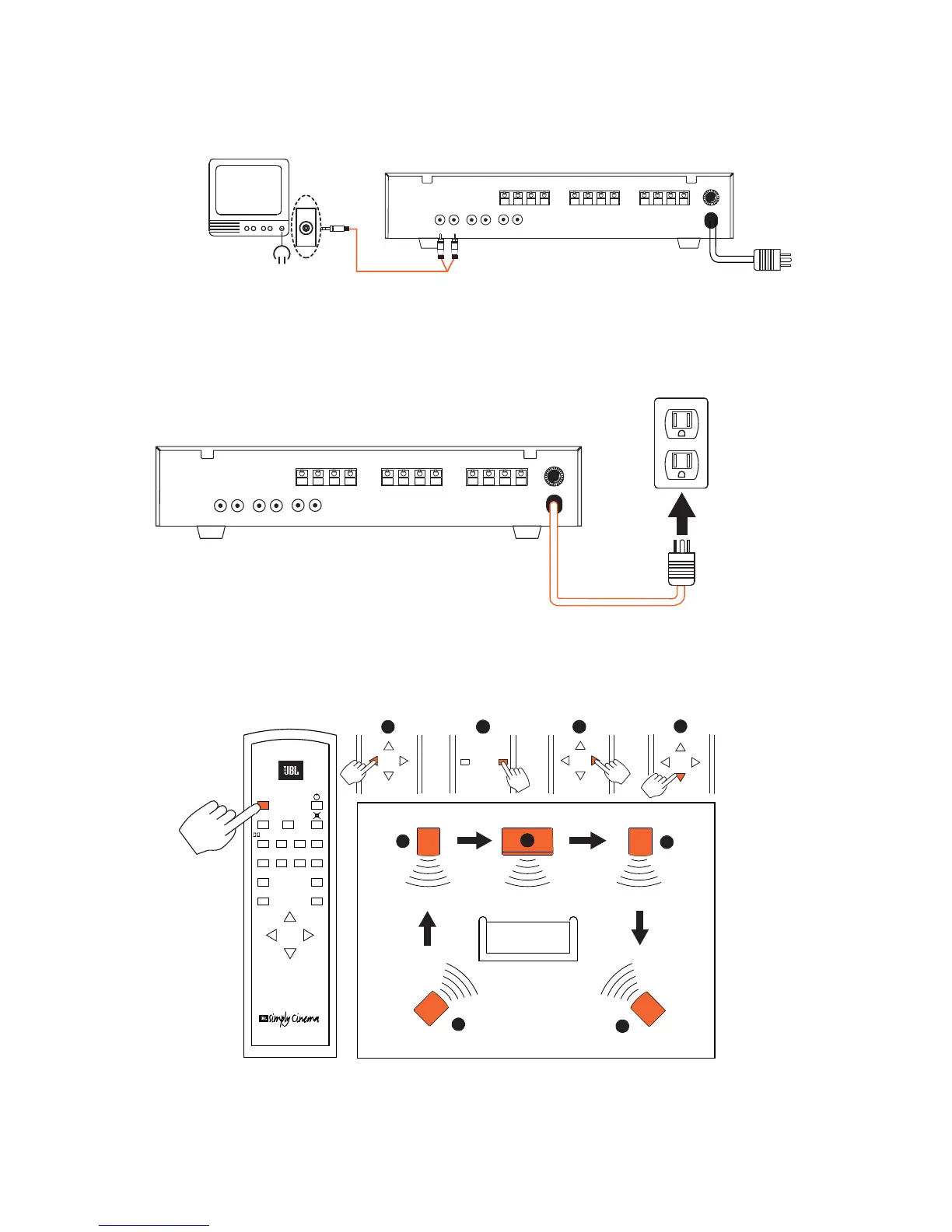

four.Source Connection (Headphone)
FUSE
FRONT SPEAKERS
RIGHT LEFT
REAR SPEAKERS
SPEAKER IMPEDANCE: 8
RIGHT LEFT SUBWOOFER
CENTER
SPEAKER 3A
– +– +– +– +– +– +
Stereo TV
with
Headphone
Output
Only
OUTPUT 1/2
LEFT RIGHT
INPUT 2
LEFT RIGHT
INPUT 1
LEFT RIGHT
five.Plug-In
FUSE
FRONT SPEAKERS
RIGHT LEFT
REAR SPEAKERS
SPEAKER IMPEDANCE: 8
RIGHT LEFT SUBWOOFER
CENTER
SPEAKER 3A
AC 120V
60Hz
– +– +– +– +– +– +
OUTPUT 1/2
LEFT RIGHT
INPUT 2
LEFT RIGHT
INPUT 1
LEFT RIGHT
six.Test
1
1
22
22
3
3
4
4
4
FRONT
REAR
LEFT
RIGHT
CENTER
– +
FRONT
REAR
LEFT RIGHT
FRONT
REAR
LEFT RIGHT
TEST
BOOST
INPUT 1/2
PRO
CONCERT
CENTER
VOLUME
FRONT
REAR
LEFT
RIGHT
HALL STEREO
–
BASS
BASS
TREBLE
–
–
–
++
+
+
ESC200
TM

JBL SIMPLY CINEMA ESC200 Specifications

Satellite Speakers

power handling (RMS)	20 watts
frequency response	120Hz – 20kHz
sensitivity (1 watt/1 meter)	87dB
nominal impedance	8 ohms
woofer size	3 inches
tweeter size	1 inch
dimensions (HxWxD)	4-1/16 x 7-1/2 x 7-3/8 inches

Subwoofer

power handling (RMS)	60 watts
frequency response	35Hz – 200Hz
sensitivity (1 watt/1 meter)	90dB
nominal impedance	6 ohms
woofer size	6-1/2 inches
dimensions (HxWxD)	7-3/4 x 13-7/8 x 17-3/4 inches

Processor Amplifier

total maximum amplifier output	100 watts
dimensions (HxWxD)	2-11/16 x 13-1/2 x 9 inches
