JBL VRX900 User Manual

13
INTRODUCTION TO THE VRX-AF
The VRX-AF is an array frame designed to be used for suspension of the VRX932LA and VRX918S
loudspeaker systems. The optional array frame kit includes the following items:
• 1 x center frame
• 2 x side arms
• 4 x quick release pins
• 2 x drop levers
• 2 x 3/8˝ shackles
Working Load Limit
The VRX-AF, VRX932LA-AF, and VRX-SMAF array frames have been precisely engineered to work together
with the VRX line of speakers as a system. The working load limit depends upon the configuration of array
frame and speakers being suspended. Please refer to the "DEPLOYING THE SYSTEM" section of this user
guide for maximum allowable load limits when using the VRX-AF, VRX-SMAF or VRX932LA-AF frame.
Use of the array frames in any manner other than as described in this manual could result in
damage to the frame and pose a risk of injury or death.
51 mm
(2.0 in)
292 mm
(11.5 in)
117mm
(4.6 in)
610 mm
(24.0 in)
13 mm
(0.5 in)
10 mm
(0.4 in)
25 mm
(1.0 in)
38 mm
(1.5 in)
25 mm
(1.0 in)
65 mm
(2.5 in)
65 mm
(2.5 in)
65 mm
(2.5 in)
65 mm
(2.5 in)
330 mm
(13.0 in)
445 mm
(17.5 in)
635 mm
(25.0 in)
51
(2.0)
25
(1.0)
65
(2.5)
65
(2.5)
65
(2.5)
65
(2.5)
445
(17.5)
445
(17.5)
330
(13.0)
13
(0.5)
25
(1.0)
38
(1.5)
292
(11.5)
117
(4.6)
10
(0.4)
610
(24.0)

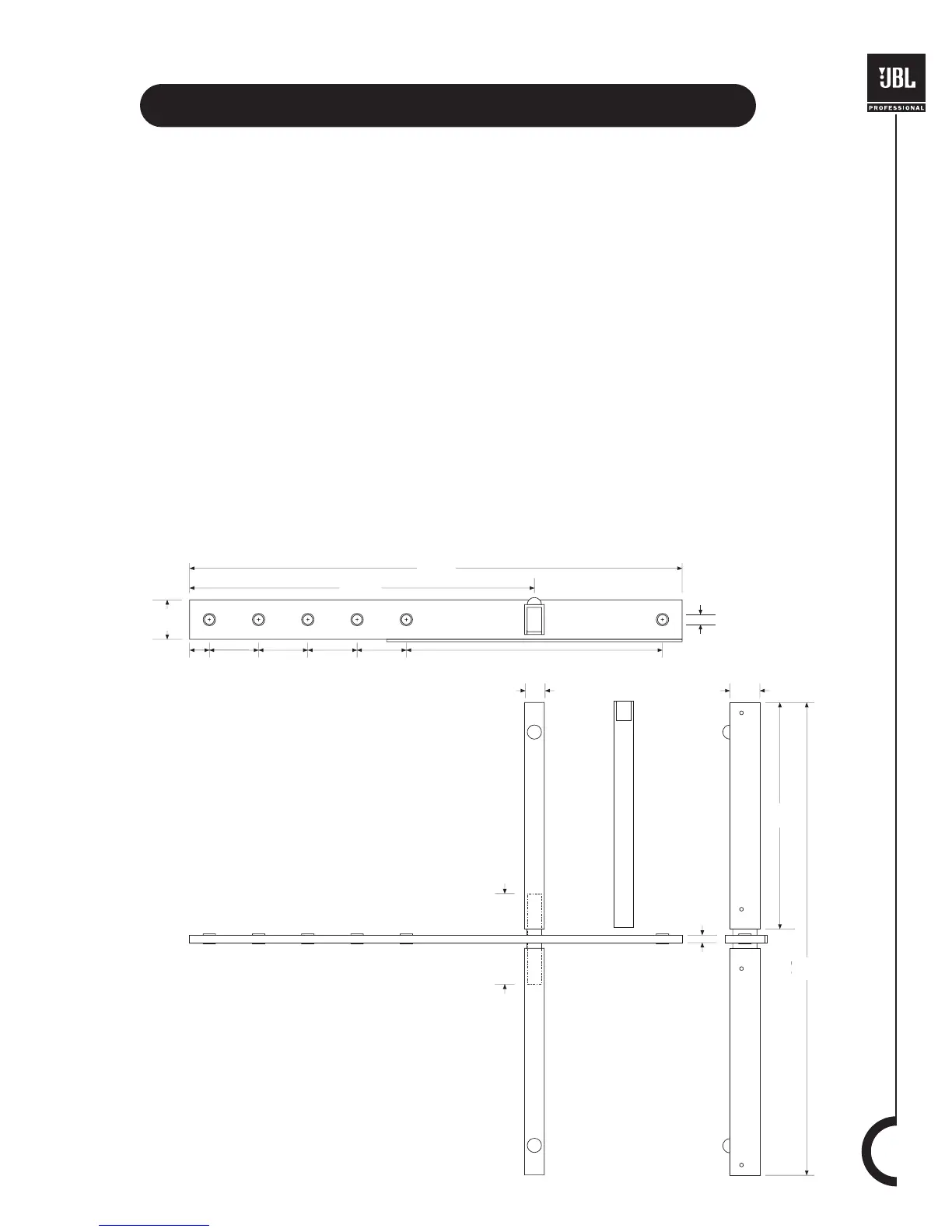

Dimensions in mm (inches)
Dimensional Drawings for VRX-AF

JBL VRX900 Specifications

General

Crossover Modes	Bi-amp
LF Driver	12"
Nominal Impedance	8 ohms
Finish	Black
Input Connectors	Neutrik NL4
